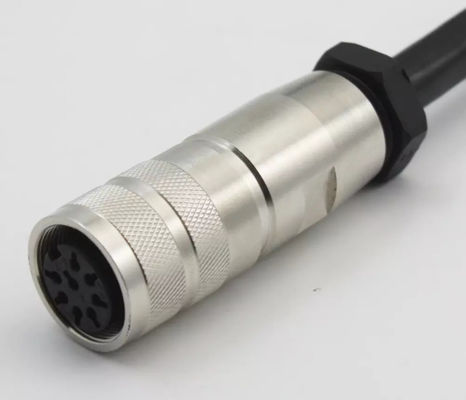

1to100meter Waterproof Electrical Cable Ip67 Low Temperature Resistance

1to100meter Waterproof Electrical Cable Ip67 Low Temperature Resistance
1to100meter Waterproof Electrical Cable Ip67 Low Temperature Resistance 1to100meter Waterproof Electrical Cable Ip67 Low Temperature Resistance 1to100meter Waterproof Electrical Cable Ip67 Low Temperature Resistance

Large Image :  1to100meter Waterproof Electrical Cable Ip67 Low Temperature Resistance

Product Details:
Place of Origin: China
Brand Name: ritian
Certification: UL CE ROSH
Model Number: AISG/M-DB15-XM
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Plastic Bag Packing
Delivery Time: 10-15 days
Supply Ability: 10000 Unit/Units per Month
Detailed Product Description
Model Number: RET-RCU-AISG-DB15 Type: Circular Connector
Gender: Female To Male Connector Type: Circular Connectors
Contact Count: 2/3/4/5/6/8 Protection Level: IP67
High Light:

ret control cable

,

waterproof connector cable

Model: AISG/M-DB15-XM

ZTE RRU to RCU RET Control Cable

AISG Female to DB15 Male Connector

Cabe Length: 1~100meter

General Characteristics
Number of contact 2 3DIN 4 5 5DIN 6DIN 7 7DIN 8DIN 12 14 19 24
Locking system screw M16*0.75
Termination solder, moulded on cable
Wire guage in mm² max 0.75 max 0.25 0.14
Wire guage in AWG max 20 max 24 26
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Electrical Characteristics
Rated voltage 250V 60V 250V 125V 60V
Test voltage 1750V 550V 1750V 910V 550V
Rated current(40℃) 7A 6A 5A 3A 1A
Pollution degree III
Contact resistance ≤5mΩ ≤3mΩ
Insulation resistance ≥10³MΩ
Materials
Pin contact CuZn
Socket contact CuSn
contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn



Aisg Cable assembly
With a rugged metal housing and environmental protection rating of IP67 when mated, this robust DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

High quality AISG equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
