| Max Withstand Volt: | AC 500 Volts | Pin: | 7pin, 9pin,15pin,25pin,37pin,50pin |
|---|---|---|---|
| Electrical Character: | PBT UL94V-0 | Housing: | ABS UL94V-0 |
| Model: | D Sub 25B | Contact Material: | Copper Alloy |
| Waterproof Class: | IP67 | Insulation Resistance: | 3000MΩ Min/500V DC |
| High Light: | amp d sub connectors,panel mount d sub connector |
||

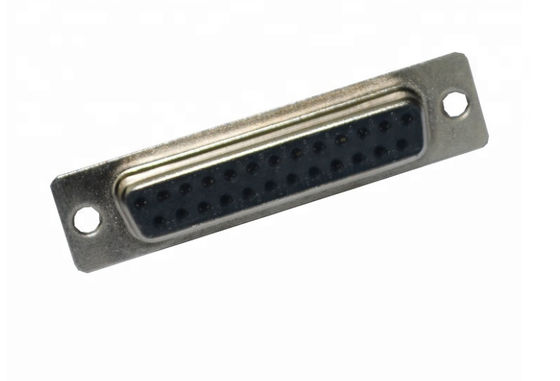

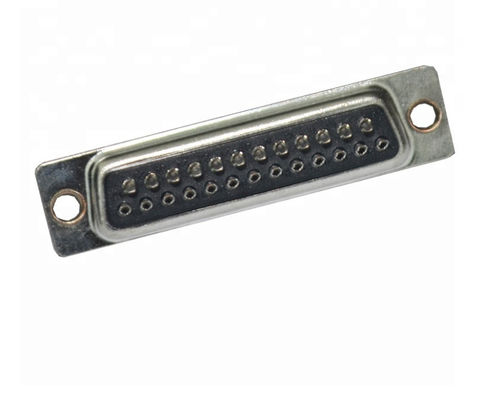

Female25 D Sub Solder Connector , Black D Sub Panel Mount Connector
Product Features
1. Designed according to lEC 807-3(DIN 41 652)and Mil-C-24308
2. D-Sub connectors are worldwide known as standardized V/Cinterfaces for several applications e.g. serial bus connectionfor RS232,RS485 used for Profibus,CanBus and others.
3. lndirect mating system lnternational approvals such as UL and CSA availablelntegrated acccessories
4. 3 different connector types available:vertical,angled and cable connectors
Technical Specifications:
| Item | D sub waterproof connector |
| Feature: | accompliance with IEC60807-2 waterproof series, With locking and with screen contact type |
| flexiable installation way, Various locking elements and cable clamps and outlet boxes | |
| Series inclusion: | Divide into A,B,C ,E mode according to the shell number, contacting elements include mixture and signal types. |
| Base material: | PBT exterior shell: PBT or PA |
| exterior shell and surface treatment: | Front nickel plated, thick tin plated |
| Contact: | Copper alloy, solderable wire, soldering plate, all gold plated or can be customized |
| Termination method | Flexible press-in, substrate welding, wire bonding, etc. |
| waterproof grade: | IP67, IP65 and can be customized |
| Main Technical parameters: | |
| Working Voltage: | 300V |
| Rated Current: | 30A/ 40A |
| Pressure resistance: | 1000V |
| Insulation resistance | ≥2000MΩ |
| working temperature: | -45C°-125C° |
| Contact resistance: | ≤0.004Ω |
| Flame retardant grade: | UL94V-0 |
| Life: | 500 times |
1. Audio / Video product:MP3, MP4, DVD, stereo system
2. Digital devices: digital camera, digital video
3. Remote control: Vehicle, rolling door, Home security products
4. Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
6. Security Products: Videophone, Monitor etc.
7. Toy: electronic toy etc.
8. Computer products: Camera, recording pen etc.
9. Fitness equipment: running machine, massage chair, timer etc.
10. Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.
