Flange DIN 8Pin AISG Connector Cable Panel Mounted M16 Cable Assembly With JST Connector

China Flange DIN 8Pin AISG Connector Cable Panel Mounted M16 Cable Assembly With JST Connector supplier
Flange DIN 8Pin AISG Connector Cable Panel Mounted M16 Cable Assembly With JST Connector supplier Flange DIN 8Pin AISG Connector Cable Panel Mounted M16 Cable Assembly With JST Connector supplier Flange DIN 8Pin AISG Connector Cable Panel Mounted M16 Cable Assembly With JST Connector supplier

Large Image :  Flange DIN 8Pin AISG Connector Cable Panel Mounted M16 Cable Assembly With JST Connector

Product Details:

Place of Origin: Guangdong, China
Brand Name: Ritian communication
Certification: UL CE ROHS
Model Number: M16 Circualr Connector

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Seal PE packing,one pieces packing in a bag then put in a box
Delivery Time: 1-2weeks
Supply Ability: 10000 Unit/Units per Month
Contact Now
Detailed Product Description

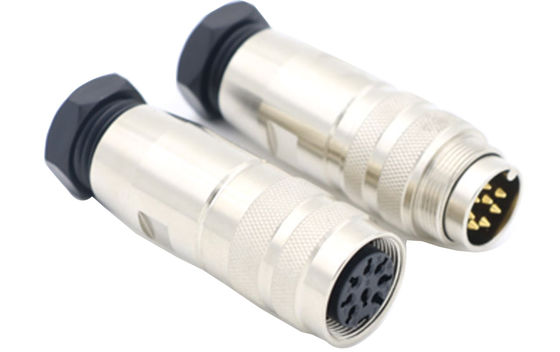

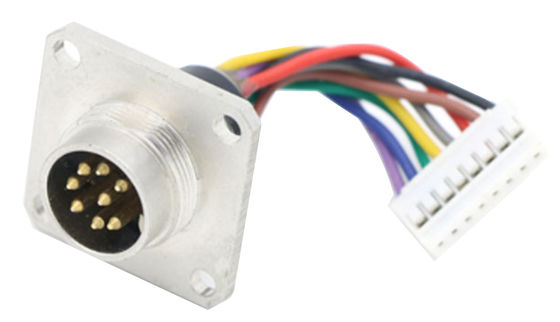

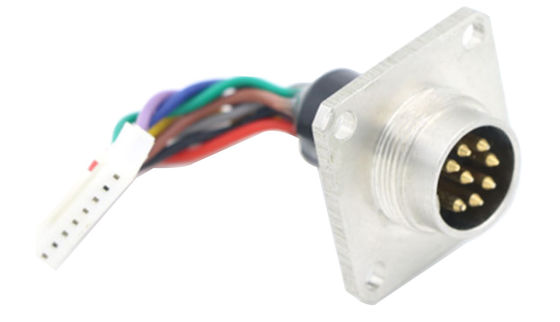

Flange DIN 8Pin AISG cable panel mount connector M16 cable assembly with JST connector



Characteristics of M16 Series

General Characteristics
Number of contact 2 3DIN 4 5 5DIN 6DIN 7 7DIN 8DIN 12 14 19 24
Locking system screw M16*0.75
Termination solder, moulded on cable
Wire guage in mm² max 0.75 max 0.25 0.14
Wire guage in AWG max 20 max 24 26
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Electrical Characteristics
Rated voltage 250V 60V 250V 125V 60V
Test voltage 1750V 550V 1750V 910V 550V
Rated current(40℃) 7A 6A 5A 3A 1A
Pollution degree III
Contact resistance ≤5mΩ ≤3mΩ
Insulation resistance ≥10³MΩ
Materials
Pin contact CuZn
Socket contact CuSn
contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn



OUr Services:

1.100% high quality, all failed parts get free warranty within 30 days after received.

2.Accept warranty upon customer requirement.

3.Repairs parts are available within 3 years; we will inform the EOL products to you from time to time

4.Unique designed package for you can be provided upon customer requirement.

5.Special feature and service can be provided upon requirement.
