IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating

Certification
China Dongguan sun Communication Technology Co., Ltd. certification
China Dongguan sun Communication Technology Co., Ltd. certification
Customer Reviews Thank you for the excellent solution. Good job!

—— Mohammad

Good quality, good price, good service Thank you very much to Excellent connectors!

—— Thiago Monzo

I'm Online Chat Now

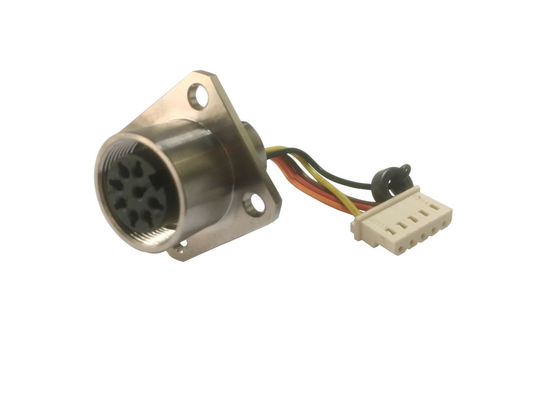

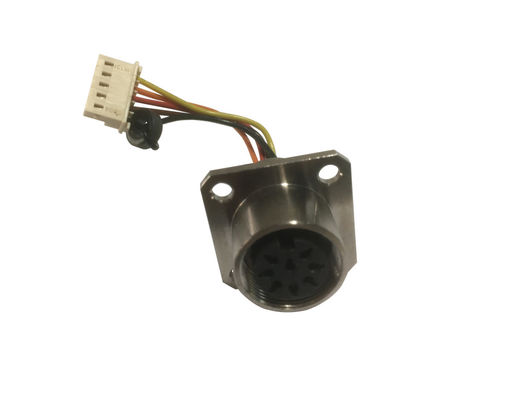

IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating

IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating
IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating

Large Image :  IP67 Waterproof 8Pin AISG Connector M16 Circualr Connector Brass With Nickel Plating

Product Details:
Place of Origin: Guangdong, China
Brand Name: Ritian communication
Certification: UL CE ROHS
Model Number: M16 Circualr Connector
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Seal PE packing,one pieces packing in a bag then put in a box
Delivery Time: 1-2weeks
Supply Ability: 10000 Unit/Units per Month
Detailed Product Description
Model Number: RET-AISG Type: Circular Connector
Gender: Male And Female Orientation: Straight
Contact Count: 2/3/4/5/6/8 Protection Level: IP67
High Light:

waterproof circular connectors

,

watertight cable connector

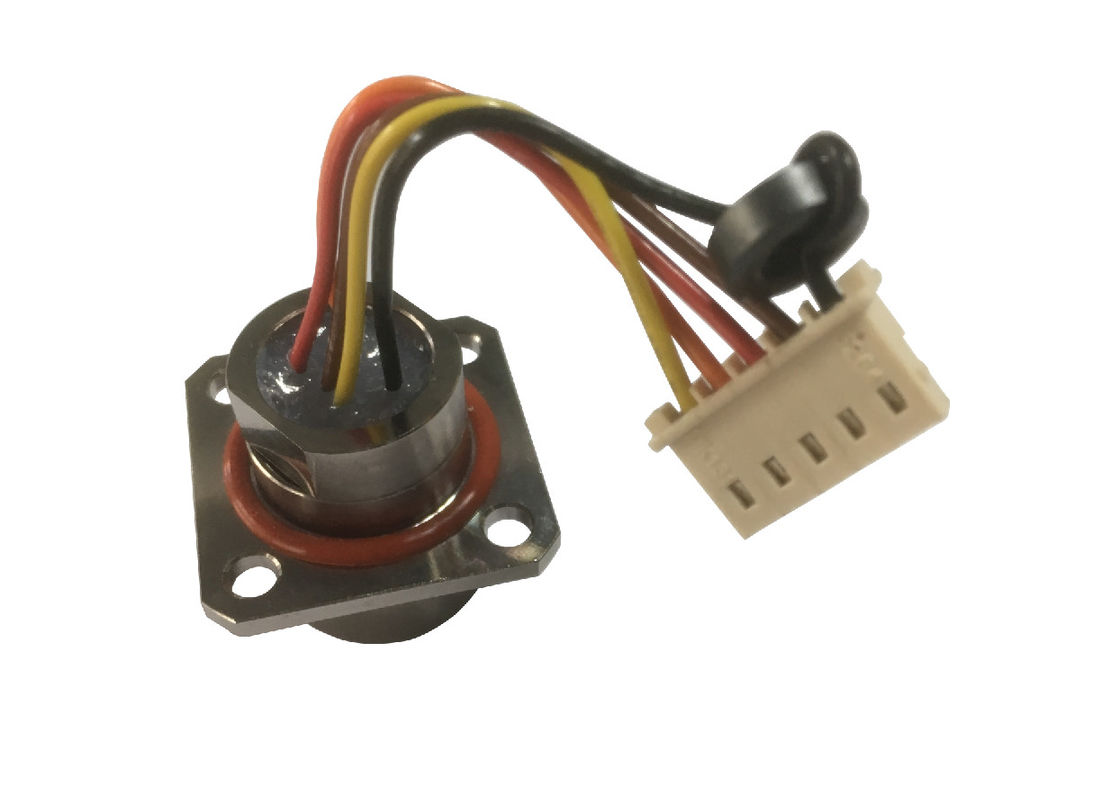

Flange DIN 8Pin AISG cable panel mount connector M16 cable assembly with JST connector



Characteristics of M16 Series

General Characteristics
Number of contact 2 3DIN 4 5 5DIN 6DIN 7 7DIN 8DIN 12 14 19 24
Locking system screw M16*0.75
Termination solder, moulded on cable
Wire guage in mm² max 0.75 max 0.25 0.14
Wire guage in AWG max 20 max 24 26
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Electrical Characteristics
Rated voltage 250V 60V 250V 125V 60V
Test voltage 1750V 550V 1750V 910V 550V
Rated current(40℃) 7A 6A 5A 3A 1A
Pollution degree III
Contact resistance ≤5mΩ ≤3mΩ
Insulation resistance ≥10³MΩ
Materials
Pin contact CuZn
Socket contact CuSn
contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn
