| Data Rate: | 100G | Product Name Dista: | Sc To Sc Fiber Jumper |
|---|---|---|---|
| Application: | FTTH | Temperature: | 0°C To 70°C |
| Wavelength: | 850nm | Power Dissipation: | <2.0W |
| Warranty: | 3 Years | Compatible: | Cisco , Huawei , Juniper |
| MODE: | Single Mode | Length: | 3m/5m/10m |
| Model: | SM/MM/OM3/om4 | Fiber Type: | SM/MM |
| Highlight: | sfp optical module,fiber optic sfp module |
||

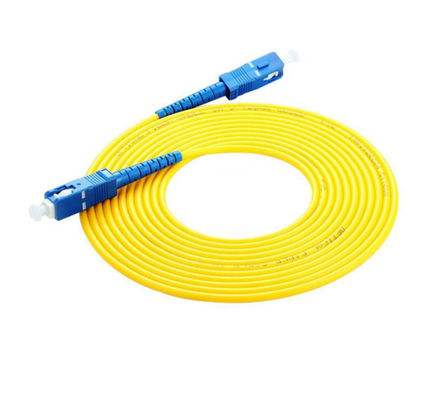

SC LC FC ST SFP Transceiver Moduleoptical / Fiber Patch Cord Jumper 3m/5m/10m
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Ordering options
1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH
