Product Details:
Payment & Shipping Terms:
|
| Max Withstand Volt: | AC 500 Volts | Pin: | Multi Pins |
|---|---|---|---|
| Electrical Character: | PBT UL94V-0 | Housing: | ABS UL94V-0 |
| Keywords: | 3M Scsi D-sub | Application: | PCB |
| Gender: | Female/ Male | Contact Resistsance: | 30mΩ Max |
| Insultation Resistance: | 3000MΩ Min/500V DC | Material: | PBT/Brass/Copper Alloy |
| High Light: | micro d sub connector,amp d sub connectors |
||

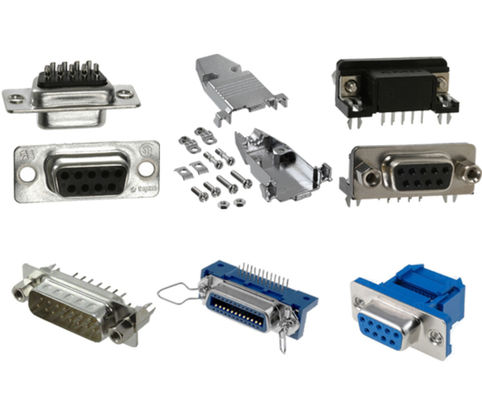

Flame Retardant Plug In Type 25 Pin Female Male D Sub Connector
Product Description
1. D-sub Commonly Known As Vga (Video Graphics Adapter) Interface.
2. D-sub is the Abbreviation of D-subminiature. It is a Standard of Interface Shape and Structure. It is an Analog Signal Interface. There Are Different Interface Numbers According to Needs. D-sub Contains Several Sub-categories, Such As DB25.
3. The First Letter D Means D-sub, and the Second Letter B Describes the Size of the Interface—corresponding to the Following Number (Number of Pins) (A=15 Pin , B=25 Pin , C=37 Pin , D=50 Pin , E=9 Pin ). Each Interface is Divided into Male ( Plug ) and Female ( Socket ).
Technical Specifications:
| Item | D sub waterproof connector |
| Feature: | accompliance with IEC60807-2 waterproof series, With locking and with screen contact type |
| flexiable installation way, Various locking elements and cable clamps and outlet boxes | |
| Series inclusion: | Divide into A,B,C ,E mode according to the shell number, contacting elements include mixture and signal types. |
| Base material: | PBT exterior shell: PBT or PA |
| exterior shell and surface treatment: | Front nickel plated, thick tin plated |
| Contact: | Copper alloy, solderable wire, soldering plate, all gold plated or can be customized |
| Termination method | Flexible press-in, substrate welding, wire bonding, etc. |
| waterproof grade: | IP67, IP65 and can be customized |
| Main Technical parameters: | |
| Working Voltage: | 300V |
| Rated Current: | 30A/ 40A |
| Pressure resistance: | 1000V |
| Insulation resistance | ≥2000MΩ |
| working temperature: | -45C°-125C° |
| Contact resistance: | ≤0.004Ω |
| Flame retardant grade: | UL94V-0 |
| Life: | 500 times |
1. Audio / Video product:MP3, MP4, DVD, stereo system
2. Digital devices: digital camera, digital video
3. Remote control: Vehicle, rolling door, Home security products
4. Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
5.Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
6. Security Products: Videophone, Monitor etc.
7. Toy: electronic toy etc.
8. Computer products: Camera, recording pen etc.
9. Fitness equipment: running machine, massage chair, timer etc.
10. Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.
