| Place Of Origin: | Guangdong, China | Brand Name: | Sun Communication |
|---|---|---|---|
| Type: | 4.3-10 Mini DIN | Application: | RF |
| Gender: | Male | Impedance: | 50 Ohm |
| Frequency Range: | DC~18GHz | Voltage Rating: | 500 V(rms) |
| Dielectric Withstan: | >1500V | Center Contact Res: | <1.0mΩ |
| Insulation Resistance: | >5000MΩ | VSWR: | ≤1.08 (0-2.2GHz); ≤1.1 |
| Temperature Range: | -55 ℃~+165 ℃ | Durability: | ≥ 500 Cycles |
| Insertion Loss: | ≤0.12dB (@2200MHz) | PIM: | ≤-160dBc |
| High Light: | sma rf connector,right angle rf connector |
||

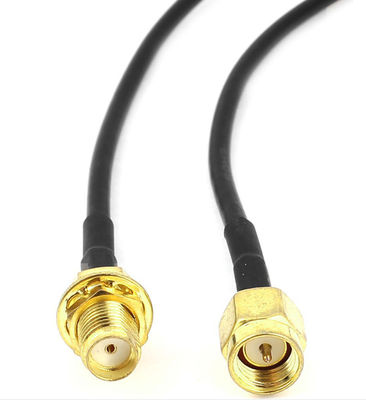

Ultra Low Profile Cable N Male to SMA male BNC coaxial Cable RF Connector
RF Coaxial Cable, also called coax cable, is known as an electrical cable to transmit radio frequency signals from one point to another.
Coaxial cables are designed with a center conductor( a copper wire that electrical signals travels through), an insulation layer (a dielectric that provides insulation), a braided copper mesh to (the Outer conductor that shields it from electromagnetic interference), and the external layer (a plastic coating which protects it from damage)
The benefits of using high-quality materials: it is durable and reaches a much higher transmission speed of 10Mbps (megabits per second).
|
Electrical Specifications
|
|
|
Impedance
|
50 ohm
|
|
Frequency
|
0-11GHz
|
|
≤1.08 (0-2.2GHz); ≤1.1 (0-3GHz)
|
≤1.08 (0-2.2GHz); ≤1.1 (0-3GHz)
|
|
Dielectric Strength
|
≥2500V RMS, at sea level
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
Insertion Loss
|
≤0.12dB (@2200MHz)
|
|
Center contact resistance
|
≤1.0mΩ
|
|
Outer contact resistance
|
≤0.25mΩ
|
|
PIM (900MHz, 1800MHz 2×20W)
|
≤-155dBc
|
|
Mechanical Feature
|
|
|
Mating cycles
|
≥500 times
|
|
Termination cable retention
|
≥500N
|
|
Apply with the electric cable
|
1/2” low loss Feed Cable
|
|
Environmental parameters
|
|
|
Temperature range
|
-40℃ to +85℃
|
|
Environmental standards
|
RoHs
|
