Model: | AISG RET Control Cable | Gender: | Male Female |
---|---|---|---|
Conductor Material: | Copper | Insulation Material: | Rubber |
Jacket: | PVC | Material: | 100% PVC Material Quality. |
IP Rating: | IP68 , IP67 | Application: | Telecommunication,RET Remote Electrical Tilt System |
High Light: | IP67 AISG Connector Cable,8 Pin AISG RET Control Cable,RCU AISG RET Control Cable |
RRU RCU AISG connector Cable 2 way splitter IP67 8 pin AISG RET Control Cable assembly
Cable length 3meters, 5m, 10m customized, accept male-Female, female -female, female to male socket head etc.
AISG RET Control Cable
AISG and RoHS compliant
Feeds data and power to RET system components
The AISG Series control cables are used to feed data and power from the controller to the RET remote electrical tilt system

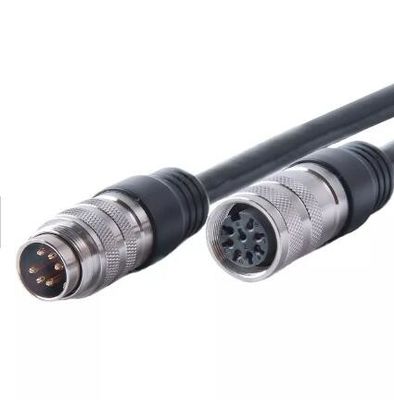

RET control cable AISG male to female 8 pin jumper cable
Description.
RET control cables are used to feed data and power from the controller to the remote electrical downtilt (RET) system components. The control cables are available in various lengths. Each cable is terminated with male and female connectors.
Mechanical Specifications.
AISG connector A: 8 pin male
AISG connector B: 8 pin female
Data Conductor Type: 24 AWG
Power Conductor Type: 18 AWG
Withstand voltage: 300VDC
Prouduct | M12 D-code 4Pin female to open cable |
Model | M12 connector |
Application | Automated device, Intelligent robot |
Feature |
(1) M12 4Pin female connector, A-code (4) Shielded: Braid (5) Cable length: 2m, Customized |
Electrical performance | (1) Rated current:4A (2) Rated voltage:60V (3) Insulation resistence:>30.5MΩ/KM (4) Test voltage:2000V (5) maximum resistence:<57Ω/KM |
Environment temperature | Ambient temperature for operation: -25…80℃ |
Waterproof Rating | IP67, IP68 |
Standards |
IEC 61076-2-101 IEC 61076-2-104 |
Certificate | RoHS |
Shell material: | copper/ Zinc |
Core material: | PA66 |
overmold material | PVC/ TPU |
Terminal material | phosphor copper |
Temperature | -40-80c |
insulation resistance: | ≥100 MΩ |
contact resistance: | <=10 MΩ |
Degree of protection | IP67/ IP68 |
Mating cycle | >500 mating cycles |
cable diameter | φ4-φ8 |
termination | screw |
shell color | black |
