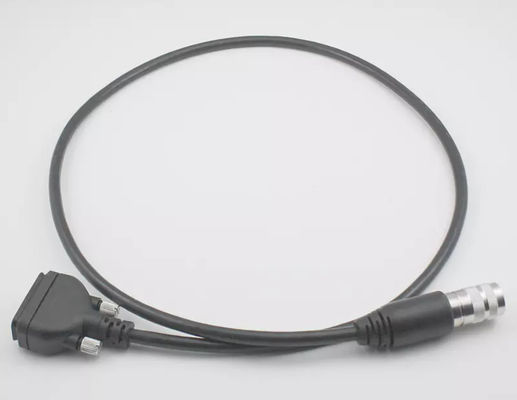

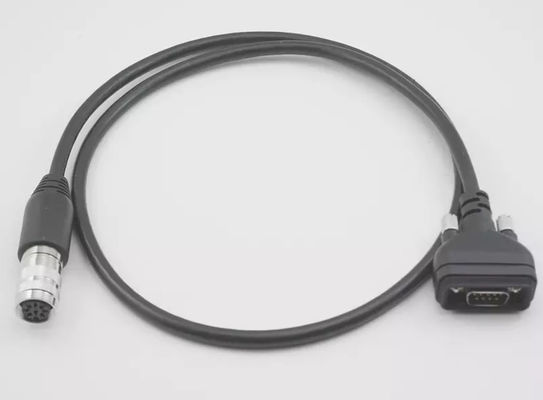

Over Mold Injection Molding Internal Strain Relief Aisg Ret Cable

Over Mold Injection Molding  Internal Strain Relief Aisg Ret Cable
Over Mold Injection Molding  Internal Strain Relief Aisg Ret Cable Over Mold Injection Molding  Internal Strain Relief Aisg Ret Cable Over Mold Injection Molding  Internal Strain Relief Aisg Ret Cable Over Mold Injection Molding  Internal Strain Relief Aisg Ret Cable Over Mold Injection Molding  Internal Strain Relief Aisg Ret Cable

Large Image :  Over Mold Injection Molding Internal Strain Relief Aisg Ret Cable

Product Details:
Place of Origin: China
Brand Name: Ritian
Certification: UL CE ROHS
Model Number: AISG/F-DB9/M
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Packaging Details Plastic Bag Packing
Delivery Time: 10-15 days
Supply Ability: 10000 Unit/Units per Month
Detailed Product Description
Model Number: RET-AISG Type: Circular Connector
Gender: Female To Male Connector Type: Circular Connectors
Description: AISG M16 Connector Finish: Nickel Plated
High Light:

waterproof connector cable

,

waterproof electrical cable

Over Mold Injection Molding Internal Strain Relief Aisg Ret Cable



Electrical Specifications:



Protocol AISG 1.1 | AISG 2.0



Voltage, maximum 300 V



Mechanical Specifications:



AISG Connector A 8-pin DIN Female



AISG Connector A Body Style Straight



AISG Connector A Standard IEC 60130-9



Connector B 9-pin D-sub Male



Data Conductor Type 0.20 mm² (24 AWG) twisted pair



Power Conductor Type 0.82 mm² (18 AWG) stranded



Color Black



Environmental Specifications:



Climatic Sequence Test Method IEC 60068-2-14



Corrosion Test Method IEC 60068-2-11, Test Condition Ka



Operating Temperature -40 °C to +70 °C (-40 °F to +158 °F)



Relative Humidity Up to 100%



UV Resistance Test Method IEC 60068-2-5, Test Condition B



Ingress Protection Test Method IEC 60529:2001, IP67



Dimensions:



Length 1.0 m~100m *



Diameter Over Jacket 8.0 mm



Feeds data and power to RET system components

AISG and RoHS compliant

The ATCB Series control cables are used to feed data and power from the controller to the RET (remote electrical tilt) system components.

These cables are available in various lengths and are terminated with male and female connectors which allow them to be linked together to meet a required length.

Cable Length: 0.5 meter

Cable Length: 1.0 meter

Cable Length: 2.0 meter

Cable Length: 3.0 meter

Cable Length: 5.0 meter

Cable Length: 6.0 meter

Cable Length: 10.0 meter

Cable Length: 15.0 meter

Cable Length: 20.0 meter

Cable Length: 30.0 meter

Cable Length: 50.0 meter

Cable Length: 60.0 meter

Cable Length: 70.0 meter

Cable Length: 80.0 meter

Cable Length: 90.0 meter

Cable Length: 100.0 meter



Aisg Cable assembly
With a rugged metal housing and environmental protection rating of IP67 when mated, this robust DIN connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

High quality AISG equivalent as Binder eries 423, 723 and 425 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
