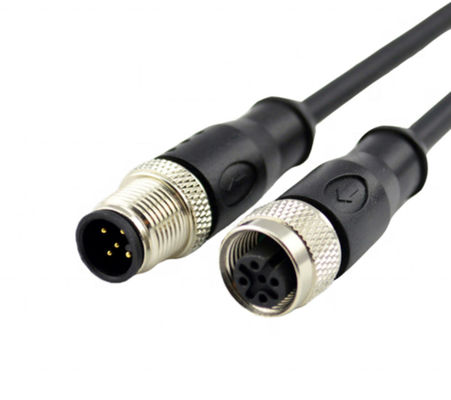

Ip67 Shielding M12 Circular Connector 8pin Aviation Plug Wire Joint Type

Ip67 Shielding M12 Circular Connector 8pin Aviation Plug Wire Joint Type
Ip67 Shielding M12 Circular Connector 8pin Aviation Plug Wire Joint Type Ip67 Shielding M12 Circular Connector 8pin Aviation Plug Wire Joint Type Ip67 Shielding M12 Circular Connector 8pin Aviation Plug Wire Joint Type

Large Image :  Ip67 Shielding M12 Circular Connector 8pin Aviation Plug Wire Joint Type

Product Details:
Place of Origin: Guangdong, China
Brand Name: Ritian communication
Certification: UL CE ROHS
Model Number: M12 conn-012
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Individual part with transparent PE bag with label
Delivery Time: 5-7 days
Supply Ability: 10000 Unit/Units per Month
Detailed Product Description
Standard: IEC 61076-2-104 Contacts: 3pins, 4pins, 5pins, 8pins,
Certificate: IP67 IP68 Jacket: PVC / PUR
High Light:

m12 plug connector

,

m12 sensor connector

IP67IP68 waterproof molding connector male female 3 4 5 8 pin M12 plug socket



• M12 Circular connector according to IEC 61076-2-101
• M12 circular connector with M12*1.0 screw locking equivalent to Binder, Phoenix, Lumburger automation...
• Waterproof rating is IP67, protected from dust and water during immersion, resistant to many oils and chemical



Product Description

Available Description:
Shielded is available
Hexagon screw is available
Stainless steel screw is available
Anti-vibration locking screw design
IP67/IP68, RoHS, REACH, UL certificate



Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 3pins, 4pins, 5pins, 8pins,12pins are available
Gender: Male / Female
Connector Design: Cable plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25℃~+85℃



Material:
Connector Body: PA66+GF
Contacts: Brass / Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM



Electrical data:
Rated Current: 4A / 2A / 1.5A
Rated Voltage: 250V / 60V / 30V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ



Quality Control

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked QC
• 100% testing for open circuit and short circuit and 100% smooth operation before shipping
• Insulation resistance: 10M OHM
• Hi-pot: DC 300V 10ms
