| Place Of Origin: | Guangdong, China | Brand Name: | Sun Communication |
|---|---|---|---|
| Type: | N | Application: | RF |
| Gender: | Female | Impedance: | 50 Ohm |
| Frequency Range: | DC~18GHz | Voltage Rating: | 500 V(rms) |
| Dielectric Withstan: | >1500V | Center Contact Res: | <1.0mΩ |
| Insulation Resistance:: | >5000MΩ | VSWR: | <1.35 |
| Temperature Range: | -55 ℃~+155 ℃ | Durability: | ≥ 500 Cycles |
| High Light: | sma rf connector,right angle rf connector |
||

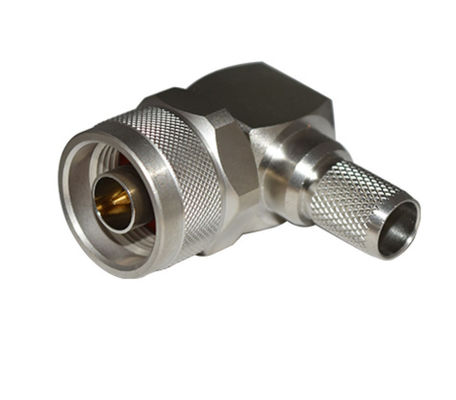

50ohm N Type Male Right Angle Crimp RF connector for LMR-400 Cable
Materials and plating
| Description | Materials | Plating |
| Body | BRASS C3604 | Nickel Plating |
| Contact pin | BRASS C3604 | Gold Plating |
| Insulator | PTFE ASTM-D-1710 | N/A |
Specification
| Electrical parameters | |
| Impedance | 50 Ohm |
| Frequency range | DC~6GHz |
| Voltage rating | 500 V(rms) |
| Dielectric withstanding voltage | >1500V |
| Center contact resistance | <1.0mΩ |
| Outer contact resistance | <0.2mΩ |
| Insulation resistance | >5000MΩ |
| Insertion loss | <0.1 sqrt(f(GHz)) dB |
| VSWR | <1.30 |
| Mechanical parameters | |
| Center contact retention force | >6 LBS |
| Coupling test torque | 1.70 Nm |
| Recommended torque | 0.7 Nm to 1.10 Nm |
| Durability | >500 cycles |
| Environmental parameters | |
| Temperature range | -55 ℃~+155 ℃ |
| Thermal shock | MIL-STD-202, Meth. 107, Cond. B |
| Corrosion | MIL-STD-202, Meth. 101, Cond. B |
| Vibration | MIL-STD-202, Meth. 204, Cond. B |
| Shock | MIL-STD-202, Meth. 213, Cond. I |
| Interface | |
| According to | IEC 60169-16, MIL-PRF-39012, CECC 22210 |
