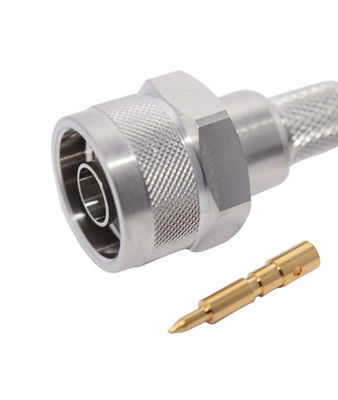

RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm

RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm
RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm

Large Image :  RF Connector, N-Type Straight Crimp Male for LMR-400, 50 Ohm

Product Details:
Place of Origin: Guangdong, China
Brand Name: Sun communication
Certification: UL CE ROHS
Model Number: N-Type Straight Crimp Male for LMR-400
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Packaging Details Plastic Bag Packing
Delivery Time: 1-2weeks
Supply Ability: 10000 Unit/Units per Month
Detailed Product Description
Place Of Origin: Guangdong, China Brand Name: Sun Communication
Type: N Type Application: RF
Gender: Male Impedance: 50 Ohm
Frequency Range: DC~3GHz Voltage Rating: 500 V(rms)
Dielectric Withstan: >1500V Center Contact Res: <1.0mΩ
Insulation Resistance: >5000MΩ VSWR: <1.15
Temperature Range: -55 ℃~+165 ℃ Durability: ≥ 500 Cycles
High Light:

right angle rf connector

,

n type rf connector

MATERIALS AND PLATING
DESCRIPTION MATERIALS PLATING
BODY BRASS C3604 PL.NICKEL 100u" MIN/COPPER
CONTACT PIN BRASS C3604 PL.GOLD 3u"MIN/COPPER/NICKEL
INSULATOR PTFE ASTM-D-1710 N/A
CRIMP FERRULE BRASS C3602 PL.NICKEL 100u" MIN/COPPER
ELECTRICAL SPECIFICATION
Impedance 50 Ohm
Frequency range DC~6GHz
Voltage rating 750 V(rms)
Dielectric withstanding voltage >2500 V
Center contact resistance <1.0 mΩ
Outer contact resistance <0.2 mΩ
Insulation resistance >5000 MΩ
Insertion loss 0.15dB at 10 GHz
RF leakage -90 dB min @ 3 GHz
VSWR <1.15
