Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangdong, China | Brand Name: | Sun Communication |
|---|---|---|---|

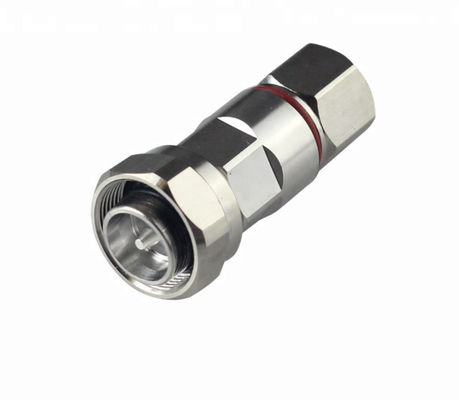

| Type: | 4310M-12"L | Application: | RF |
| Gender: | Male | Impedance: | 50 Ohm |
| Frequency Range: | DC~11GHz | Voltage Rating: | 500 V(rms) |
| Dielectric Withstan: | >1500V | Center Contact Res: | <1.0mΩ |
| Insulation Resistance: | >5000MΩ | VSWR: | ≤1.08 (0-2.2GHz); ≤1.1 |
| Temperature Range: | -55 ℃~+165 ℃ | Durability: | ≥ 500 Cycles |
| Insertion Loss: | ≤0.12dB (@2200MHz) | PIM: | ≤-160dBc |
| High Light: | right angle rf connector,n type rf connector |
||
|
Electrical Specifications
|
|
|
Impedance
|
50 ohm
|
|
Frequency
|
0-11GHz
|
|
≤1.08 (0-2.2GHz); ≤1.1 (0-3GHz)
|
≤1.08 (0-2.2GHz); ≤1.1 (0-3GHz)
|
|
Dielectric Strength
|
≥2500V RMS, at sea level
|
|
Dielectric Resistance
|
≥5000MΩ
|
|
Insertion Loss
|
≤0.12dB (@2200MHz)
|
|
Center contact resistance
|
≤1.0mΩ
|
|
Outer contact resistance
|
≤0.25mΩ
|
|
PIM (900MHz, 1800MHz 2×20W)
|
≤-155dBc
|
|
Mechanical Feature
|
|
|
Mating cycles
|
≥500 times
|
|
Termination cable retention
|
≥500N
|
|
Apply with the electric cable
|
1/2” low loss Feed Cable
|
|
Environmental parameters
|
|
|
Temperature range
|
-40℃ to +85℃
|
|
Environmental standards
|
RoHs
|
