| Place Of Origin: | Guangdong, China | Brand Name: | Sun Communication |
|---|---|---|---|
| Type: | Full Thread RP SMA Female Jack Bulkhead Connector Crimp For RG174 Coaxial Cable | Application: | RF |
| Gender: | Male | Impedance: | 50 Ohm |
| Frequency Range: | DC~18GHz | Voltage Rating: | 500 V(rms) |
| Dielectric Withstan: | >1500V | Center Contact Res: | <1.0mΩ |
| Insulation Resistance: | >5000MΩ | VSWR: | ≤1.08 (0-2.2GHz); ≤1.1 |
| Temperature Range: | -55 ℃~+165 ℃ | Durability: | ≥ 500 Cycles |
| Insertion Loss: | ≤0.12dB (@2200MHz) | PIM: | ≤-160dBc |
| Describe: | Rp Sma Male To Double | Plating: | Gold Or Nickel |
| High Light: | sma rf connector,n type rf connector |
||

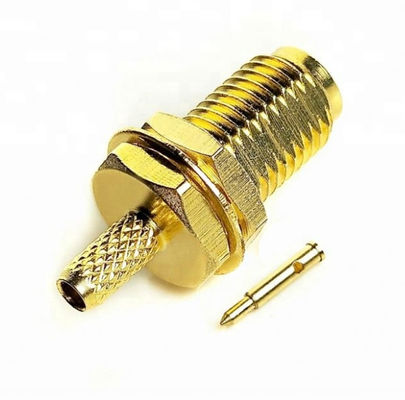

Full Thread RP Sma Bulkhead Jack Connector Crimp For RG174 Coaxial Cable
| Temperature range |
-65~+165°C (PE Cable -40~+85°C)
|
| Vibration |
MIL-STD-202,Method 213
|
| Impedance | 50 OHM |
| Frequency Range | DC – 12.4GHz(0-18GHz) |
| Working Voltage | 335V max |
|
Withstand Voltage
|
1000V rms |
| Center Contact |
≤ 3 mΩ
|
|
Outer Contact
|
≤2mΩ |
| Insulation resistance | ≥5000M OHM |
|
Insertion loss
|
≤0.15 dB/6GHz |
| Durability (mating) | ≥500 (cycles) |
|
Insertion loss
|
0.15dB (7.5GHz max) |
|
VSWR
|
Straight Soft cable ≤1.10+0.002f Semi-steel cable≤1.05+0.001f
Right angle Soft cable ≤1.20+0.003f Semi-steel cable≤1.10+0.001f |
Material & Plating
| Body | Brass | Nickel plated / Alloy plated |
| Inner Pin | Brass | Gold plated |
| Resilient Contact | Beryllium Copper | Gold plated |
| Socket Contact | Beryllium or tin bronze | Gold plated |
| Insulator | PTFE | |
| Crimp Ferrule | Copper alloy | Nickel / Gold plated |
| O-ring sealing | Silicone Rubber |
