Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Guangdong, China | Brand Name: | Sun Communication |
|---|---|---|---|
| Type: | RP-SMA To UFL/u.FL/IPX/IPEX RF Adapter Cable | Application: | RP-SMA To UFL/u.FL/IPX/IPEX RF Adapter Cable |
| Gender: | Male | Impedance: | 50 Ohm |
| Frequency Range: | DC-6G | Voltage Rating: | 500 V(rms) |
| Dielectric Withstan: | >1500V | Center Contact Res: | <1.0mΩ |
| Insulation Resistance: | >5000MΩ | VSWR: | ≤1.08 (0-2.2GHz); ≤1.1 |
| Temperature Range: | -55 ℃~+165 ℃ | Durability: | ≥ 500 Cycles |
| Insertion Loss: | ≤0.12dB (@2200MHz) | PIM: | ≤-160dBc |
| Describe: | Din Connector | Plating: | Gold Or Nickel |
| High Light: | sma rf connector,n type rf connector |
||

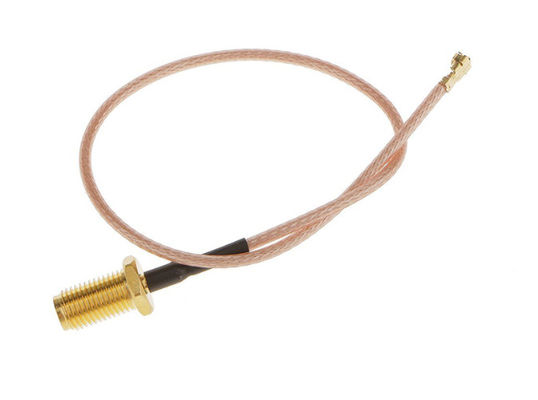

DC To 6GHz Coaxial Cable assembly RG316 Waterproof cable N male to Sma lmr400 LMR240 RF Connector
Features:
1. Not easy to aging, the connection is firm and durable
2. multiple interfaces choice, N, SMA, SMB, MMCX, BNC. ETC
3. experienced, standard production procedures, strict and thorough testing process.
| Product Name | SMA Male to BNC Female RG316 Cable Pigtail RF Coaxial Connector Cable |
| Connector | SMA Male to BNC Male |
| Impedance | 50 ohm |
| Frequency | DC to 6GHz |
| V.S.W.R | <1.5 |
| Length | 20CM (Can be Customized) |
| RF Coaxial Cable | RG316 |
| High Quality | High-temperature resistance, acid resistance, corrosion resistance, high-frequency low loss and low impedance |
| Sample | 2-3pcs free samples |
| Packing | PE bag Bulk Packing |
