Product Details:
Payment & Shipping Terms:
|
| Connector Gender: | Male / Female (Complete Set) | Operating Temperature & Humidity: | -25°C To 70°C & 95% (at 40°C) |
|---|---|---|---|
| Contact + Insulation Resistance: | ≦10mΩ + ≥100mΩ | Application: | Electric Motorcycles, Scooters, E-bikes, And BMS Systems |
| Lockingmechanism: | Latch / Screw Type | Cable Compatibility: | AWG 12-22 |
| IP Rating: | Waterproof IP67 | Material: | High-temperature Resistant Plastic & Gold-plated Copper Alloy |
| Voltage Rating: | 500V AC (Supports Wide Range) | Durability: | ≥ 3000 Cycles, Corrosion Resistant, Vibration Proof |
Product Overview

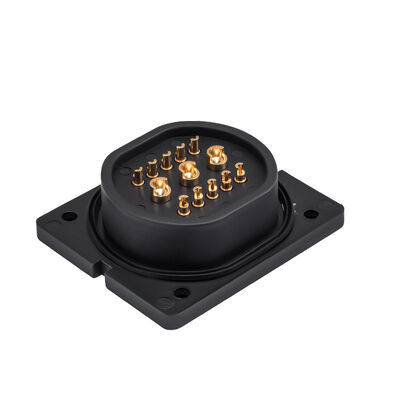

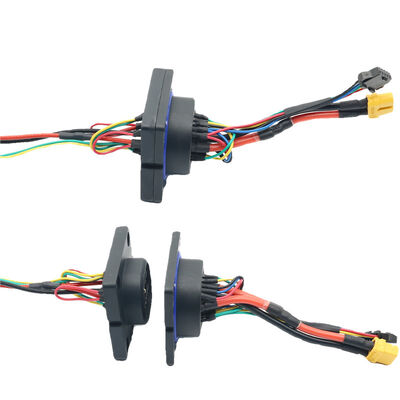

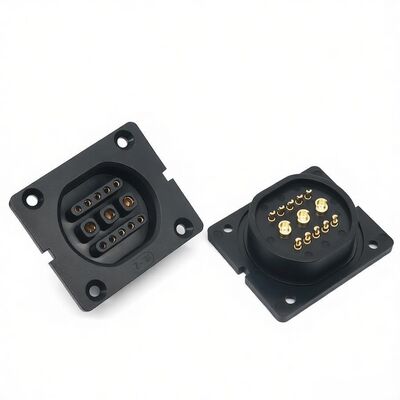

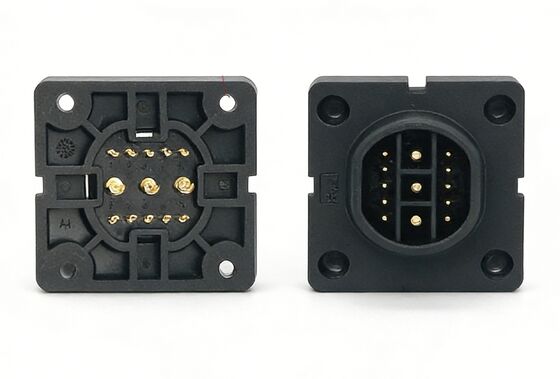

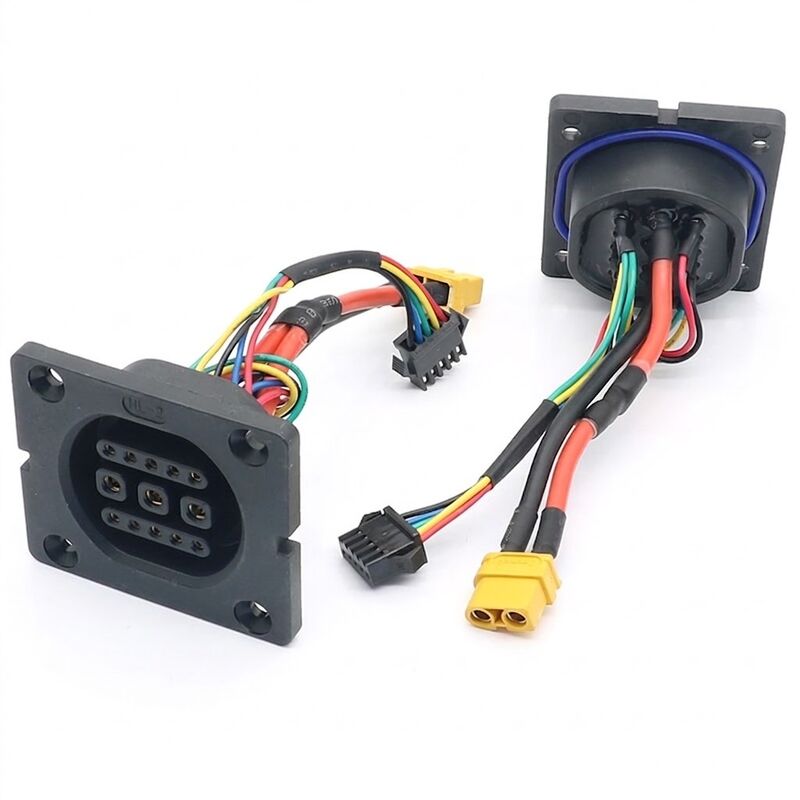

1. The 3+10 Pin EV Hybrid Power Connector is a high-reliability industrial connector designed for EV charging systems, Battery Management Systems (BMS), and energy storage applications.
2. It integrates high-current power transmission and low-voltage signal communication into a single compact interface, significantly reducing wiring complexity and improving system reliability.
3. Built with IP67 waterproof protection, this connector is suitable for harsh automotive and industrial environments.
Key Features & Benefits
Technical Parameters
| Projects Content | Specification Value |
| Model Series | 3+10 Series (Hybrid Power & Signal) |
| Pin Configuration | 3 Power + 10 Signal |
| Rated Load | 200V AC; Power Pin: 10A / Signal Pin: 3A |
| Operating Temperature | -25°C to +70°C |
| Operating Humidity | 95% (at 40°C) |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥100mΩ |
| Withstand Voltage | 200V AC (50Hz) for 1 minute |
| Insertion & Extraction Force | 40N to 80N |
| Mechanical Mating Life | ≥ 5000 times |
| Flame Retardant Grade | UL94 V0 |
Application Scenarios
Frequently Asking Questons (FAQ)
Q1: Can your connectors/cable assemblies be customized? What is the minimum order quantity (MOQ)?
A: We support full-category customization, and can provide exclusive design and prototyping according to your drawings, parameters (electrical/mechanical/environmental performance) and application scenarios (such as army/automotive/medical). The MOQ for standard products is as low as 500pcs, and the MOQ for customized parts is negotiated based on product complexity. We accept both small-batch trial orders and large-volume orders.
Q2: What is the service life, temperature resistance, waterproof and other environmental performance of the products?
A: The full range of products can provide different protection levels (such as IP67/IP68 waterproof), wide temperature range (-40℃~+85℃ and above), high vibration/impact resistance as required. All products have passed the full electrical, mechanical and environmental performance tests in the laboratory, ensuring long-term stable use in complex working conditions such as industry, army and automotive.
Q3: What are the application fields of your products? Are they suitable for my industry?
A: Our core coverage includes 7 major fields: data communication, industrial control, new energy, medical electronics, equipment manufacturing, army supporting, and automotive wiring harness. High-frequency/low-frequency/fiber-optic/industrial/high-speed connectors and various cable assemblies can meet the stringent requirements of industrial automation, new energy vehicles, medical equipment, army equipment and other segmented scenarios.
Q4: What are the production lead times for standard and customized products?
A: The regular lead time for standard products is 3-7 working days; the prototyping cycle for customized parts is 7-15 working days, and the mass production cycle is 15-30 working days. We can coordinate priority production scheduling according to your urgent order requirements.
