| Product Type: | Power Connector (Male & Female) | Connector Gender: | Male (Plug) / Female (Receptacle) |
|---|---|---|---|
| Pin Configurations: | 2+0 / 2+5 / 2+1+3 / 2+1+5 | Contact Material: | Brass With Gold Plating |
| Mounting Type (Female): | Square Flange / Diamond Flange（4-hole/2-hole) | Coupling Mechanism: | Screw Thread (M23) |
| Operating Temperature: | -25°C ~ +70°C | Suitable Cable Type: | Shielded / Unshielded Power Cable |
| Application: | New Energy Electric Motorcycles |

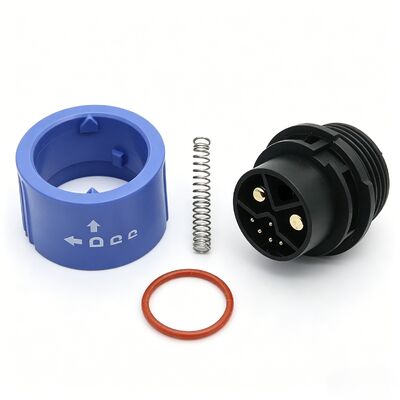

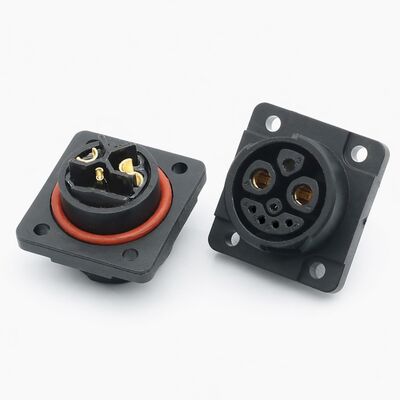

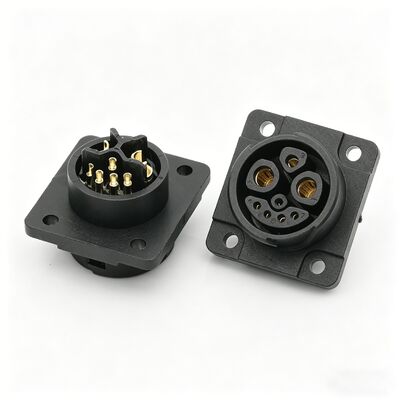

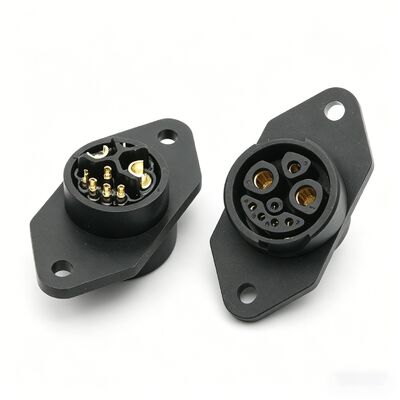

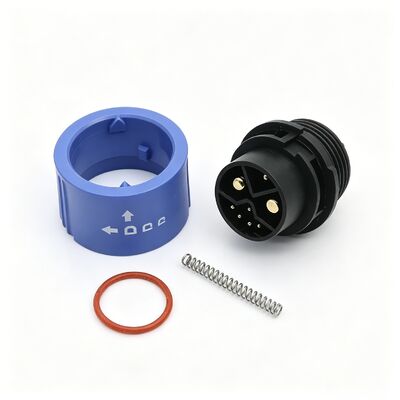

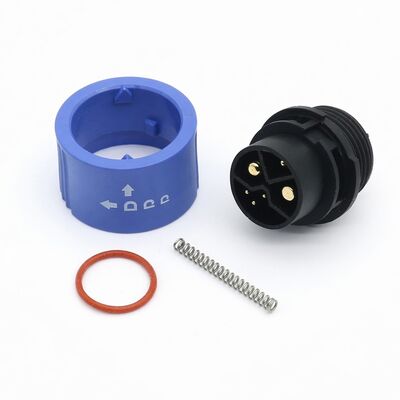

E-motorcycle Solution M23 Series 30A Heavy Duty Waterproof Circular Connector For High Power Equipment
Product Definition
The M23 Series is a high-performance, heavy-duty circular waterproof power connector designed for higher current applications. It features a robust 3-pin + PE (Protective Earth) configuration, supporting up to DC 300V / 30A. With threaded coupling, excellent sealing, and industrial-grade materials, the M23 series provides reliable power transmission in harsh outdoor and industrial environments.
Key Features
Technical Parameters
| Parameter | Specification |
| Rated Voltage | DC 300V |
| Rated Current | 30A |
| Rated Load | DC 300V / 30A |
| Insertion Force | 20.60N |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Withstand Voltage | AC 2000V (50Hz) / 1 min |
| Durability | ≥ 3000 mating cycles |
| Operating Temperature | -25°C ~ +70°C |
| Relative Humidity | 90% (40°C) |
| Salt Spray Test | 72 hours |
| Pin Configuration | 3 Power + PE (4 pins total) |
| Coupling | Threaded screw coupling |
| Housing Material | High-performance engineering plastic |
| Contact Material | Gold-plated copper |
| Protection Rating | IP67 / IP68 (when mated) |
Application Scenoris
Frequently Asking Questions(FAQ)
Q1: What is the M23 Series Power Connector?
A: The circular waterproof power connector designed for higher current applications. It features a 3-pin + PE (Protective Earth) configuration and supports up to DC 300V / 30A, making it ideal for demanding industrial and outdoor power connections.
Q2: Are both male and female versions available?
A: Yes. The power connector includes both male (plug) and female (socket/panel mount) versions, with various housing styles for different installation needs.
Q3: Do you provide OEM/ODM services according to your basic type?
A: Almost of our connectors and cables are customizated items, if you can share us with your HD product pictures/drawings, Straight/Elbow type, Pin Counts/Coding and Cable Length would be more accurate for the price offers.
