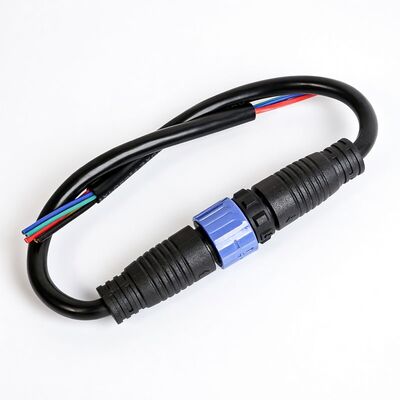

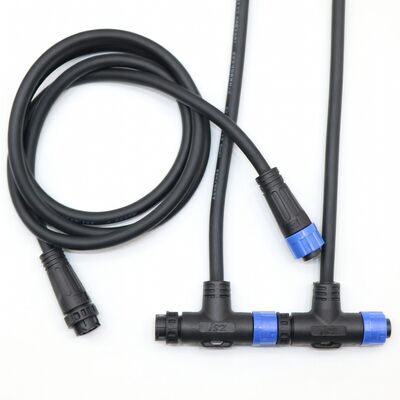

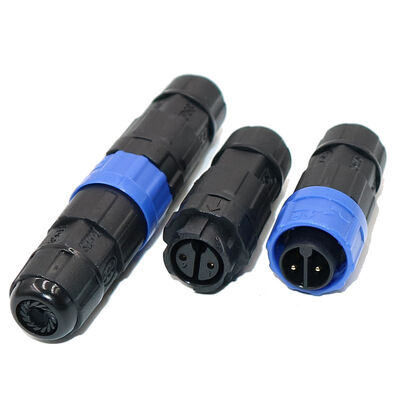

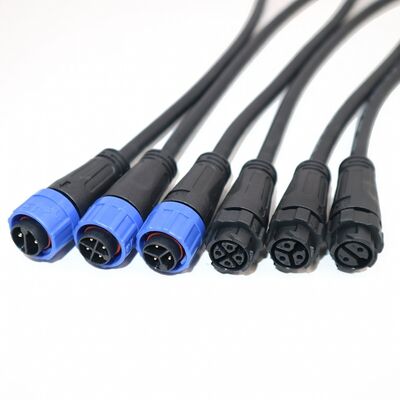

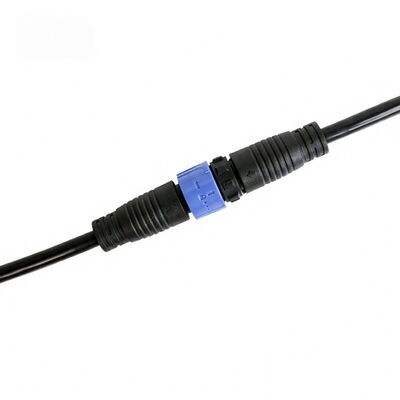

M16 Series IP67 Waterproof Quick-Lock Circular Connector 2-5 PIN and 8-15A for Electric Motorcycles

M16 Series IP67 Waterproof Quick-Lock Circular Connector 2-5 PIN and 8-15A for Electric Motorcycles

What is M16 waterproof connector?

The M16 Series Waterproof Connector is a robust, circular, quick-lock assembled and molded-type connector engineered for reliable power and signal transmission in harsh environments. Available in 2–5 PIN configurations, it combines precision injection molding with IP67 waterproof and UL94 V0 flame-retardant performance. It supports standard 1 m cable lengths with full customization options and delivers a continuous current rating of 8–15 A. Designed for easy assembly and long-term durability, the M16 series excels in electric systems, new energy vehicles, rail transit, and industrial automation.

#Keywords

M16 Pro Waterproof Connector, M16 UltraSeal Circular Connector, M16 IP67 Quick-Lock Power Connector, M16 IP67 Quick-Lock Power Connector, Electric Motorcycle Connector Assembly

M16 Waterproof Connector Parameters chart:

Core Value Points

1. True IP67 Waterproof & Dustproof – Fully sealed for outdoor and wet environments.

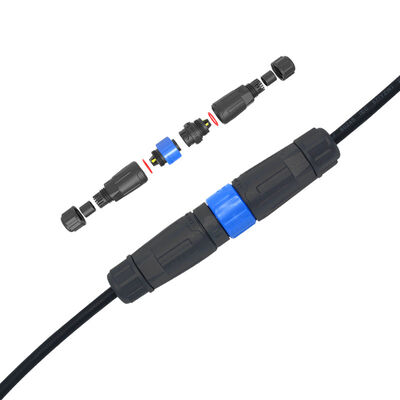

2. Quick-Lock Assembly – Tool-free, fast mating in seconds; molded version for permanent vibration-proof use.
3. Versatile 2–5 PIN Options – Flexible for power, signal, or mixed applications.
4. 8–15 A Continuous Current – High power handling with low contact resistance.
5. Standard 1 m Cable + Full Customization – Ready-to-use or tailored to exact project needs.
6. UL94 V0 Flame Retardant + Multi-Protection – Shock, oil, high-temp, and corrosion resistant for maximum reliability.
7. Precision Engineered – Gold/silver plated contacts and robust M16 threading ensure thousands of mating cycles.

Usage Scenarios

• Electric vehicle high-voltage / low-voltage wiring harnesses
• New energy storage systems and solar inverters
• Rail transit signaling and power distribution
• Industrial automation sensors, actuators, and vision systems
• Electric Motorcycle (e-moto) Connector Assemblies – Perfect for battery-to-controller, motor, and charging connections; withstands vibration, moisture, and road conditions while delivering stable 8–15 A power.

Dongguan Ritian Communication Technology Co., Ltd.

Founded in January 2009, Dongguan Ritian Communication Technology Co., Ltd. is a premier domestic connector manufacturer dedicated to the design and development of connection system solutions, operating a nearly 2,000㎡ production facility.

Our comprehensive product portfolio encompasses high-frequency, low-frequency, fiber-optic, industrial, and high-speed connectors, alongside a full range of cable assemblies including RF, signal, power, fiber-optic, and automotive wiring harnesses. Most products are UL and TUV certified, fully compliant with IEC international and domestic industry standards, serving diverse sectors such as data communication, industrial control, new energy, medical electronics, equipment manufacturing, military aerospace, and automotive systems, with exports to North/South America, Europe, East Asia, and Southeast Asia.

We hold ISO 9001, IATF 16949, ISO 13485, and GJB 9001B certifications, as well as Class III Confidentiality Qualification and Military Production License for Weaponry R&D. Backed by a 30+ member R&D team with 7 national patents, a complete industrial chain, and advanced testing laboratories, we deliver reliable, high-quality products and end-to-end solutions to global clients.

Connector & Cable Assembly FAQ

Q1: Can your connectors/cable assemblies be customized? What is the minimum order quantity (MOQ)?

A: We support full-category customization, and can provide exclusive design and prototyping according to your drawings, parameters (electrical/mechanical/environmental performance) and application scenarios (such as military/automotive/medical). The MOQ for standard products is as low as 500pcs, and the MOQ for customized parts is negotiated based on product complexity. We accept both small-batch trial orders and large-volume orders.

Q2: What is the service life, temperature resistance, waterproof and other environmental performance of the products?

A: The full range of products can provide different protection levels (such as IP67/IP68 waterproof), wide temperature range (-40℃~+85℃ and above), high vibration/impact resistance as required. All products have passed the full electrical, mechanical and environmental performance tests in the laboratory, ensuring long-term stable use in complex working conditions such as industry, military and automotive.

Q3: What are the application fields of your products? Are they suitable for my industry?

A: Our core coverage includes 7 major fields: data communication, industrial control, new energy, medical electronics, equipment manufacturing, military supporting, and automotive wiring harness. High-frequency/low-frequency/fiber-optic/industrial/high-speed connectors and various cable assemblies can meet the stringent requirements of industrial automation, new energy vehicles, medical equipment, military equipment and other segmented scenarios.

Q4: What are the production lead times for standard and customized products?

A: The regular lead time for standard products is 3-7 working days; the prototyping cycle for customized parts is 7-15 working days, and the mass production cycle is 15-30 working days. We can coordinate priority production scheduling according to your urgent order requirements.
