| Types Available: | Straight, Right-angle (90°), With Or Without Shielding Sleeve, Male/female, Plug And Socket Versions | Pin Counts: | 4 / 6 / 7 / 10 / 12 Pins |
|---|---|---|---|
| Locking Mechanism: | Push-pull Self-locking (quick Plug & Unplug, Secure Retention) | Mounting Options: | Panel Mount (front/rear), Screw Nut Fixing, Floating Alignment |
| Termination: | Soldering / PCB Welding | Housing Material: | Brass With Nickel Plating |
| Contact Material: | Brass Or Phosphor Bronze With Gold (Au) Plating | Insulator: | PA66 Engineering Plastic |
| Cable Comp-ability: | Supports Custom Cable Assemblies With High-flex, Abrasion-resistant Jacket |

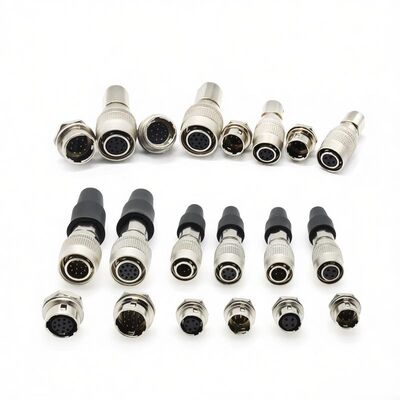

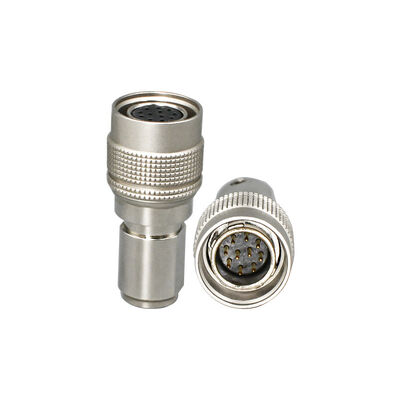

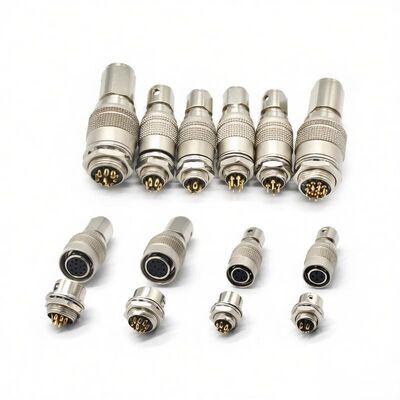

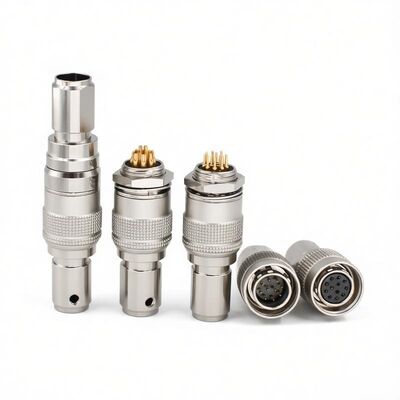

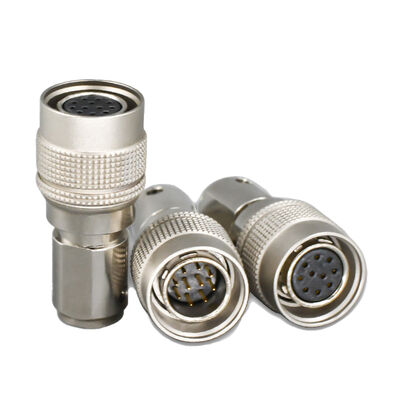

12PIN HRS Push-Pull Self-Locking Industrial Camera Connector For Machine Vision
Product Description
This is a high-precision, push-pull self-locking circular connector series designed specifically for industrial cameras and machine vision systems. It features a compact metal housing with reliable push-pull quick-release locking mechanism, making it easy to connect and disconnect while ensuring secure mating under vibration. Available in 4-pin, 6-pin, 7-pin, 10-pin, and 12-pin configurations, it is widely used for power supply, trigger signals, GPIO, and data transmission between industrial cameras (Basler, Cognex, Sony, AVT, JAI, etc.) and controllers or cables.
High-lighting Benefits
Technical Parameters
| Parameter | Details |
| Product Series | HRS Industrial Camera Connector |
| Pin Configuration | 4 / 6 / 7 / 10 / 12 pins |
| Locking Type | Push-Pull Self-Locking |
| Rated Voltage | 30V |
| Rated Current | 2A per pin |
| Operating Temperature | -25°C ~ +85°C |
| Contact Resistance | Low (gold-plated contacts) |
| Shell Material | Brass + Nickel Plating |
| Contact Plating | Gold (Au) |
| Insulation Material | PA66 (UL certified) |
| Mounting Styles | Panel mount, screw nut, floating |
| Protection | Excellent vibration & shock resistance |
| Compatibility | Basler, Cognex, Sony, AVT, JAI, Hikvision, etc. |
Application Scenarios
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: What is the difference between AISG and SMH200 connectors?
A: AISG is a robust circular connector for reliable field connections; SMH200 is a compact 2.0mm pitch board connector.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
