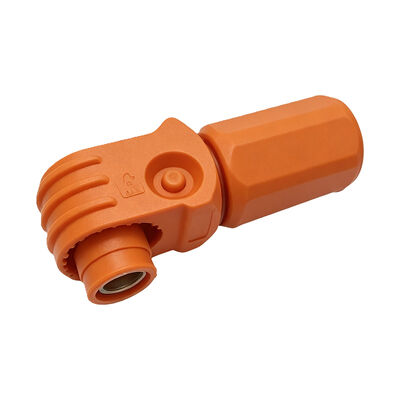

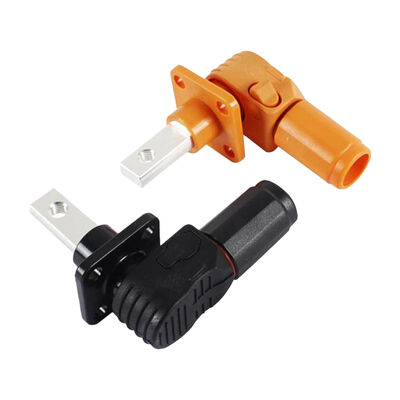

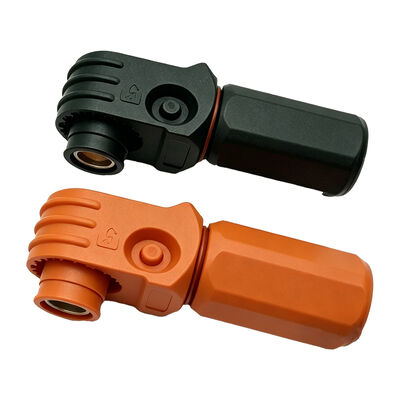

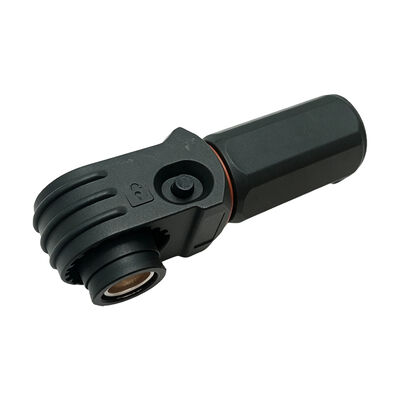

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector
Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector

Large Image :  Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector

Product Details:
Place of Origin: China
Brand Name: Ritian
Certification: CE
Model Number: RT-Φ12.0 Series
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Neutral Carton or Customized
Delivery Time: 5-8 days for the samples, 15-25 days for bulk
Payment Terms: T/T
Supply Ability: 30000 PCS / Month
Contact Now
Detailed Product Description
Product Series: Φ12.0 Energy Storage Connector Contact Type: Power Connector
Gender: Plug & Socket (Male/Female) Contact Diameter: 12.0 Mm
Cable Size Range: 70mm² / 95mm² / 120mm² Shielding: Non-shielded
Finger Protection: IP2XB Contact Material: Copper Alloy, Silver Plated
Housing Material: PA66 + Glass Fiber (G15) Installation Type: Panel Mount / Plug
Application: Energy Storage / EV / Industrial

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector


Product Definition

The Φ12.0 Energy Storage Connector is a high-performance industrial power connector designed for high-voltage and high-current applications. It supports up to 1500V DC and 350A current transmission, ensuring reliable electrical connectivity in demanding environments such as energy storage systems, electric vehicles, and industrial equipment.



Built with durable PA66+G15 materials and precision-engineered contacts, this connector provides excellent mechanical strength, thermal resistance, and long service life.
Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector 0




Technical Parameters



Parameter Specification
Product Series Φ12.0
Rated Voltage 1500V DC
Rated Current 250A / 300A / 350A
Insulation Resistance ≥2000MΩ
Dielectric Strength 3000VAC
Protection Degree IP67 (Mated)
Mating Cycles ≥500
Operating Temperature -40°C ~ +125°C
Cable Size 70 / 95 / 120 mm²
Contact Material Copper Alloy (Silver Plated)
Housing Material PA66 + G15
Installation Type Plug / Socket / Panel Mount

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector 1
Key Features


  1. High Voltage & High Current Performance: Supports up to 1500V DC and 350A, ideal for energy storage and high-power transmission.
  2. Industrial-Grade Durability: Made of PA66+G15 reinforced material, offering excellent heat resistance, flame retardancy, and mechanical strength.
  3. Reliable Electrical Conductivity: Silver-plated copper alloy contacts ensure low resistance, high conductivity, and minimal heat generation.
  4. Superior Protection: IP67 rated (mated condition), resistant to dust, water, and harsh environments.
  5. Long Service Life: Designed for ≥500 mating cycles, ensuring durability in repeated use.
  6. Flexible Cable Compatibility: Supports 70 / 95 / 120mm² cables, adaptable to different power requirements.
  7. Services: OEM/ODM Available, Fast Delivery, Sample and Factory Direct Supply

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector 2

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector 3

Φ12.0 High Current Energy Storage Connector 1500V DC 350A IP67 Industrial Power Connector 4


Application Scenarios


  1. Energy Storage Systems (ESS): 1). Battery energy storage cabinets 2). Grid energy storage systems
  2. Electric Vehicles / E-Mobility: 1). Electric motorcycles 2). Electric scooters 3). EV battery connection
  3. Industrial Equipment: 1). Power distribution systems 2). Automation equipment
  4. Battery PACK Systems: 1). Battery module connection 2). High-current power transmission
