| Series Name: | HVIL New Energy Connector Series | Contact Type: | New Energy Power Connector |
|---|---|---|---|
| Gender: | Plug & Socket (Male/Female) | HVIL Function: | Active High-voltage Interlock For Enhanced Safety. |
| Touch Protection: | IPXXB Protection When Unmated. | Cable Options: | Compatible With Shielded Cables 25/35/50mm². |
| Mounting Options: | Inline, Right-angle, And Panel-mount Versions Available. | Visual Safety: | Bright Orange Housing For Immediate High-voltage Identification. |
| Application: | Battery System Connections, Power-train Interfaces, On-board Power Components, Power Distribution |

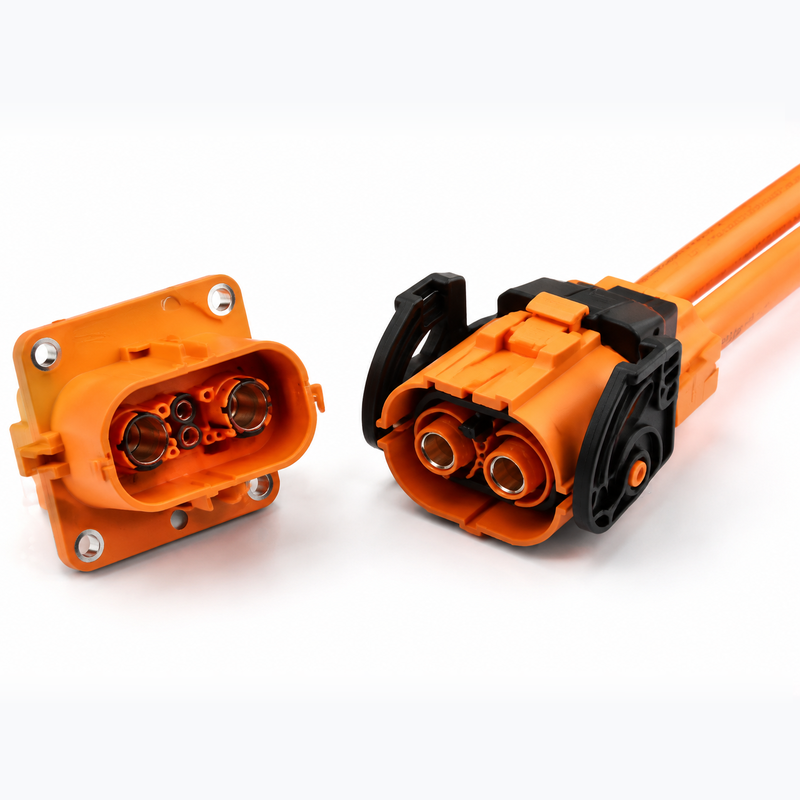

Product Overview

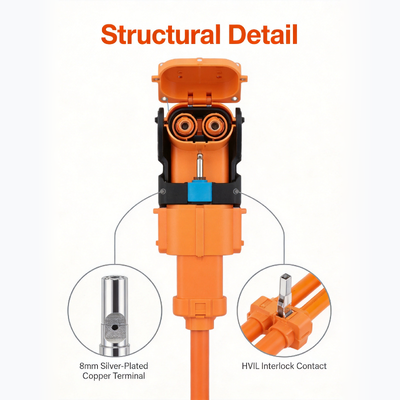

The RL-HVIL-08-200A is an 8mm high-voltage interlock connector designed specifically for electric vehicles and energy storage systems. It meets the IP67 protection rating and supports high-power applications up to 1500V and 200A. Featuring 360-degree EMI shielding, a built-in HVIL safety circuit, and high-quality silver-plated terminals, it ensures safety and durability in harsh environments.

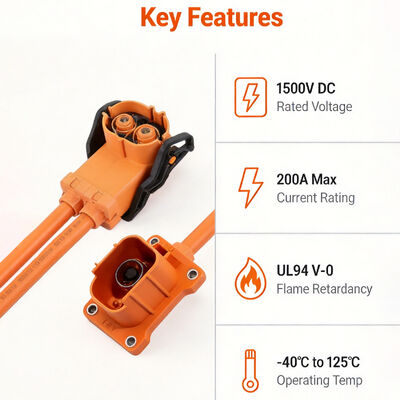

Key Features & Benefits

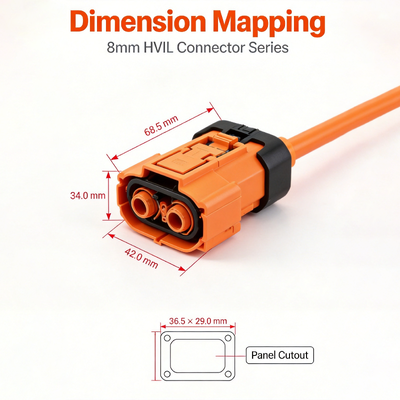

Technical Parameters
| Parameter | Specification |
| Pull-out Force | ≤ 100N |
| Temperature Range | -40°C ~ +140°C |
| Rated Voltage | 1500V DC |
| Rated Current | 25mm² = 125A 35mm² = 150A 50mm² = 200A |
| Mating Cycles | ≥ 50 times |
| Protection Rating | IP67 / IP6K9K (mated) IPXXB (unmated) |
| Cable Cross-section | 25mm² / 35mm² / 50mm² (shielded) |
| Interface | 8mm |
| Housing Material | High-performance engineering plastic |
| Color | High-Voltage Orange |

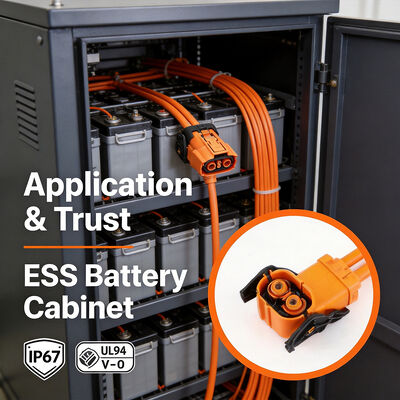

Application Fileds
Factory Tour / Quality Control
Frequently Asking Questions (FAQ)
Q1: Does this connector support high-voltage safety interlocks?
A: Yes, it features an integrated HVIL mechanism that provides a diagnostic loop to ensure power is cut off during accidental unmating.
Q2: Is the IP67 rating applicable to the cable entry point?

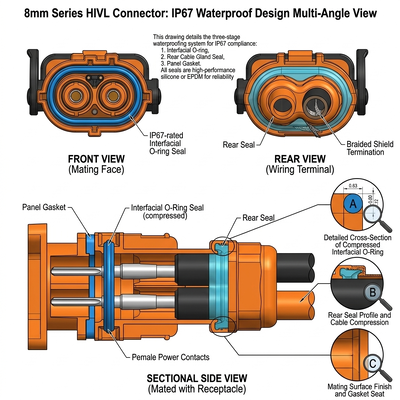

A: Yes, the design includes a dedicated Rear Cable Gland Seal to ensure moisture-tight integrity at the cable-connector interface.
Q3: Can you provide custom cable assemblies?
A: We offer full custom wire harness integration, including various cable lengths and shielding options to meet your system specifications.
