Product Details:
Payment & Shipping Terms:
|
| Product Type: | Energy Storage Assembly | Cable Insulation: | PVC 105°C Yellow |
|---|---|---|---|
| Conductor Type: | RV Flexible Stranded Copper | Terminal Interface: | M8/M10 Threaded Stud (optional) |
| Locking Mechanism: | Threaded Nut With Anti-vibration Design | Crimping Mehod: | Rotary Crimp (rotary Crimp For Stranded Conductor) |
| Application: | Battery Module / PDU / Commercial & Industrial ESS / Residential Energy Storage |
Looking for a heavy-duty, high-current wiring solution for your battery cabinet? RitianLink's 25mm² energy storage cable assemblies deliver stable power transmission and IP65 waterproof reliability for industrial and commercial ESS applications.
Product Overview

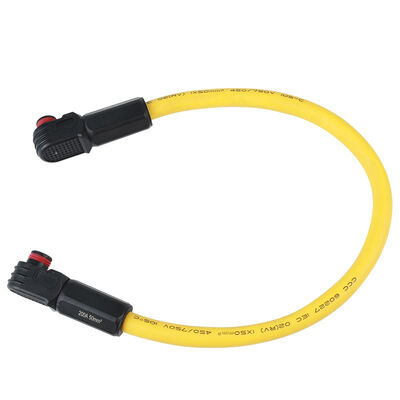

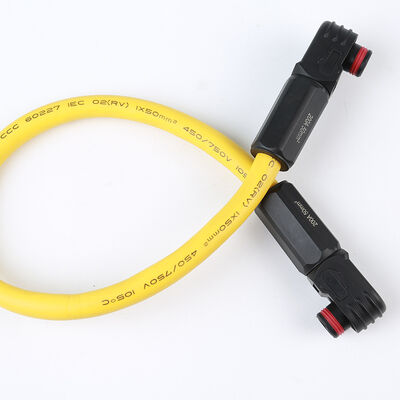

Our 25mm² Energy Storage Cable Assemblies and Wire Harnesses are engineered specifically for high-capacity energy storage cabinets, lithium battery modules, and solar hybrid inverter systems. Utilizing premium unshielded 25mm² power cables paired with robust 150A quick-lock threaded connectors, this heavy-duty wire harness ensures minimum power loss and maximum safety in high-voltage environments up to 1500V DC.
Key Features & Benefits
High Current Capacity: Optimized for 150A continuous current with 25mm² (approx. 3 AWG) high-flexibility copper conductors.
IP65 Waterproof Rating: Superior sealing technology protects connector junctions from dust, moisture, and harsh industrial environments.
Flame Retardant Housing: Connector shells are molded from high-grade PA66 nylon, achieving UL94 V-0 flame retardancy.

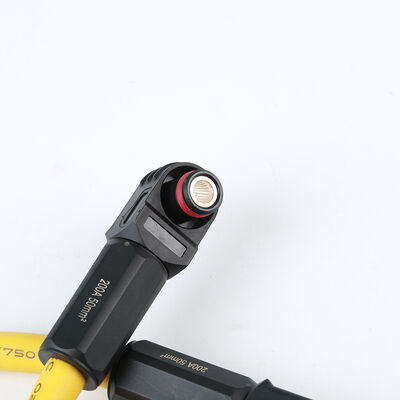

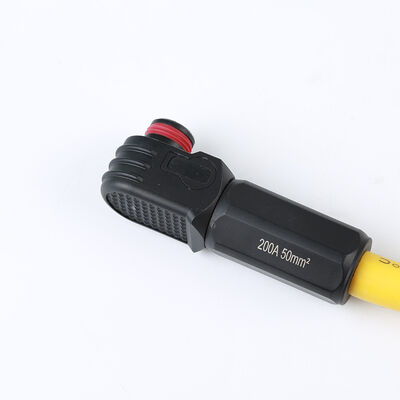

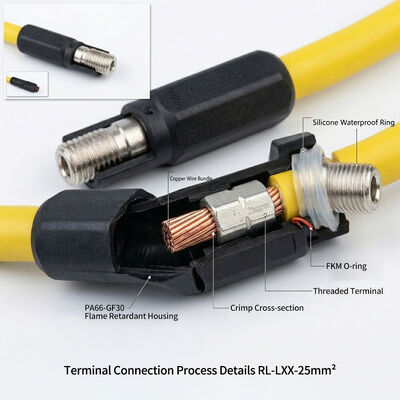

Secure Threaded Connection: Features a robust threaded terminal mechanism to prevent accidental disconnects under heavy vibrations.
Excellent Flex Life: Multi-strand fine copper wires provide exceptional bending flexibility, making routing easy inside tight battery modules.
Technical Parameters
| Parameter | Specifics Value |
| Product Name | Energy Storage Cable Assemblies |
| Model | RT-LXX-25mm² |

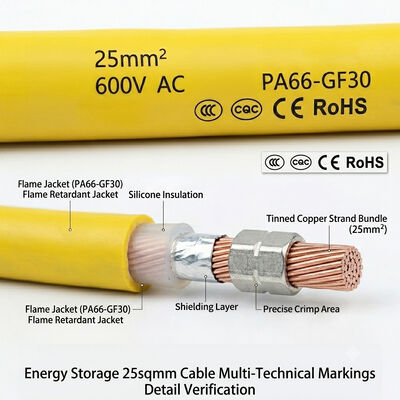

| Conductor Cross-Section | 25mm² (Fexible Class 5/6 Copper Conductor) |
| Rated Current | 150A Max. |
| Rated Voltage | 450/750V AC | Up to 1500V DC |
| Connector Material | PA66 Insulation + Tin-plated Copper Terminals |
| Flammability Rating | UL94 V-0 (Self-extinguishing) |
| Ingress Protection | IP65 (Mated Condition) |
| Operating Temperature | -40°C to +125°C |
| Connector Material | PA66 flame-retardant housing |

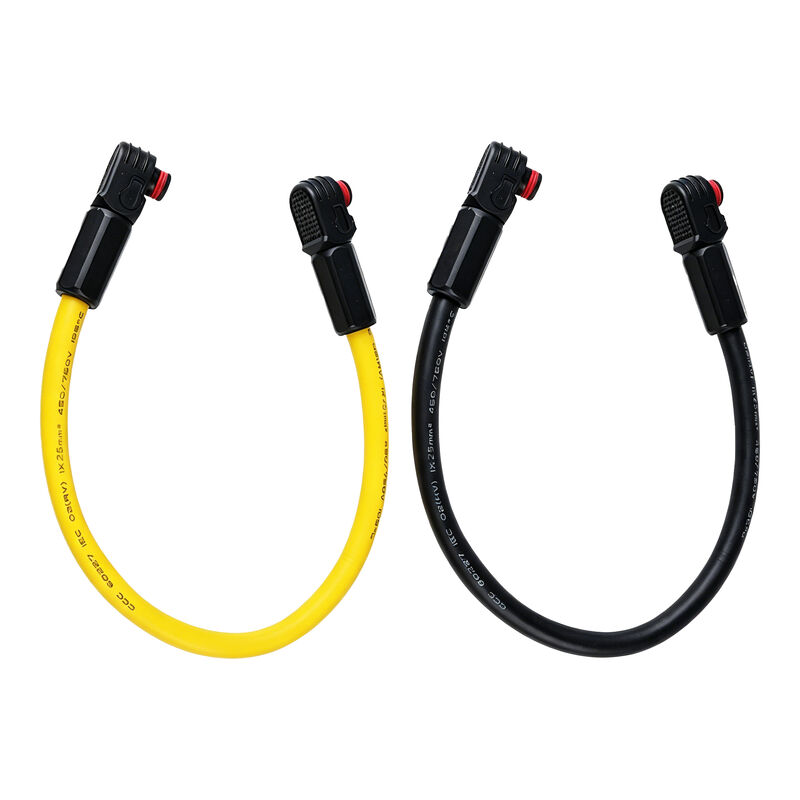

| Customization Options | Cable Length, Terminal Type, and Color (Orange/Black) |
| Application | Energy Storage System (ESS) |
Application Scenarios

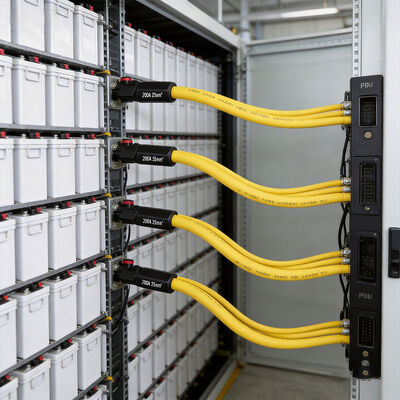

ESS Battery Cabinets: Heavy-duty internal power interconnection between stackable lithium iron phosphate (LiFePO4) battery modules.
Commercial & Industrial Storage: Main DC power links for large-scale containerized energy storage systems.
Solar & Wind Inverters: Reliability wire harness processing for commercial solar hybrid inverters and UPS setups.
Telecom Power Supplies: High-current backup battery bank distribution systems.
Frequently Asked Questions (FAQ)
Q1: What is the maximum length available for these 25mm² cable assemblies?
A: As a professional wire harness processing factory, we offer 100% custom lengths based on your technical drawings. Standard lengths are typically 200mm, 500mm, and 1000mm.
Q2: Are these cables compliant with international certifications?
A: Yes, our raw energy storage cables comply with CE, IEC, and RoHS standards, ensuring they meet the safety and environmental criteria for export to Europe and North America.
Q3: Can I get different connector angles like right-angle (90-degree) or straight?
A: Absolutely. We provide both straight and 90-degree right-angled quick-lock connectors to match the spacing requirements of your specific battery cabinet panels.
Q4: Do you support custom branding or custom model numbers for OEM orders?
A: Yes, we support OEM/ODM services. We can print your specific brand name, model numbers, or wiring diagrams on the cable jackets or custom export packaging boxes.
