Product Details:
Payment & Shipping Terms:
|
| Model: | M12 Connector | Type: | Panel Mount, Circular |
|---|---|---|---|
| Body Material: | Brass , Nickel Plated | Gender: | Male Female |
| Mounting Type: | Front Mount / Back Mount / 4 Hole Flange | Material Of Contact: | Phosphor Bronze , Gold Plated |
| Protection Class: | IP67 | Application: | PCB , Automotive/automation/industry/LED Etc |
| Rated Current: | 4A For 3/4/5/6 Pin, 2A For 8pin, 1.5A For 12/17pin |

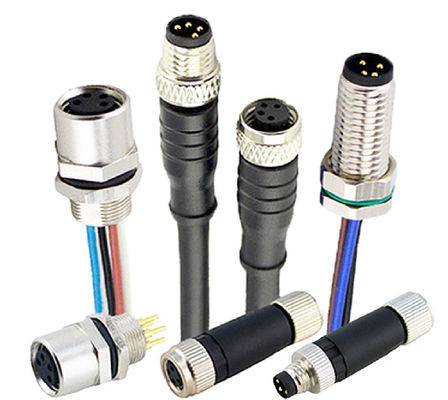

IP67 M12 M8 3 4 5 6 12 17 PIN Panel mount soldering type PCB waterproof Male to Female connector
Applications:
● Sensors, actuators, encoders, motors, industrial cameras, ships and other equipment
● Factory automation process control
●Packaging label printing equipment
● Industrial equipment
● EMS circuit board assembly
● Industrial safety grating light curtain
●Equipment batteries, semiconductors
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet,
● Ship electronics NMEA 2000, rail transit
● LED outdoor display, outdoor LED lighting
M/F AISG Ground pin PCB connector specifications:
| Model | M12 Circular connector |
| standard | IEC 60130-9 |
| Protection class | IP67 Epoxy Potting |
| connection mode: | threaded connection |
| contacts: | fully gold plated(0.2μm Min.) |
| Contact material: | Shell Nickel Plating / Ternary Alloy |
| PIN: | 3. 4 5 6 7 8 9 13 17 pins |
| Electrical parameters: | |
| rated current: | 5A |
| rated Voltage: | 250V |
| contact resistance: | 5mΩ(Max.) |
| insulation resistance: | 1010Ω(Min.) |
| Pressure resistance: | 1200Vrms.1min.(60Hz) |
