Product Details:
Payment & Shipping Terms:
|
| Material: | METAL | Gender: | Male To Female |
|---|---|---|---|
| Pin: | Multipole Pins | Application: | Automotive |
| Size: | M12 | IP Rating: | IP66,IP68 |
| High Light: | IP68 PCB Cable Connector,M12 Waterproof PCB Cable Connector,RJ45 Cable M12 Circular Connector |
||

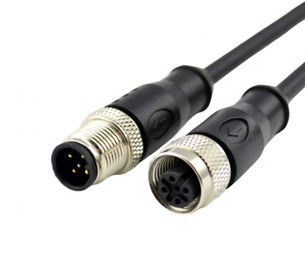

8 pin wire X code PCB cable connector M12 waterproof panel mount RJ45 cable M12 connector
Available Description:
Shielded is available
Hexagon screw is available
Stainless steel screw is available
Anti-vibration locking screw design
IP67/IP68, RoHS, REACH, UL certificate
Generally Description:
Connector Series: M12
Standard: IEC 61076-2-101
Coding: A
Pins: 3
Gender: Male
Connector Design: Cable plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25℃~+85℃
Material:
Connector Body: PA66+GF
Contacts: Brass with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Electrical data:
Rated Current: 4A
Rated Voltage: 250V
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
| Product Name | m12 connector X code 8Pin to RJ45 8P8C industrial CCD camera cable | ||
| Brand Name | Aovlex-link | Model Number | AC6502-10-00 |
| Length | 1.0M | Application |
Cat6A high-speed 10Gbitrugged,industrial, Ethernet applicatons |
| Connector | M12 8pin,Male | Wire | Cat5eAWG26*8P OD6.8mm |
| RJ45 8P8C | PVC | ||
| Shielding: | braid | Color | Blue |
| MOQ | 300 pcs | Customization | OEM/ODM |
| Packaging | Polybag | Weight | 397g~ |
| Certification | ROHS | Warranty | 2 years |
| Specification | |||
| 1)Connections used for various high speed camera | |||
| 2)Standard cable based on camera link | |||
| 3)Superior signal integrity | |||
| 4)Overmolding provides robust strength and durability | |||
| 5)100% tested for functionality | |||
| 6)RoHS and RACH compliant | |||
