Product Details:
Payment & Shipping Terms:
|
| Max Withstand Volt: | AC 500 Volts | Pin: | 44 Pin |
|---|---|---|---|
| Electrical Character: | PBT UL94V-0 | Housing: | ABS UL94V-0 |
| Keywords: | 3M Scsi D-sub | Operating Tempert: | -55℃ To +105℃ |
| Model: | VGA D SUB Connector | Application: | PCB |
| Material: | PBT/Brass/Copper Alloy | Insulation Resistance: | 3000MΩ Min/500V DC |
| High Light: | Black 25 Pin D Sub Male Connector,DB15 25 Pin D Sub Male Connector,DB9 DB Header Socket |
||

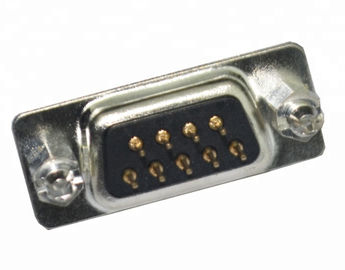

Black Gray Colorized color HDP Three Row DB Header Socket D Sub Connector
Technical Specifications:
| Item | D sub waterproof connector |
| Feature: | accompliance with IEC60807-2 waterproof series, With locking and with screen contact type |
| flexiable installation way, Various locking elements and cable clamps and outlet boxes | |
| Series inclusion: | Divide into A,B,C ,E mode according to the shell number, contacting elements include mixture and signal types. |
| Base material: | PBT exterior shell: PBT or PA |
| exterior shell and surface treatment: | Front nickel plated, thick tin plated |
| Contact: | Copper alloy, solderable wire, soldering plate, all gold plated or can be customized |
| Termination method | Flexible press-in, substrate welding, wire bonding, etc. |
| waterproof grade: | IP67, IP65 and can be customized |
| Main Technical parameters: | |
| Working Voltage: | 300V |
| Rated Current: | 30A/ 40A |
| Pressure resistance: | 1000V |
| Insulation resistance | ≥2000MΩ |
| working temperature: | -45C°-125C° |
| Contact resistance: | ≤0.004Ω |
| Flame retardant grade: | UL94V-0 |
| Life: | 500 times |
