IEC 62196-2 Type 2 EV Charging Cable 16A 32A 3-Phase 22kW Electric Vehicle Charger Plug for EVSE Station

IEC 62196-2 Type 2 EV Charging Cable 16A 32A 3-Phase 22kW Electric Vehicle Charger Plug for EVSE Station

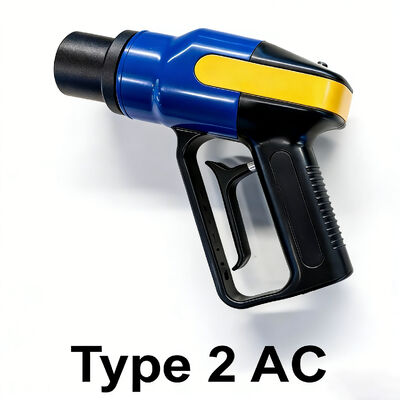

Type 2 AC Charger

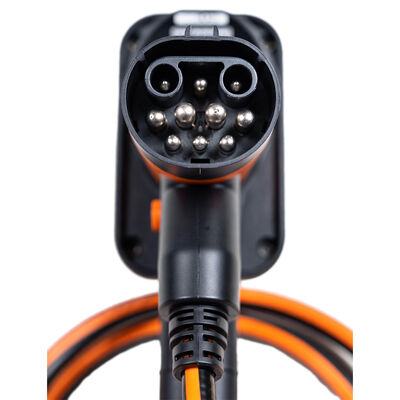

This is a common AC charging standard in Europe, characterized by a 7-pin (or sometimes 5-pin) connector, it supports single-phase or three-phase AC charging and is widely used for home and public charging stations.

Features 1: Strictly complies with the IEC 62196-2 (Type 2 / Mennekes) standard.

---Perfectly compatible with mainstream electric vehicles in the European market (such as Tesla, BMW, Volkswagen, Audi, Renault, etc.). Features a 7-pin configuration and supports both single-phase and three-phase charging.

Features 2: High-performance power delivery, which supports 43kW(63A) super-high power transimission.

---With flexible coverage across multiple specifications—16A, 32A, and 63A—and charging power ranging from 7.4 kW (single-phase) to 22 kW/43 kW (three-phase), it meets all charging needs, from home slow charging to commercial fast charging.

Features 3: Industrial-grade durability with over 10,000times plug-in/out merchanical lifespan.

---Constructed from high-strength housing materials, it offers exceptional mechanical performance; with a voltage withstand rating of up to 2000V, it ensures stable connections even under long-term, frequent use, thereby reducing operators’ long-term maintenance costs.

Features 4: Robust Environmental Protection on IP44 Rating and Wide Operating Temperature Range.
---Capable of operating normally in extreme climates ranging from -30°C to +50°C. Charging safety is guaranteed whether in frigid winters or tropical summers. The housing offers excellent dust and water resistance.

Features 5: Enhanced Safety Features: High Insulation Resistance (>1000 MΩ) and Low Temperature Rise Control (<50 K).

1) Lower heat generation: Temperature rise is kept within 50K during full-load operation, effectively extending cable life and preventing the risk of overheating;

2) Smart Commnuication: Integrates PWM (Control Pilot) control signals to enable a precise handshake protocol between the charging station and the vehicle, ensuring that current is transmitted safely.

Dongguan Ritian Communication Technology Co., Ltd.

Founded in January 2009, Dongguan Ritian Communication Technology Co., Ltd. is a premier domestic connector manufacturer dedicated to the design and development of connection system solutions, operating a nearly 2,000㎡ production facility.

Our comprehensive product portfolio encompasses high-frequency, low-frequency, fiber-optic, industrial, and high-speed connectors, alongside a full range of cable assemblies including RF, signal, power, fiber-optic, and automotive wiring harnesses. Most products are UL and TUV certified, fully compliant with IEC international and domestic industry standards, serving diverse sectors such as data communication, industrial control, new energy, medical electronics, equipment manufacturing, military aerospace, and automotive systems, with exports to North/South America, Europe, East Asia, and Southeast Asia.

We hold ISO 9001, IATF 16949, ISO 13485, and GJB 9001B certifications, as well as Class III Confidentiality Qualification and Military Production License for Weaponry R&D. Backed by a 30+ member R&D team with 7 national patents, a complete industrial chain, and advanced testing laboratories, we deliver reliable, high-quality products and end-to-end solutions to global clients.

Connector & Cable Assembly FAQ

Q1: Can your connectors/cable assemblies be customized? What is the minimum order quantity (MOQ)?

A: We support full-category customization, and can provide exclusive design and prototyping according to your drawings, parameters (electrical/mechanical/environmental performance) and application scenarios (such as military/automotive/medical). The MOQ for standard products is as low as 500pcs, and the MOQ for customized parts is negotiated based on product complexity. We accept both small-batch trial orders and large-volume orders.

Q2: What is the service life, temperature resistance, waterproof and other environmental performance of the products?

A: The full range of products can provide different protection levels (such as IP67/IP68 waterproof), wide temperature range (-40℃~+85℃ and above), high vibration/impact resistance as required. All products have passed the full electrical, mechanical and environmental performance tests in the laboratory, ensuring long-term stable use in complex working conditions such as industry, military and automotive.

Q3: What are the application fields of your products? Are they suitable for my industry?

A: Our core coverage includes 7 major fields: data communication, industrial control, new energy, medical electronics, equipment manufacturing, military supporting, and automotive wiring harness. High-frequency/low-frequency/fiber-optic/industrial/high-speed connectors and various cable assemblies can meet the stringent requirements of industrial automation, new energy vehicles, medical equipment, military equipment and other segmented scenarios.

Q4: What are the production lead times for standard and customized products?

A: The regular lead time for standard products is 3-7 working days; the prototyping cycle for customized parts is 7-15 working days, and the mass production cycle is 15-30 working days. We can coordinate priority production scheduling according to your urgent order requirements.


Q5: What is the product quality control process? How to ensure quality?

A: From mold design, raw material procurement, production and processing to finished product delivery, the whole process is strictly controlled. Equipped with professional online testing equipment and modern laboratories, 100% full inspection of electrical, mechanical and environmental performance ensures stable and reliable product quality. Complete test reports and quality traceability are available after sales.
