| Interface Type: | USB 3.0 Micro-B Male To Type A Male | Locking Mechanism: | Dual-Ended Industrial Screw Locks (Anti-vibration) |
|---|---|---|---|
| Cable Gauge: | 28 AWG (Standard Options Available) | Working Environment: | -40℃ ~ +80℃(Anti-brittle Low-temp Resistance) |
| Series: | Industrial Lock Series (anti-loosening) | Contact Material: | Phosphor Bronze / Beryllium Copper (High-end) |
| Plating: | Dual-layer Gold + Nickel Plating (Anti-corrosion) | Insulator Material: | PPS (Polyphenylene Sulfide) Or LCP (Liquid Crystal Polymer) |
| Compatibility: | Fully Backwards Compatible With USB 2.0 |

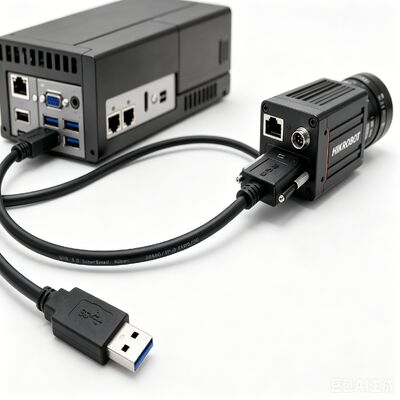

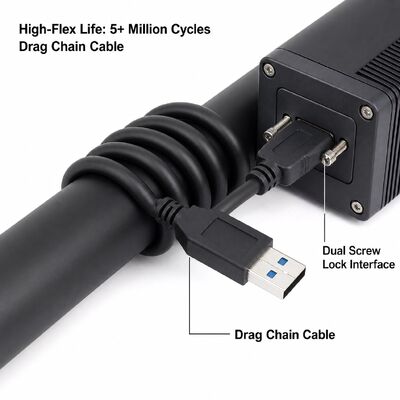

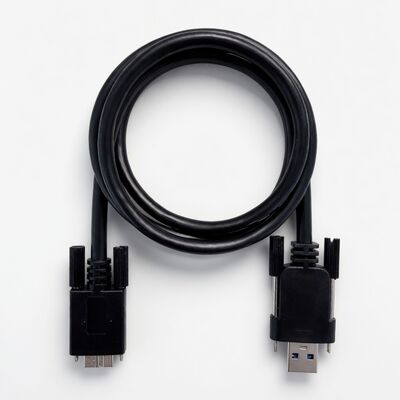

This high-flex industrial USB 3.0 Micro-B to Type-A vision camera cable features dual screw locks, perfectly designed for machine vision systems, factory automation, and dynamic drag chain applications.
A high-performance, ruggedized USB 3.0 interconnect solution specifically engineered for machine vision applications. This cable features a specialized Industrial Lock mechanism to prevent accidental disconnection in high-vibration environments. Built with high-flex materials and premium shielding, it ensures stable data transmission for industrial cameras and frame grabbers under extreme temperatures and harsh industrial conditions.
| Parameter | Specification |
|---|---|
| Product Category | USB 3.0 Industrial Vision Cable (Standard / High-Flex Type) |
| Operating Temperature | -40°C ~ +80°C (Wide temperature range, resistant to cold and heat cracking, suitable for harsh environments) |
| Product Series | Industrial Lock Series (Anti-vibration and anti-loosening design) |
| Contact Material | Base: Phosphor Bronze / Beryllium Bronze (High-end) Plating: Gold + Palladium-Nickel Double Protection (Corrosion Resistant) |
| Insulator Material | PPS (Polyphenylene Sulfide) or LCP (Liquid Crystal Polymer) (High temperature resistant, low moisture absorption, suitable for dusty environments) |
| Model / Specification | USB 3.0 Micro-B (Male) to Type-A (Male) Wire Gauge: 28AWG, Backward Compatible with USB 2.0 |

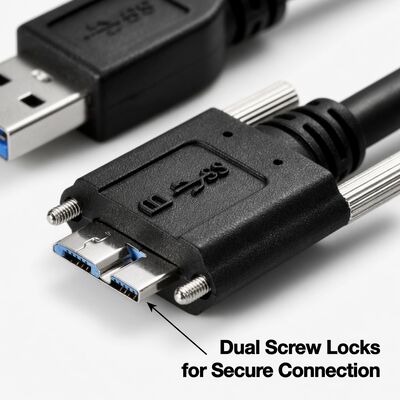

| Connector Type | Micro-B Male + Type-A Male (Double-ended with screw locking) |
• High-speed connection between industrial cameras and vision acquisition cards.
• Fixed or dynamic equipment routing in high-vibration automation environments.
• Cost-effective, high-compatibility short-distance data transmission for robotic arms and AOI equipment.
A: We support full-category customization, providing exclusive designs and prototyping according to your drawings, technical parameters (electrical/mechanical/environmental performance), and specific application scenarios (such as aerospace, automotive, or medical electronics). The MOQ for standard products is as low as 500pcs, and the MOQ for customized parts is negotiable based on product complexity. We accept both small-batch trial orders and large-volume wholesale orders.
A: Our full range of products can provide tailored protection levels (such as IP67/IP68 waterproof ratings), wide operating temperature ranges (-40℃ to +85℃ and above), and robust vibration/impact resistance as required. All items have passed comprehensive electrical, mechanical, and environmental performance laboratory tests, ensuring long-term stable operations in complex industrial, medical, and aerospace conditions.
We provide turnkey OEM ODM services for industrial camera IO cables, trigger cables, and power harnesses.
