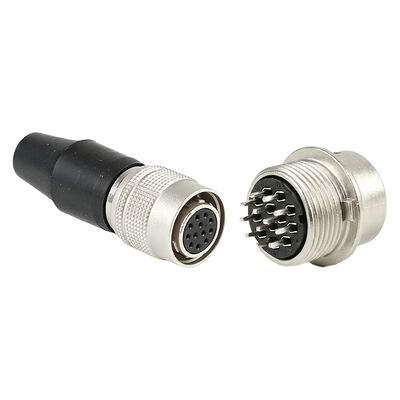

HR10A-10R-12PB Compatible 12-Pin Miniature Circular Connector Solder Type Receptacle

Product Overview

Looking for a cost-effective alternative to Hirose HR10A connectors without sacrificing industrial-grade reliability? RitianLink proudly delivers a fully compatible, premium 12-pin circular connector receptacle designed to seamlessly replace original Hirose components at a fraction of the cost. Engineered with a secure push-pull coupling mechanism for fast, vibration-resistant latching, this miniature connector ensures flawless data and power transmission for high-end vision systems. Beyond standard components, we offer robust OEM/ODM customization capabilities, allowing us to provide tailored cable assemblies and bespoke pinout configurations to meet your exact engineering specifications.

Figure 1: Full assembly view of the 12-pin solder receptacle, including anti-rotation lock washer and precision hex nut for secure panel mounting.

Technical Parameters

Key Features

Figure 2: Real-world application showing RitianLink's cost-effective HR10A alternative connector seamlessly mating with a high-speed industrial vision camera.

Hirose HR10A Series Cross-Reference & Compatibility List

Our premium circular connectors are engineered to be 100% physically, mechanically, and functionally interchangeable with the following Hirose original part numbers. Check the cross-reference list below to find your required model:

Guaranteed Seamless Integration with Leading Camera Brands

This 12-pin push-pull connector is critical for providing power supply, analog video streams, and GPIO trigger signaling. It has been field-tested and proven fully compatible with the following industrial camera series:

• Basler: ace series (e.g., acA1300, acA1920) and aviator/pilot series GigE / Camera Link cameras.
• FLIR / Point Grey: Grasshopper and Flea series high-performance imaging systems.
• Hikvision / Daheng Imaging: Standard 12-pin I/O interfaces tailored for factory automation inspection.
• Sony: XC series (e.g., XC-HR50, XC-HR70) industrial CCD cameras.

FREQUENTLY ASKED QUESTIONS

Q1: Is your HR10A series connector fully compatible with the original Hirose brand?
A: Yes, absolutely. Our connectors are engineered in strict accordance with standard industry specifications. They feature a 1:1 precise mechanical design, making them 100% intermateable and interchangeable with original Hirose parts like HR10A-10R-12PB(71). You can seamlessly swap them into your vision systems without any performance drop.

Q2: Can you provide customized pinouts and complete cable harness assemblies?
A: Yes. We run an advanced, specialized facility for custom cable assemblies. We can build turnkey 12-pin industrial camera I/O cables, power trigger cables, and communication bundles tailored precisely to your specific wiring diagram and length requirements.

Q3: What is your Minimum Order Quantity (MOQ) and typical delivery lead time?
A: For standard stock items like our 10-pin and 12-pin receptacles, the MOQ is flexible (typically 10-50 pieces) to support your engineering prototype phase. For regular bulk wholesale orders or custom wiring projects, the production lead time ranges from 7 to 15 business days.
Q4: How can I request a technical drawing, 3D STEP file, or product evaluation samples?
A: We fully support engineers during the design-in phase. To request technical datasheets, 3D CAD files (STEP models), or sample connectors for quality testing, simply click our inquiry button below or contact our sales team. We will respond with the required technical assets within 24 hours.
