Product Details:
Payment & Shipping Terms:
|
| Product Name: | 12-Pin Female Circular Connector | Pin Counts: | 12 Pins+12 Cores Base Socket |
|---|---|---|---|
| Connector Type: | Hirose Circular Connectors | Working Temperature: | -40℃~+80℃ |
| Contact Material: | C5911 | Insulator Material: | PBT(black) |
| Application Features: | Industrial Camera Power-triggered I/O Cable (12-pin, 12-conductor) |

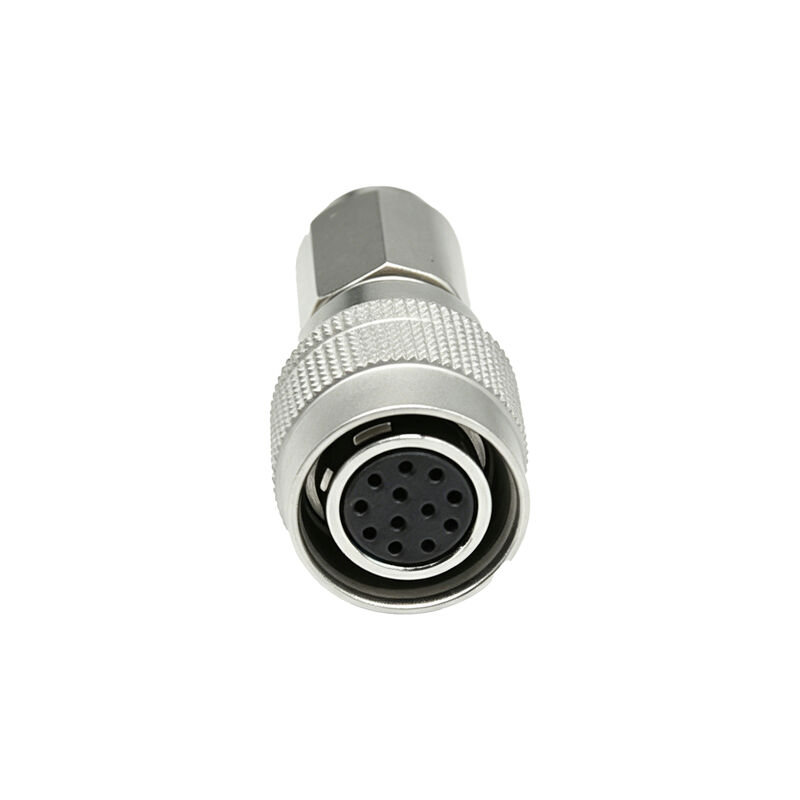

Buy HR10A-10P-12S alternative 12 pin female circular connector. This push pull plug is 100% compatible with Hirose HR10A series for industrial cameras.
Technical Parameters & DataSheet
| Parameter Component | Specification Details | Industrial Standard / Keyword |
|---|---|---|
| Product Series | HR10A Series Equivalent | Cross reference for Hirose HR10A series |
| Part Number Match | Exact Match for HR10A-10P-12S (73) | Drop-in replacement for Hirose HR10A-10P-12S |
| Number of Contacts | 12 Pins | 12 pin circular connector push pull plug |
| Gender | Female Jack / Plug | Hirose HR10A 12 pin female plug replacement |
| Shell Size & Type | Size 10, Circular Shell | 12 pin female circular connector |
| Locking Mechanism | Push-Pull Self-Latching | IP50 rated push pull connector 12 pin |
| Termination Method | Solder Type | Solder type 12 pin female circular connector |
| Rated Current | 2A per contact | Industrial camera 12 pin power data connector |
| Rated Voltage | AC 150V / DC 200V | Machine Vision & Medical Grade |
| Withstanding Voltage | AC 500V (for 1 minute) | High Insulation Safety |
| Insulation Resistance | ≥ 1000 MΩ (at DC 100V) | Anti-Interference Data Transmission |
| Contact Resistance | ≤ 15 mΩ (at DC 1A) | Low Attenuation Signal Quality |
| Mating Durability | ≥ 1,000 Cycles | High mating cycles industrial 12 pin plug |
| Operating Temp Range | -25°C to +85°C | Industrial Grade Environmental |
| Environmental Compliance | Lead-Free, RoHS Certified | RoHS compliant 12 pin circular connector |
Compatible Harness Assemblies
This connector is fully tested and qualified for manufacturing high-spec custom cables, including:
Q1: Is this connector 100% interchangeable with the original Hirose HR10A-10P-12S?
A: Yes. This is a premium-quality cross reference for Hirose HR10A series. It features the exact same dimensions, pin assignment, and mechanical structure, serving as a direct drop-in replacement for Hirose HR10A-10P-12S (73). It is fully compatible with Hirose 12-pin male receptacles on any device.
Q2: Can this 12-pin connector be used for Basler or FLIR industrial cameras?
A: Absolutely. This industrial camera 12 pin power data connector is engineered specifically for machine vision systems. It perfectly matches the requirements for a Basler camera 12 pin power supply connector and a FLIR industrial camera 12-pin I/O cable plug, ensuring stable power and high-speed data transmission without signal loss.
Q3: What are the environmental and durability ratings of this push-pull plug?
A: This is a high mating cycles industrial 12 pin plug designed to withstand over 1,000 mating cycles. It is an IP50 rated push pull connector 12 pin, meaning it offers excellent dust protection for indoor industrial automation environments. Additionally, the entire assembly is a RoHS compliant 12 pin circular connector.
Q4: What is the termination method for this 12-pin female connector?
A: This is a solder type 12 pin female circular connector. The internal contacts are designed for precise soldering, making it ideal for creating custom medical ultrasound probe 12 pin connectors or specialized machine vision frame grabber 12pin cable assemblies.
Q5: Do you provide samples for engineering qualification and testing?
A: Yes, we support B2B engineering verification. If you need to test this 12 pin circular connector push pull plug for compatibility in your project, please contact our sales team to request qualification samples and technical datasheets.
