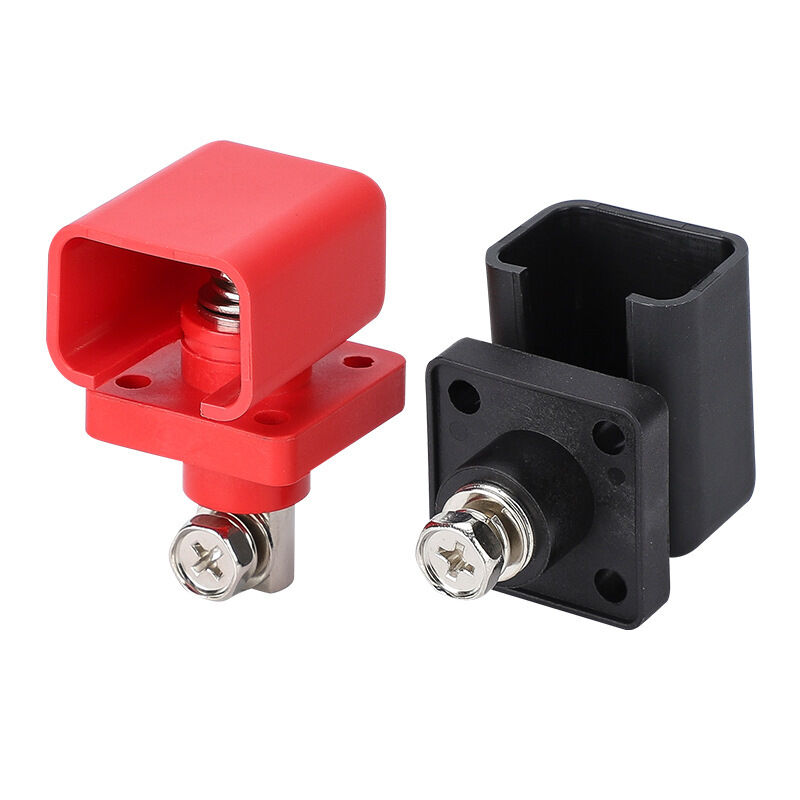

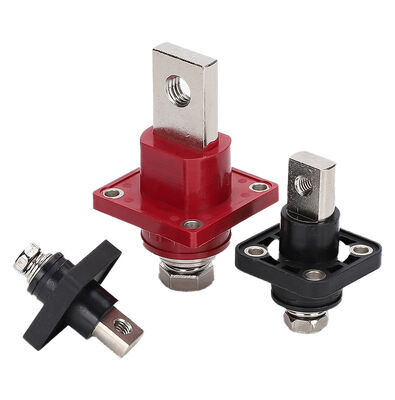

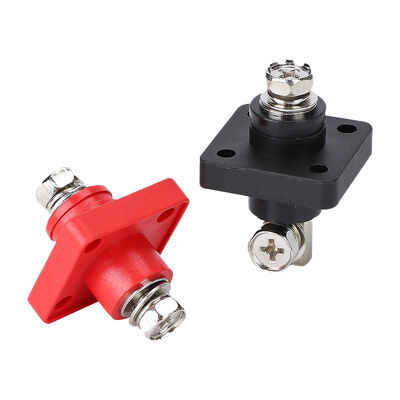

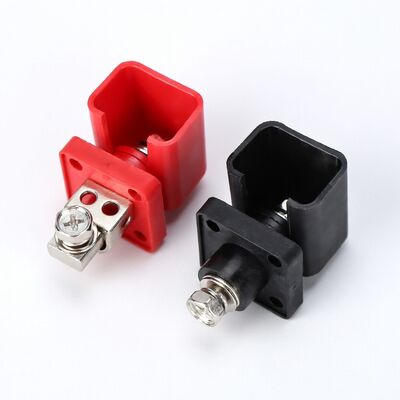

120A Square Battery Terminal Post - IP67 Waterproof Energy Storage Connector

120A Square Battery Terminal Post - IP67 Waterproof Energy Storage Connector

Product Definition

The 120A Square Battery Terminal Post is a professional-grade power connection solution specifically developed for modern energy storage systems. Built with a high-purity copper conductor and nickel plating, it delivers excellent conductivity and corrosion resistance while supporting continuous 120A current and 1000VDC voltage.

Key Advantages

• Full copper conductor with nickel plating for superior conductivity
• IP67 waterproof protection with sealing gasket
• High safety – UL94-V0 flame retardant
• Compact square design saves space in battery cabinets
• Easy installation and maintenance

Core Value / Selling Points

• High Current Capacity: Rated 120A continuous, suitable for high-power energy storage applications.
• Excellent Safety: UL94-V0 flame retardant + 3000VAC dielectric strength.
• Superior Protection: IP67 waterproof and dustproof, ideal for indoor/outdoor use.
• Reliable Conductivity: Nickel-plated brass/copper terminal ensures low resistance and anti-corrosion performance.
• Durable & Wide Temperature Range: Operates reliably from -40°C to 105°C.

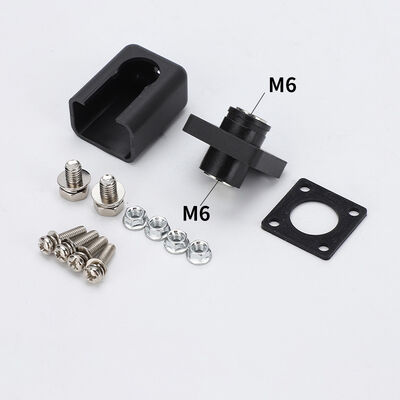

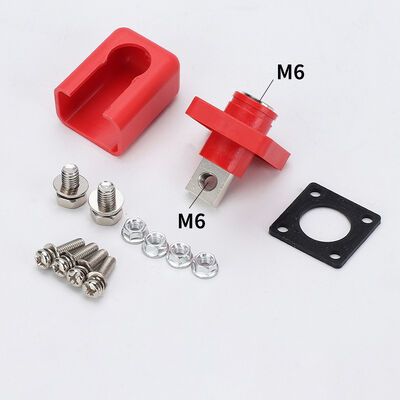

• Easy Installation: Square flange with 4 mounting holes + M4 screws.

Parameter Technical details:

Usage Scenarios & Application Range

• Energy Storage Systems (ESS): Home solar storage, commercial & industrial battery cabinets
• Lithium Battery Packs: Connection between battery modules and BMS/inverters
• Photovoltaic & Solar Energy: DC side connection of inverters and combiner boxes
• UPS and Data Centers: High-current backup power systems
• Electric Vehicle Charging Stations: DC distribution terminals
• Telecom Base Stations: Power distribution terminals
• Marine and RV Battery Systems: Where waterproof performance is critical

Especially suitable for battery cabinet manufacturers, ESS integrators, and solar energy system assemblers.

Core Value & Benefits:

• High Current Capacity: Safely handles 300-400A continuous current with minimal voltage drop.
• Through-Wall Design: Enables clean, professional cable routing through enclosures while maintaining seal integrity.
• Safety & Protection: Snap-on round cap + insulated body reduces risks of accidental contact and environmental damage.
• Durability: Wide operating temperature (-40°C to +125°C), high insulation voltage (1500V DC), and flame-retardant PA66 material.
• Easy Installation: Flange mounting with screw holes; compatible with standard cable lugs.
• Professional Appearance: Clean, compact design suitable for visible or OEM installations.
• Cost Efficiency: Reliable performance reduces maintenance and failure risks in critical power systems.
