Product Overview

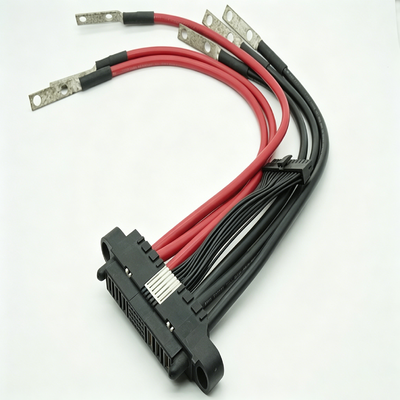

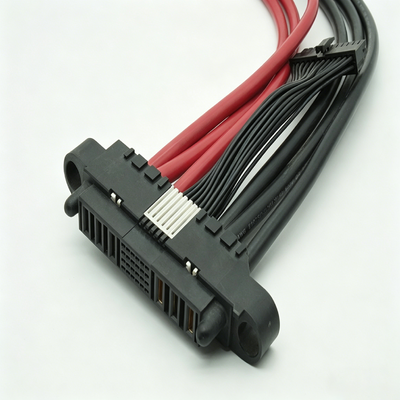

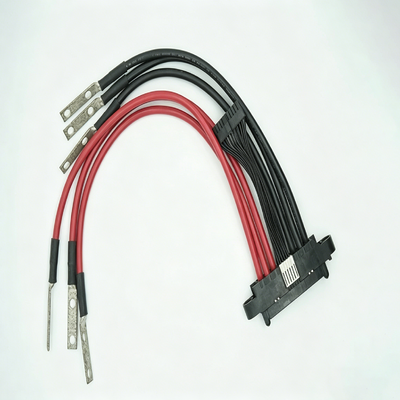

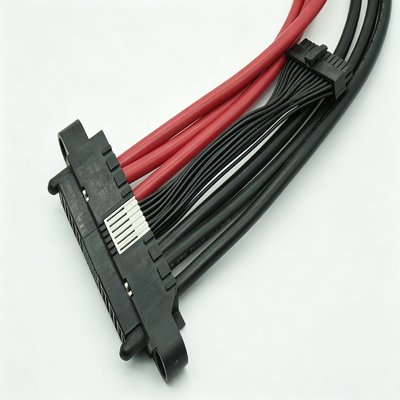

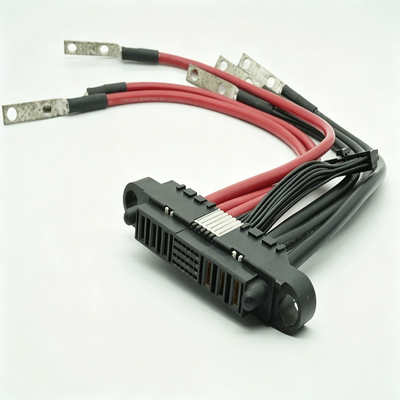

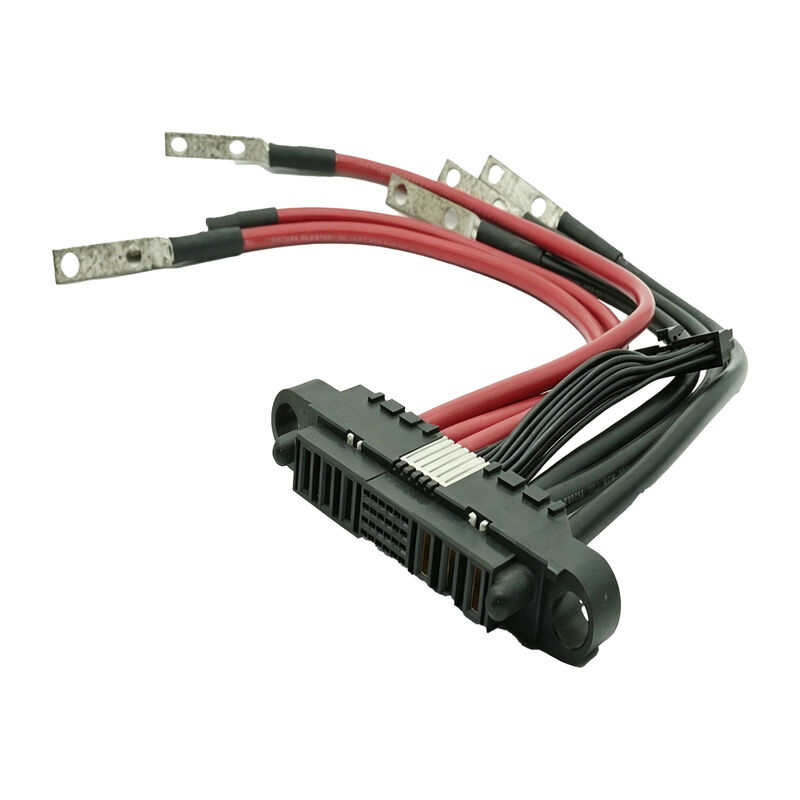

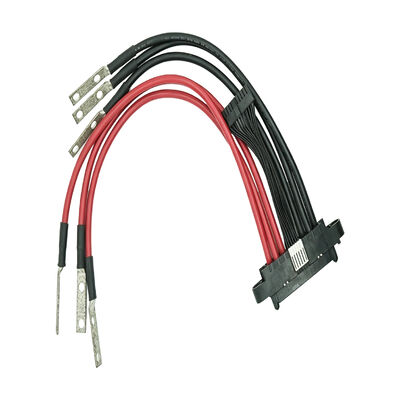

RT-IPM24A-01 is a high-performance 15-Pin 24A New Energy Power Connector Module integrated with a heavy-duty cable assembly. Engineered specifically for harsh-environment industrial vehicle electronics, this hybrid connector provides an all-in-one solution for simultaneous power and signal transmission in modern electric mobility systems.

Key Features & Benefits

• 15-Pin Hybrid Layout (Pins 1-15): Combines reliable 24A power transmission and low-loss control signal channels in a single compact interface, reducing wiring complexity.

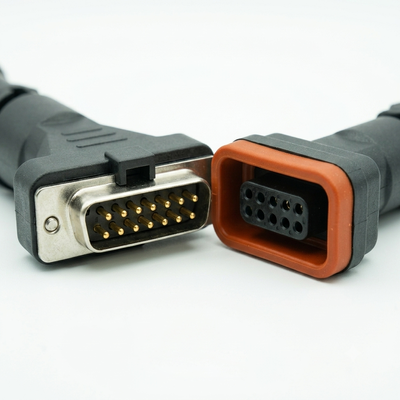

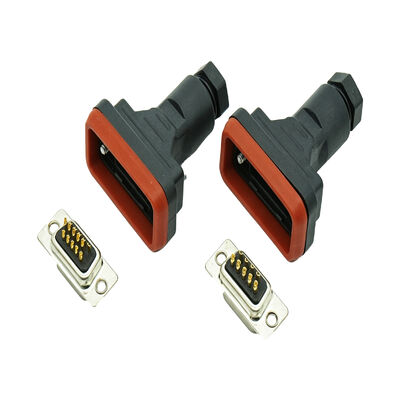

• IP67 Waterproofing: Features a premium red-brown silicone gasket sealing ring that prevents dust, moisture, and fluid ingress under harsh outdoor conditions.
• Vibration-Proof Locking Mechanism: Built with robust industrial locking tabs to ensure uninterrupted electrical connectivity in high-vibration applications.
• Gold-Plated Pins: Superior gold plating on contacts guarantees ultra-low contact resistance and prevents oxidation over extended lifecycles.
• Custom Cable Assembly: The overmolded tail structure with robust strain relief protects internal wire connections from mechanical pulling and bending stress.

Technical Parameters

Application Scenarios

• AGVs & AMRs: Automated Guided Vehicles and Autonomous Mobile Robots power management.
• Electric Forklifts & Material Handling: Heavy-duty industrial vehicle battery pack connectivity.
• New Energy Vehicle (NEV) Electronics: Power distribution modules, IPM units, and onboard charging (OBC) systems.
• Industrial Automation Equipment: Ruggedized control boxes requiring waterproof power-signal hybrid interfaces.

Frequently Asking Questions (FAQ)

Q1: Can the cable length and wire gauge (AWG) of this 15-Pin connector assembly be customized?

A1: Yes, absolutely. As an OEM/ODM industrial connector manufacturer, we offer full customization for cable length, wire gauges (e.g., combining high-power AWG lines with signal wires), jacket materials (PUR, PVC, or Teflon), and adding protective corrugated tubes to meet your specific application requirements.

Q2: What are the primary applications for this hybrid power and signal connector?

A2: This 15-pin (Pins 1-15 layout) hybrid module is engineered for modern electric mobility and automation. It is widely used in Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), electric forklift battery management systems (BMS), New Energy Vehicle (NEV) electronics, and rugged industrial control systems.

Q3: Are the contacts of the RT-IPM24A-01 connector module gold-plated?

A3: Yes, all 15 pins feature high-conductivity copper alloy with premium gold plating. This ensures ultra-low contact resistance, prevents oxidation and fretting corrosion over extended lifecycles, and guarantees stable data signal and power transmission.

Q4: What is the operating temperature range and flame-retardant rating of this module?

A4: The module is designed for harsh environments with an operating temperature range of -40°C to +125°C. The housing material is made of high-grade engineering thermoplastic that complies with the UL94 V-0 flame-retardant standard, ensuring maximum safety in high-voltage or high-temperature vehicle electronics.

Q5: What is your Minimum Order Quantity (MOQ) and lead time for wholesale/custom orders?

A5: For standard configurations, our MOQ is flexible (typically 100-500 pieces depending on cable specs). Sampling usually takes 5-7 business days, while bulk production lead time ranges from 2 to 3 weeks. Please click "Request A Quote" to get a precise timeline and pricing based on your drawings.
