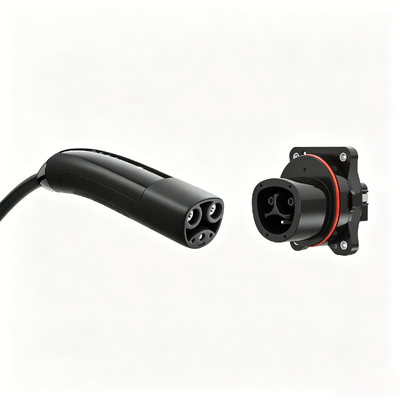

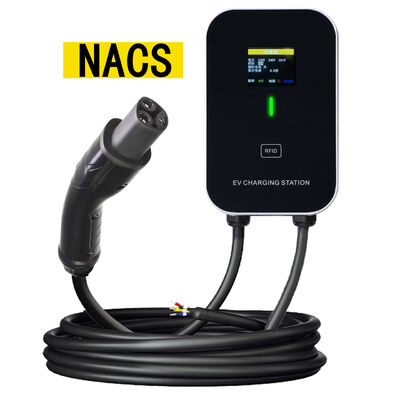

NACS Telsa 7kW / 11kW / 22kW AC EV Charging Connector Station For New Energy Electric Vehicles

NACS Telsa 7kW / 11kW / 22kW AC EV Charging Connector Station For New Energy Electric Vehicles

EV Charging Connector Description

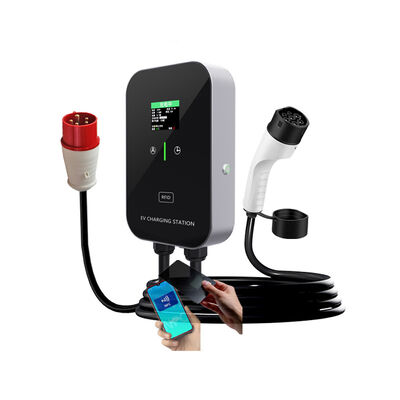

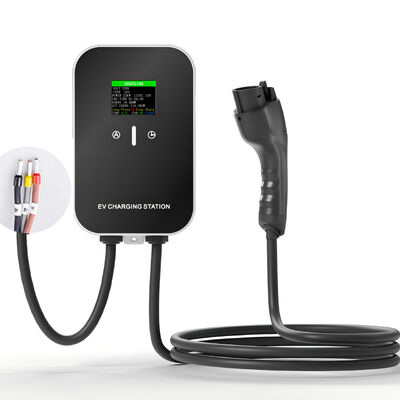

This is a wall-mounted or floor-standing AC (alternating current) electric vehicle (EV) charging station designed primarily for the European market and compatible regions. It supports Type 2 connectors (IEC 62196 standard, dominant in Europe) and mentions CCS2 compatibility (often referring to combined charging systems or cables). It delivers adjustable power output of 7kW, 11kW, or 22kW, making it suitable for residential, semi-public, and light commercial charging of plug-in electric vehicles (BEVs and PHEVs). It is a smart charger often featuring app control, RFID, or OCPP protocol for remote management, energy monitoring, and scheduled charging

#Keywords

EV wallbox charger

Type 2 EV charger

Type 2 wallbox

AC EV charger 11kW

22kW EV charger

7kW EV wall charger

European EV charger Type 2

EV charger installation kit Type 2

EV charging station supplier Europe

7kW 11kW 22kW EV charger

Parameters Table (Typical Specifications for 7/11/22kW Models)

Highlighting Benefits

• Fast & Flexible Charging: Choose from 7kW (overnight home charging), 11kW (faster residential), or 22kW (quick commercial AC charging) — adds significant range per hour (e.g., 7kW ≈ 30-40 km/h for many EVs).
• European Market Ready: Type 2 / CCS2 standard compatibility with 95%+ of European EVs (e.g., VW, BMW, Mercedes, Tesla with adapter).
• Smart & User-Friendly: Remote app control, RFID for public access, scheduled charging to use off-peak electricity, and energy monitoring for cost savings.
• Robust & Safe: High IP rating for indoor/outdoor use, multiple safety protections, durable build for long-term reliability.
• Cost-Effective Wholesale: Ideal for cross-border export, B2B, installers, or EV fleet operators; customizable options.
• Eco-Friendly & Future-Proof: Supports green energy integration, OCPP for network integration, and meets growing EV adoption demands.
• Easy Installation & Maintenance: Compact design, professional wall/pedestal mount.

Suggestions for compatible with your usage

1. Type 2 (IEC 62196-2 European Standard AC, 7 pins): Consists of 3-phase lines L1/L2/L3, neutral line N, protective earth PE, control pilot CP, and proximity detection PP; supports single-phase charging up to 7.4kW, and maximum 22kW for 3-phase charging.

2. Type 1 (SAE J1772 US & Japanese Standard AC, 5 pins): Only supports single-phase wiring: L/N/PE/CP/PP; no 3-phase compatibility, with a maximum power of 7.4kW. It is the mainstream household charging standard in North America.

3. CCS2 (Combo 2, European DC Fast Charging): Evolved from Type 2 interface with 2 additional DC high-voltage pins; an integrated AC+DC dual-purpose interface, which is the global mainstream fast-charging standard for passenger EVs.

4. GB/T (China National Standard): 7 pins for AC charging, 9 pins for DC charging; adapted to China's domestic power grid, with communication protocol compliant with GB/T 27930. High-power liquid-cooled fast-charging technology is under continuous iteration.

5. NACS (SAE J3400 New North American Standard): Tesla's unified charging interface with integrated AC & DC functions. All North American automakers are fully switching to this standard, which is gradually replacing CCS1.

6. CHAdeMO (Japanese Standard): Legacy DC fast-charging interface. Only remains in existing vehicles in Japan domestically, and is being phased out globally.

Scenories for the CCS2 (Combo 2) DC charging connector

• Home / Residential Use: Install in garages or driveways for overnight charging of personal EVs. 7kW is ideal for single-phase household power; use off-peak rates for savings.
• Apartment Complexes & Multi-Unit Dwellings: Shared wall-mounted chargers with RFID/app access for residents.
• Commercial & Office Parking: 11/22kW for employee or customer charging; smart features enable billing and usage tracking.
• Fleet Operations: Light commercial fleets, car dealerships, or rental companies needing reliable AC charging for multiple vehicles.
• Public/Semi-Public Locations: Hotels, shopping centers, parking lots — durable outdoor-rated design with authentication.
• Cross-Border / Export Markets: Europe (EU), UK, Australia, and other Type 2-dominant regions; also suitable for global wholesale.

Connector & Cable Assembly FAQ

Q1: What is the power output options for this charger?

A: This AC EV wallbox charger is available in three power ratings: 7kW (single-phase), 11kW (three-phase), and 22kW (three-phase). You can choose the model based on your electrical supply and charging speed needs.

Q2: What connector type does it use? Is it compatible with my EV?

A: It uses the Type 2 (IEC 62196-2) connector, the European standard. It is also CCS2 compatible in many configurations. It works with most European EVs including Volkswagen ID series, BMW iX, Mercedes EQ, Tesla (with Type 2 adapter), Audi, Hyundai, Kia, Renault, Peugeot, and more. Over 95% of EVs in Europe are compatible.

Q3: Is this charger suitable for home or commercial use?

A: OYes. The 7kW model is ideal for home/residential use. The 11kW and 22kW models are perfect for both homes with three-phase power and commercial applications like offices, parking lots, hotels, and fleets.

Q4: How do I choose between 7kW, 11kW, and 22kW?

Answer ---

• Choose 7kW for standard home single-phase supply.
• Choose 11kW for faster home charging with three-phase power.
• Choose 22kW for commercial or very fast AC charging.
