Product Details:
Payment & Shipping Terms:
|
| Product Name: | Circular Aviation Connectors | Pin Counts: | 12 Pins+12 Cores Base Socket |
|---|---|---|---|
| Connector Type: | Hirose Circular Connectors | Working Temperature: | -40℃~+80℃ |
| Contact Material: | C5911 | Insulator Material: | PBT(black) |
| Application Features: | Industrial Camera Power-triggered I/O Cable (12-pin, 12-conductor) |

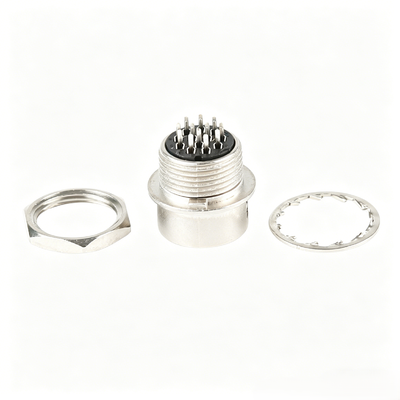

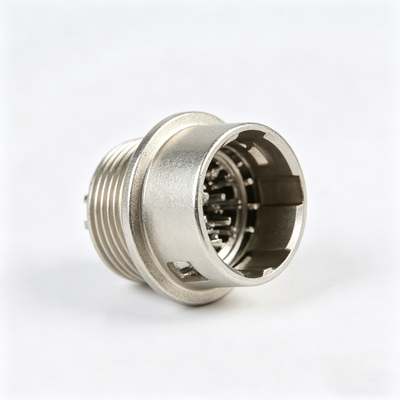

HR10A Series 12-Pin Circular Connector Male/Female Solder Type Receptacle for Industrial Cameras
Product Description
A precision-engineered, multi-pin miniature circular connector designed as a high-quality alternative to the Hirose HR10A series. It features a push-pull coupling mechanism for secure, space-saving connections in high-density industrial and imaging equipment.
Key Features
Precision Industrial Standard: Fully compatible with Hirose HR10A-10R-12PB(71) standards, ideal for machine vision and medical equipment.
High-Density 12-Pin Design: Supports multi-signal transmission in a compact form factor, perfect for limited-space applications.
Durable & Weatherproof: Features a robust metal shell that is waterproof, sun-proof, and operates reliably in temperatures from -40°C to +80°C.
Stable Signal Integrity: High-quality C5911 contact material ensures low resistance and long-term connection stability.
Technical Parameters
| Parameter Item | Specification Details |
| Model Number | HR10A_10R_12PB_71 (Compatible) |
| Connector Type | Circular Connector / Aviation Plug |
| Number of Contacts | 12 Pins |
| Termination Method | Solder Type |
| Operating Temperature | -40°C to +80°C |
| Contact Material | C5911 (Copper Alloy) |
| Insulator Material | PBT Black |
| Shell Color | Silver / Chrome |
| Application | Power, Trigger, and I/O for Industrial Cameras |
Application Scenarios
FAQ:
Q: What is the main purpose of this cable?
A: It connects industrial cameras to trigger sensors or controllers for synchronized image acquisition.
Q: Is the cable length customizable?
A: Yes, custom lengths and pin assignments are available, contact us for details.
Q: Is it compatible with Basler or Sony industrial cameras?
A: Yes, commonly used with HR series style or similar camera interfaces for power/trigger signals.
Q: Does it support waterproof applications?
A: Many variants are designed with IP-rated protection for harsh industrial environments—confirm with the specific listing.
Q: What is the minimum order quantity (MOQ)?
A: Typically 100pcs or customized from 1k pcs for trial orders.
Tags
HR10A-10R-12PB Connector, 12 Pin Industrial Camera Plug, Miniature Circular Connector
