Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector

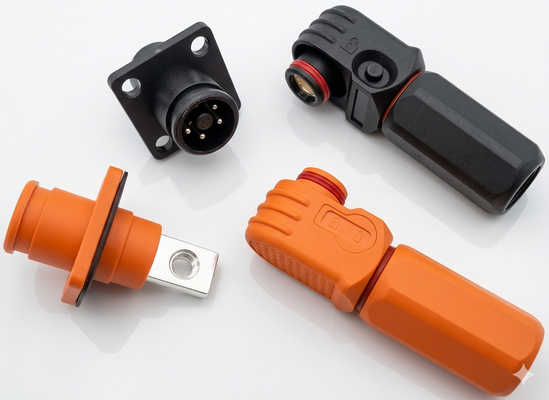

Large Image : Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector

Product Details:

Place of Origin:	China
Brand Name:	Ritian
Certification:	CE
Model Number:	RT-Φ6.0 Series

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Neutral Carton or Customized
Delivery Time:	5-8 days for the samples, 15-25 days for bulk
Payment Terms:	T/T
Supply Ability:	30000 PCS / Month

Contact Now

Detailed Product Description

Product Type:	Energy Storage Connector	Series:	Φ6.0 Series
Contact Type:	Power Connector	Gender:	Plug & Socket (Male/Female)
Contact Diameter:	6.0 Mm	Cable Size Range:	10 / 16 / 25 Mm²
Number Of Pins:	Single Pin (Power)	Shielding:	Non-shielded
Finger Protection:	IP2XB	Contact Material:	Copper Alloy (Typical)
Contact Plating:	Silver Plated / Customizable	Mounting Type:	Cable To Cable / Cable To Panel
Certification:	CE / RoHS (if Applicable)	Application:	Energy Storage / Battery / Solar / EV

Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector

Product Definition

The Φ6.0 Series Energy Storage Connector is a high-performance power interconnection solution designed for energy storage systems (ESS), battery packs, and high-voltage DC applications. Engineered for reliability under harsh environments, it supports up to 1500V DC and 120A current with IP67 protection in mated condition, ensuring safe, stable, and long-lasting electrical connections.

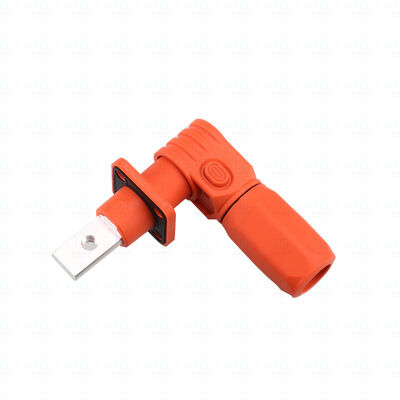

Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector 0

Item	Specification
Series	Φ6.0 Series Energy Storage Connector
1. Mating Cycles	≥ 500 cycles
2. Cable Range	10 / 16 / 25 mm² (non-shielded cables)
3. Insertion / Withdrawal Force	< 100 N
4. Rated Voltage	1500 V DC
5. Rated Current	60 A / 100 A / 120 A
6. Insulation Resistance	> 2000 MΩ
7. Withstand Voltage	3000 V AC
8. Protection Rating	IP67 (mated condition)
9. Finger Protection	IP2XB
10. Operating Temperature	-40°C ~ +125°C

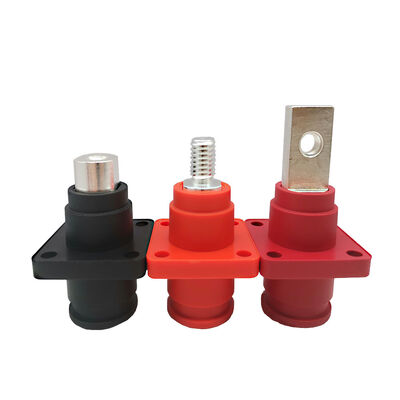

Φ6.0 Energy Storage Connector 1500V DC 120A IP67 High Current Power Connector 1
Key Features

High Voltage Capability: Rated up to 1500V DC, ideal for modern energy storage and renewable systems
High Current Performance: Supports 60A / 100A / 120A, meeting various power requirements
Excellent Environmental Protection: IP67 waterproof and dustproof when mated
Reliable Durability: ≥500 mating cycles for long service life
Strong Electrical Safety:

Insulation resistance >2000 MΩ
Withstand voltage up to 3000V AC

6. Wide Cable Compatibility: Supports 10 / 16 / 25 mm² non-shielded cables
7. Safe Touch Protection: Meets IP2XB finger protection standard
8. Extreme Temperature Resistance: Operates from -40°C to +125°C
9. Secure Connection: Insertion/withdrawal force <100N for stable and user-friendly operation

Male	Part Number	Specifications	Color
	RT11.00102-00A	RT-A6-K-001A (Black) 120A 25mm²	PA66-G15 (Black)
	RT11.00103-00A	RT-A6-K-001B (Orange) 120A 25mm²	PA66-G15 (Orange)
	RT11.00104-00A	RT-A6-K-001C (Red) 120A 25mm²	PA66-G15 (Red)
	RT11.00148-00A	RT-A6-K-001A (Black) 100A 16mm²	PA66-G15 (Black)
	RT11.00149-00A	RT-A6-K-001B (Orange) 100A 16mm²	PA66-G15 (Orange)
	RT11.00150-00A	RT-A6-K-001C (Red) 100A 16mm²	PA66-G15 (Red)
	RT11.00151-00A	RT-A6-K-001A (Black) 60A 10mm²	PA66-G15 (Black)
	RT11.00152-00A	RT-A6-K-001B (Orange) 60A 10mm²	PA66-G15 (Orange)
	RT11.00153-00A	RT-A6-K-001C (Red) 60A 10mm²	PA66-G15 (Red)

Female	Part Number	Specifications	Color
	RT11.00105-00A	RT-A6-J-001A (Black) 120A Socket	PA66-G15 (Black)
	RT11.00106-00A	RT-A6-J-001B (Orange) 120A Socket	PA66-G15 (Orange)
	RT11.00107-00A	RT-A6-J-001C (Red) 120A Socket	PA66-G15 (Red)

Application Scenarios

Energy Storage Systems (ESS): Battery modules, battery racks, and inverter connections
Renewable Energy: Solar power systems, photovoltaic storage, wind energy storage
Electric Vehicles & E-Mobility: Battery packs, electric motorcycles, low-speed EV systems
Industrial Power Equipment: Power distribution units, industrial automation systems
Charging Infrastructure: DC charging systems and high-power connectors
