50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors

50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors
50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors

Large Image :  50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors

Product Details:
Place of Origin: China
Brand Name: Ritian
Certification: CE
Model Number: LXX-50
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Neutral Carton or Customized
Delivery Time: 5-8 days for the samples, 15-25 days for bulk
Payment Terms: T/T
Supply Ability: 30000 PCS / Month
Contact Now
Detailed Product Description
Product Type: Energy Storage Assembly Cable Insulation: Orange Rubber, UV & Oil Resistant
Conductor Type: Tinned Copper Stranded Wire (Class 5/6) Connector A: Black PA66 90° Elbow, HVIL Red Button
Connector B: Orange PA66 Straight, Red Dust Cap Locking Mechanism: Threaded Nut + Bayonet Lock
Crimping Method: Rotary Crimp For Stranded Conductor Application: Battery Cluster / PCS/Inverter / Commercial & Industrial ESS / Outdoor Mobile ESS

50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors


Product Definition

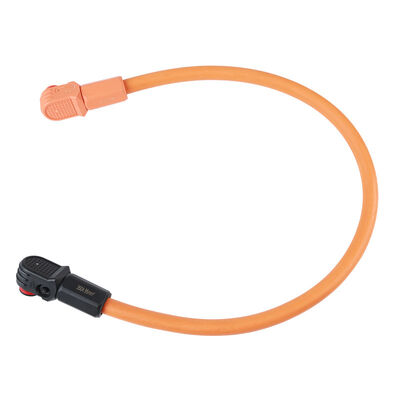

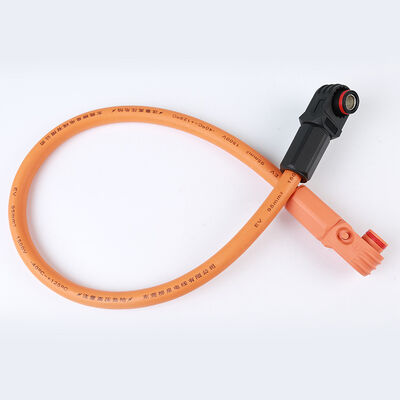

A high-performance dual-connector cable assembly designed for energy storage systems (ESS), featuring 50mm² flexible tinned copper conductor rated at 350A/DC1000V, with a wide operating temperature of -40°C~+125°C. Equipped with a black 90° elbow connector (with HVIL interlock button) and an orange straight connector (with dust cap), both IP65-sealed with red silicone O-rings. Suitable for battery cluster-to-PDU and PDU-to-inverter connections in commercial & industrial ESS applications.



50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 0




Technical Parameters



Parameter Value
Product Name Energy Storage Cable Assembly 50mm²
Model LXX-50
Conductor Cross-Section 50mm² (flexible stranded copper)
Cable Standard CCC / IEC
Rated Voltage DC 1000V / 1500V
Rated Current 350A
Temperature Range -40°C ~ +125°C
Cable Color Orange (Insulation)

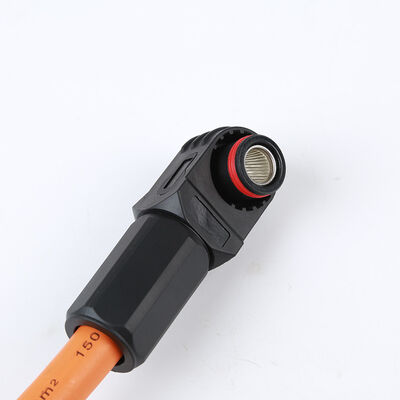

Connector A (Elbow) Black PA66, 90° elbow with HVIL button

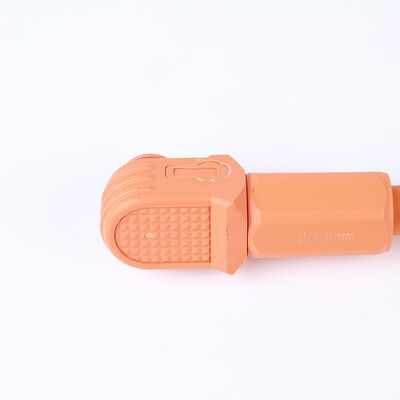

Connector B (Straight) Orange PA66, straight with dust cap
Sealing Ring Red silicone rubber O-ring
Protection Rating IP65
Flame Retardancy UL94 V-0
Cable Length Customizable (200mm–2000mm)
Conductor Material Tinned copper stranded wire
HVIL Interlock Yes (Red interlock button on black connector)
UV Resistance Yes
Application Energy Storage System (ESS)



50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 1


Key Features



  1. 350A High Current — Supports heavy-load power transmission between battery clusters and PDU
  2. HVIL Interlock Safety — Red interlock button on black connector ensures safe disconnect under high voltage
  3. -40°C~+125°C Wide Temp — Extreme temperature resilience for outdoor and harsh environments
  4. IP65 Waterproof & UV Resistant — Sealed connectors with silicone O-rings, UV-stable orange insulation for outdoor durability
  5. Dual-Connector Design — Black elbow + orange straight, matching different terminal types in ESS cabinets



50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 2




Application Scenarios



  • Battery Cluster → PDU — DC power bus inside ESS cabinet
  • PDU → PCS/Inverter — High-voltage DC link connection
  • Commercial & Industrial ESS — 100kWh–1MWh cabinet systems
  • Outdoor Mobile ESS — Containerized storage with UV/weather exposure

50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 3

50mm² Energy Storage Cable Assemblies 350A High-current IP67 Waterproof Integrated Battery-pack Connectors 4
