Product Details:
Payment & Shipping Terms:
|
| Product Name: | Type 1 EV Charging Connector | Standard: | SAE J1772 (Type 1) |
|---|---|---|---|
| Rated Current: | 16A / 32A | Rated Voltage: | 240V AC |
| Power Rating: | Max 7.4kW | Pin Configurations: | 5 Pins (L/N/PE/CP/PP) |
| Cable Length: | Customizable (3m / 5m / 10m Optional) | Waterproof: | IP54 / IP67 (optional) |
| Insulation Resistance: | >1000MΩ | Contact Resistance: | <0.5mΩ |
| Housing Material: | Thermoplastic (Flame Retardant) | Contact Material: | Copper Alloy With Silver Plating |
| Application: | EV Charging |

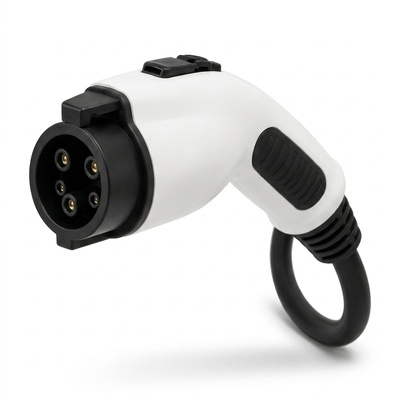

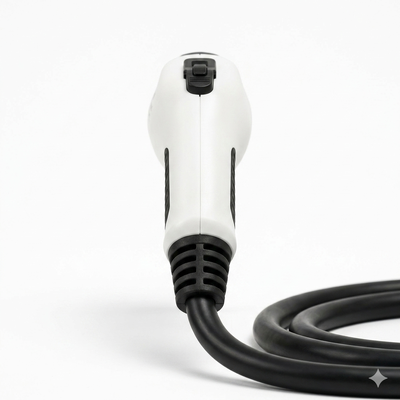

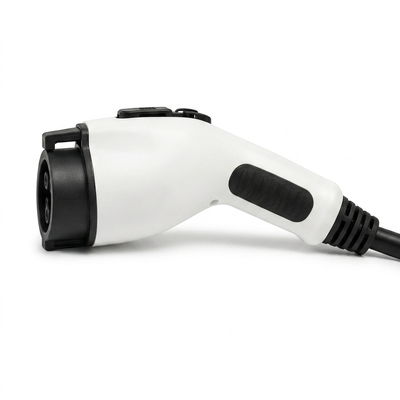

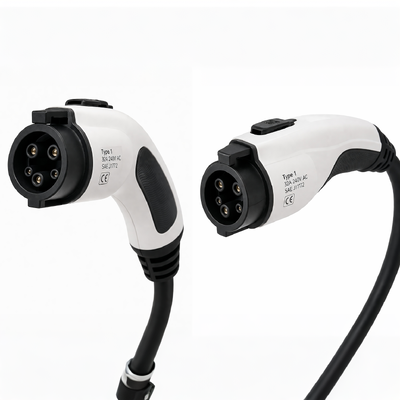

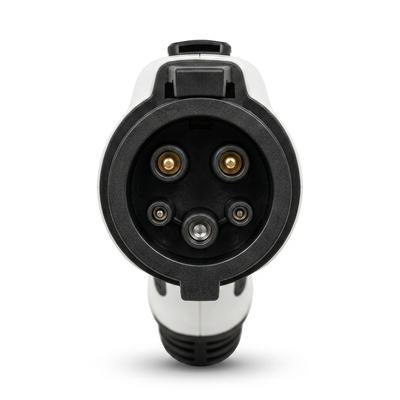

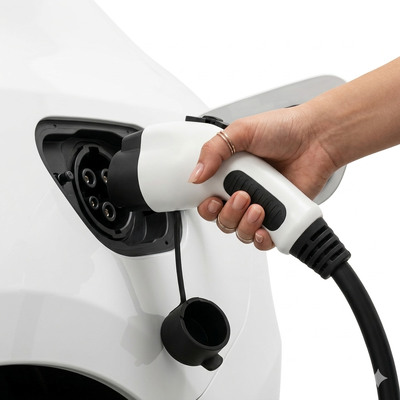

Factory Supply SAE J1772 Type 1 EV Charging Plug 32A 240V AC Connector for Electric Vehicle Charging
Product Definition
This Type 1 EV Charging Connector (SAE J1772) is designed for reliable and efficient AC charging of electric vehicles in North American markets. Built with high-quality copper alloy contacts and a durable thermoplastic housing, it ensures stable current transmission, low heat generation, and long service life. The ergonomic design provides a comfortable grip, while the reinforced cable structure enhances durability for both indoor and outdoor applications. It is widely compatible with EV charging stations, portable chargers, and home charging systems.
Key Features
✔ Stable Charging Performance – Ensures reliable current transmission with low resistance.
✔ Durable for Long-Term Use – High-strength housing and reinforced cable design.
✔ High Conductivity Contacts – Copper alloy pins reduce heat generation.
✔ Ergonomic Design – Easy to handle and plug/unplug.
✔ Wide Compatibility – Suitable for most Type 1 EVs and charging stations.
✔ OEM / ODM Supported – Custom cable length, logo, and packaging available.
Technical Parameters for Type 2 EV Charging Cable
| Item | Specification |
| Product Type | Type 1 EV Charging Connector |
| Standard | SAE J1772 |
| Rated Current | 16A / 32A |
| Rated Voltage | 240V AC |
| Max Power | 7.4kW |
| Number of Pins | 5 Pins |
| Protection Rating | IP54 / IP67 |
| Contact Material | Copper Alloy (Silver Plated) |
| Housing Material | Thermoplastic |
| Cable Length | Customizable |
| Operating Temperature | -30°C to +50°C |
| Application | EV Charging |
The Type 1 EV Charging Connector is widely used in:
Note: It is ideal for electric vehicle manufacturers, charging station providers, and energy solution integrators.
FAQ
1. Is this Type 1 connector compatible with all EVs?
Re: This connector follows the SAE J1772 (Type 1) standard and is compatible with most electric vehicles in North America and regions using Type 1 charging systems. Please confirm your vehicle charging standard before purchasing.
2. What is the maximum charging capacity?
Re: The connector supports up to 32A and 240V AC, with a maximum power output of 7.4kW. Actual charging performance may vary depending on your charging station and vehicle specifications.
3. Can you customize cable length and branding?
Re: Yes, we provide OEM and ODM services, including custom cable length, logo printing, and packaging design to meet your branding and project requirements.
4. Is this connector suitable for outdoor use?
Re: Yes, the connector is designed for both indoor and outdoor applications. It features durable materials and optional IP54/IP67 protection rating to ensure reliable performance in various environments.
5. How do you ensure product quality?
Re: All products undergo strict quality control processes, including electrical testing, plug-in durability tests, and temperature rise tests to ensure safety and long-term reliability.
Key Words & Tags
Type 1 EV Charging Plug, SAE J1772 Connector, EV Charger Cable 32A, Electric Vehicle Charging Connector, EV Charger, Type 1 Connector, SAE J1772 Plug, EV Charging Gun Type 1, AC EV Charging Plug
Inquiry Guidance
Looking for a reliable EV charging connector supplier? Contact us now for samples, pricing, and OEM solutions.
