Product Details:
Payment & Shipping Terms:
|
| Product Type: | Electric Forklift Battery Connector | Connector Gender: | Male (Plug) / Female (Receptacle) |
|---|---|---|---|
| Wire Gauge: | 80A: 6AWG–4AWG 160A: 4AWG–2AWG 320A: 1/0AWG–2/0AWG | Material: | Copper, Nickel-plated |
| Current Rating: | 80A, 160A, 320A | Voltage Rating: | 12V–48V / 80V DC |
| Mounting Type: | DIN Rail / Bolt-on | Polarity: | Single Pole (power) + Auxiliary Options |

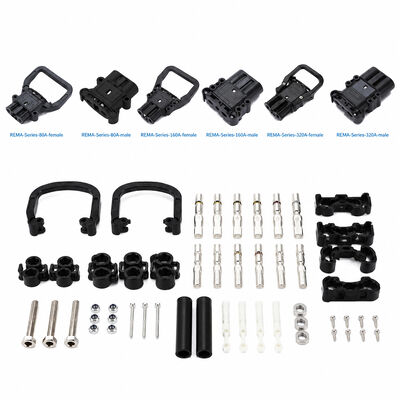

| Kit Contents: | Male Housing, Female Housing With Handle, Silver Terminals, Auxiliary Contacts, Mounting Plates, Screws & Accessories | Customization: | Available For Specific Current, Cable Size, And Branding |
| Application Fields: | Electric Forklift, Industrial Battery Packs |
Product Definition

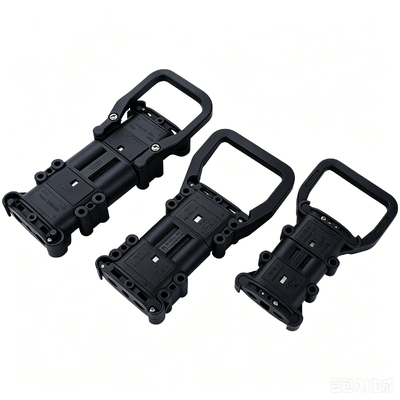

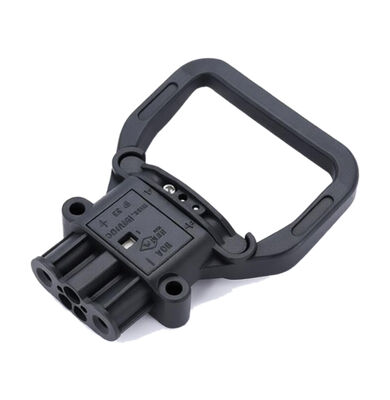

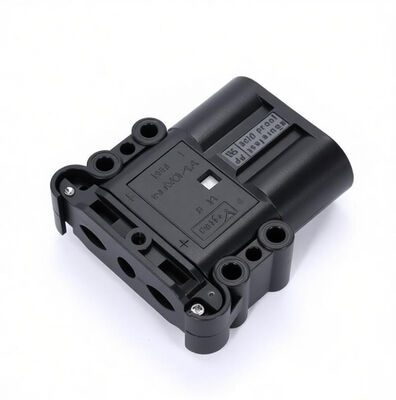

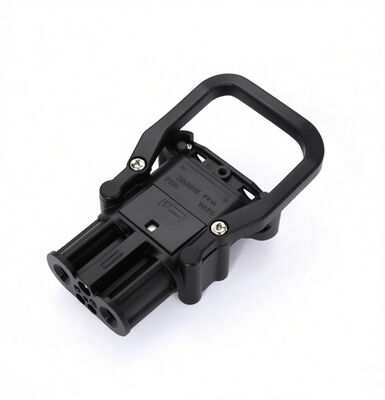

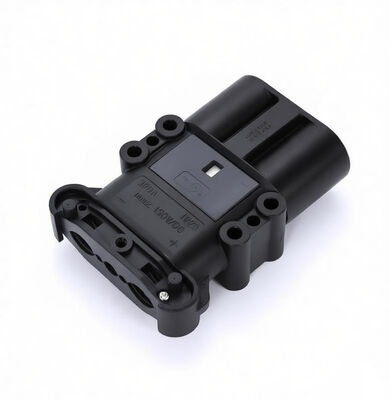

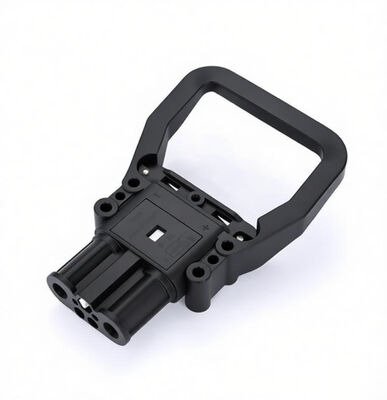

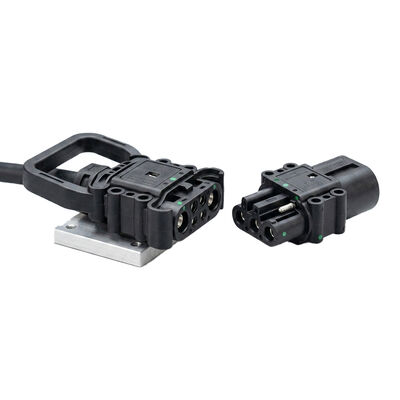

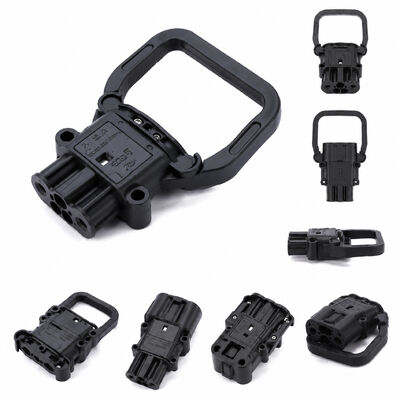

The REMA DIN Series Heavy Duty Battery Connector Kit is designed for industrial applications, providing reliable, high-current connections for electric forklifts and other battery-powered vehicles. Rated for 80A to 320A, this connector ensures safety, durability, and consistent performance under heavy load conditions.
Key Features & Benefits
High current capacity: 80A–320A suitable for multiple industrial battery configurations
Heavy duty construction with nickel-plated copper contacts for corrosion resistance
DIN mounting design for secure and standardized installation
Easy plug-and-play installation, reducing maintenance downtime
Compact and robust design for long-lasting reliability in harsh industrial environments

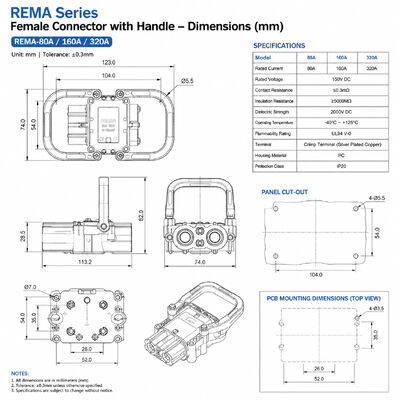

Technical Parameters
| Parameter | Specification |
| Series | REMA (DIN Type) |
| Voltage Rating | 12V–48V / 80V DC |
| Wire Range | 80A: 6AWG–4AWG 160A: 4AWG–2AWG 320A: 1/0AWG–2/0AWG |
| Contact Material | Nickel-plated Copper |
| Housing Material | High-strength Engineering Plastic |
| Insulation Material | High-grade plastic, UL94 V-0 |
| Mounting | DIN rail / Bolt-on |
| Operating Temperature | -40°C to 85°C |
| IP Rating | IP20 / IP40 (depending on assembly) |
| Standard | DIN VDE 0623 / EN 1175 |
| Applications | Electric forklift, Industrial battery packs |

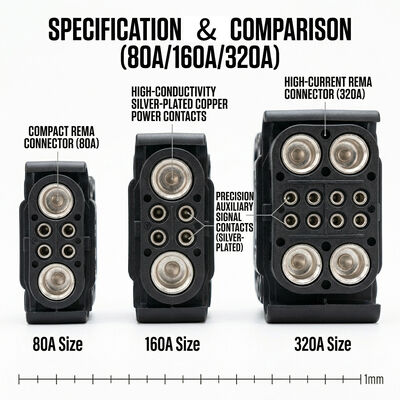

3 Type Current Comparisons
| Object Values | Comparisons | ||
| Current Options | 80A | 160A | 320A |
| Rated Current | 80A | 160A | 320A |
| Rated Voltage | 150V | 150V | 150V |
| Terminal Material | Tinned Silver-Plated Copper | Tinned Silver-Plated Copper | Tinned Silver-Plated Copper |
| Housing Material | Flame-Retardant PA | Flame-Retardant PA | Flame-Retardant PA |
| Protection Class | IP23 | IP23 | IP23 |
| Flammability Rating | UL94V-0 | UL94V-0 | UL94V-0 |
| Operating Temp. (°C) | -20°C ~ 105°C | -20°C ~ 105°C | -20°C ~ 105°C |
| Cable Size (mm²) | 16~25 mm² | 35~50 mm² | 50~70 mm² |

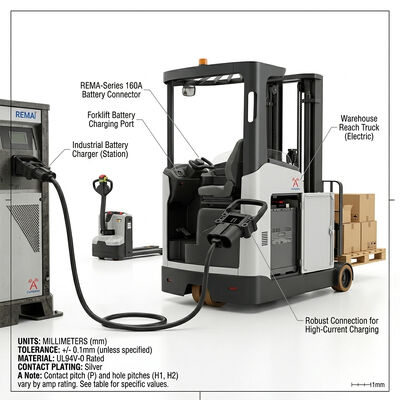

Application Scenoris
Frequently Asking Questions(FAQ)
Q1: What current ratings are available for this connector?
A1: 80A, 160A, and 320A.
Q2: Can this connector be used outdoors?
A2: It's suitable for indoor industrial environments. For outdoor use, additional IP-rated housing is recommended.
Q3: Is it compatible with standard REMA plugs?
A3: Yes, fully compatible with DIN-type REMA battery connectors.
Q4: What is the recommended installation method?
A4: DIN rail or bolt-on installation ensures secure and stable connection.
Q5: How resistant is it to corrosion?
A5: Nickel-plated copper contacts provide excellent corrosion resistance in industrial settings.
