50A High Power Floating Connectors IP67 Waterproof 2 3 11 Pin EV Plug for Electric Scooter Motorcycle Charging

50A High Power Floating Connectors IP67 Waterproof 2 3 11 Pin EV Plug for Electric Scooter Motorcycle Charging

Product Definition

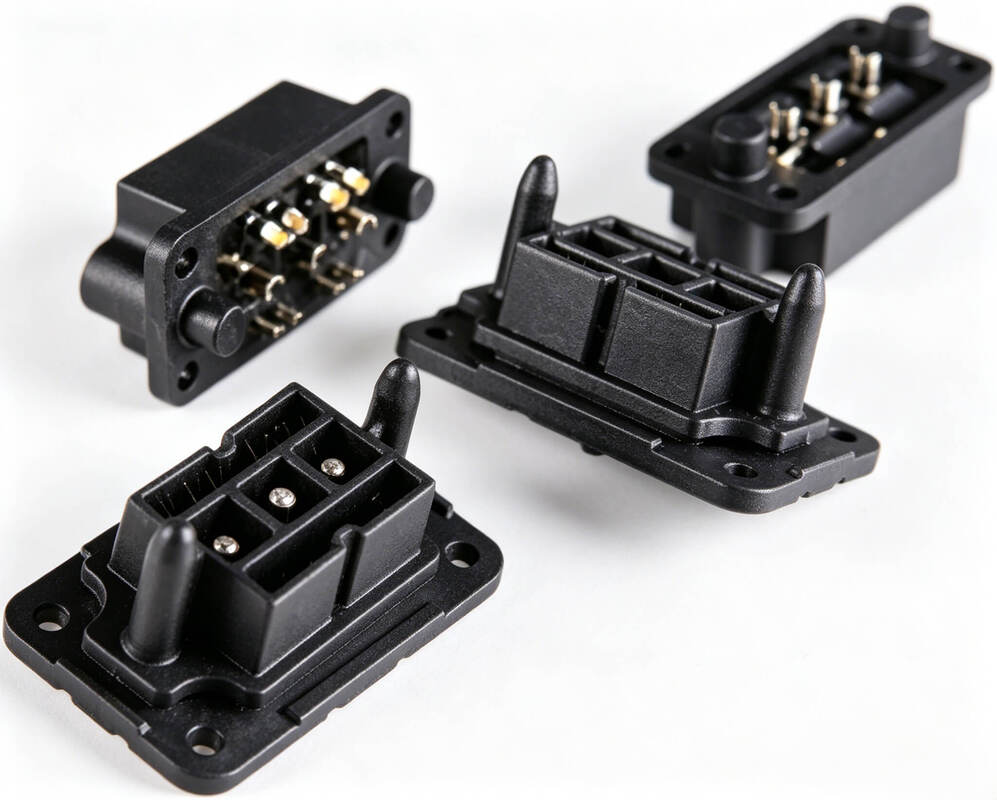

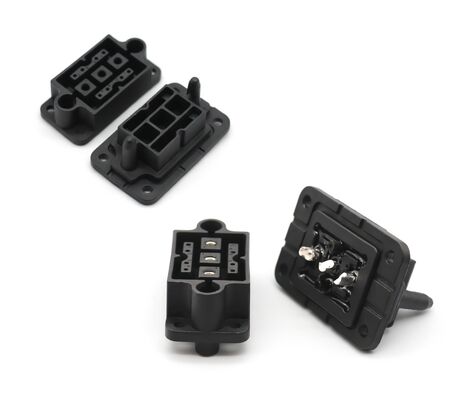

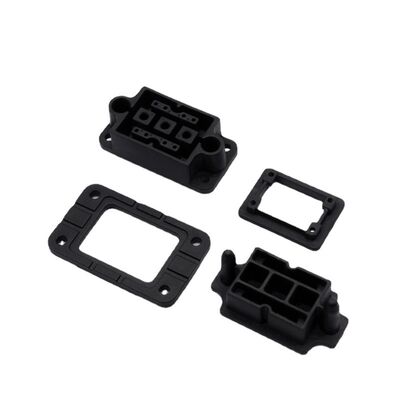

The Floating High-Power EV Connector is a robust, panel-mount high-current connector designed for electric vehicles and new energy applications. Featuring a unique floating structure, it effectively compensates for installation misalignment and vibration, ensuring reliable high-power transmission in demanding environments. Available in 2, 3, and 11-pin configurations, it supports continuous currents from 30A to 50A.

Key Features

1. Floating Design: Built-in floating mechanism absorbs misalignment and vibration, significantly improving connection stability and service life.
2. High Current Capacity: Supports 30–50A continuous current, ideal for high-power EV applications.
3. Excellent Protection: IP67 waterproof & dustproof rating + UL94 V0 flame retardant rating.
4. Premium Materials: High-conductivity copper pins with gold/silver plating for superior conductivity and corrosion resistance.
5. Rugged Construction: Resistant to shock, vibration, high temperature, humidity, oil, and corrosion.
6. Easy Installation: Panel mount + assembly type, suitable for quick integration.
7. Wide Compatibility: Designed for electric motorcycles, electric scooters, shared e-bikes, new energy vehicles, and charging infrastructure.

Technical Specifications: Floating High-Power EV Connector

Application Scenarios

• Electric motorcycles and scooters (high-power battery connection)
• Shared electric bicycles / e-scooters
• New energy vehicles (low-voltage high-current systems)
• Charging piles and charging stations
• Energy storage systems
• Marine and other vibration-heavy environments

Connector & Cable Assembly FAQ

Q1: What is the Floating High Power EV Connector?

A: It is a panel-mount high-current connector specially designed for electric vehicles. With a unique floating structure, it compensates for installation misalignment and absorbs vibration, providing stable 30-50A power transmission in harsh environments. Available in 2-pin, 3-pin, and 11-pin versions.

Q2: What is the main advantage of the “Floating” design?

A: The floating mechanism allows the connector to move slightly in X/Y directions, effectively reducing stress caused by misalignment during assembly and vibration during vehicle operation. This greatly improves connection reliability and extends service life compared to traditional fixed connectors.

Q3: What is the maximum continuous current this connector can handle?

A: It supports 30A to 50A continuous current, making it suitable for high-power battery connections in electric motorcycles, scooters, and new energy vehicles.

Q4: What is the waterproof and protection rating?

A: IP67 waterproof and dustproof rating (protected against temporary immersion) and UL94 V0 flame retardant rating. It also resists high temperature, oil, corrosion, shock, and vibration.

Q5: How much misalignment can the floating structure tolerate?

A: The floating design provides good tolerance for installation deviation (typical automotive-grade floating range). It significantly reduces assembly difficulty and contact failure on fast production lines.
