Product Details:
Payment & Shipping Terms:
|
| Product Type: | E-bike Power Connector | Connector Gender: | Male (Plug) / Female (Receptacle) |
|---|---|---|---|
| Pin Configurations: | 2+0 / 2+3 / 2+5 / 2+1+3 / 2+1+5 Pins | Contact Material: | Brass With Gold Plating |

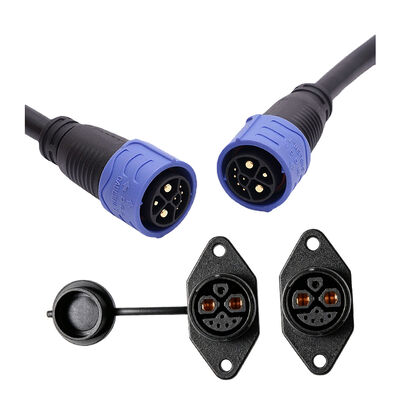

| Mounting Type (Female): | Square Flange / Diamond Flange（4-hole/2-hole) | Suitable Cable Type: | Shielded / Unshielded Power Cable |

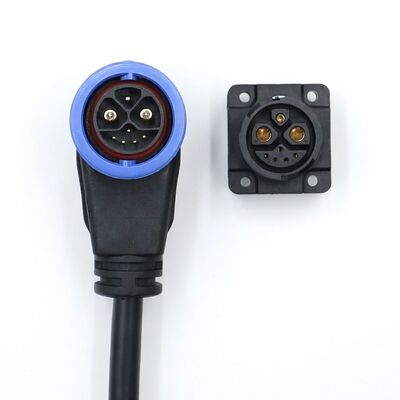

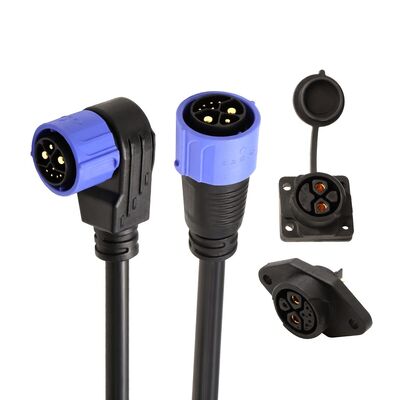

| Plug Type: | Straight / Elbow-angle / Panel Mount Versions | Customize: | Custom Cable Length And Wire Gauge |
| Application: | Electric Motorcycles & E-scooters, New Energy Vehicle Charging Piles |
Product Overview
The M25 IP67 Waterproof 50A EV Charging Connector is a high-performance power connection solution designed for electric motorcycles, e-scooters, and light electric vehicles.
Built with industrial-grade sealing technology and high-current copper contacts, it ensures stable power transmission even in harsh outdoor environments such as rain, dust, vibration, and temperature fluctuations.
With flexible 2–8 pin configurations, this connector supports both power and signal integration, making it ideal for modern electric mobility systems and energy applications.
Key Features & Benefits

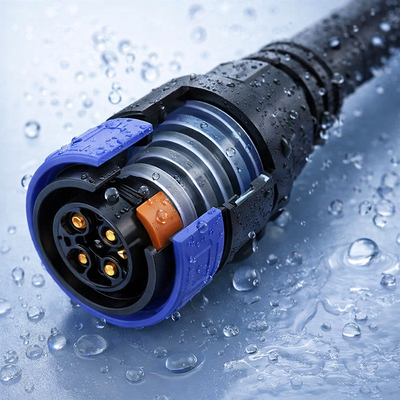

✔ IP67 Waterproof & Dustproof Protection
Fully sealed structure ensures reliable operation in outdoor EV charging environments, preventing water ingress and corrosion.
✔ 50A High Current Capacity
Supports continuous high-load charging with low resistance and minimal heat generation.
✔ Multi-Pin Flexible Design (2–8 Pin)
Allows combined power + signal transmission for smart EV systems.
✔ Gold-Plated Copper Contacts
Ensures stable conductivity, low contact resistance, and long service life.
✔ High Durability Housing
Engineered plastic shell with flame-retardant UL94 V-0 material for safety and mechanical strength.
✔ Plug-and-Play & Customizable
Supports cable length, pin layout, and mounting structure customization.

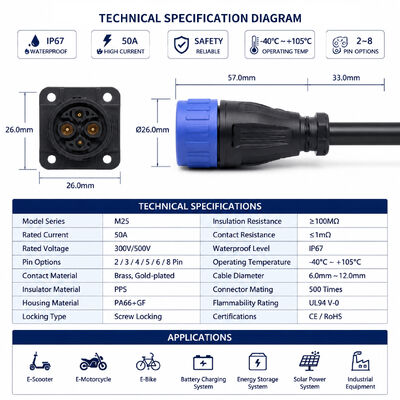

Technical Parameters
| Parameter | Specification |
| Model Series | M25 Series |
| Rated Current | 30A–50A Continuous |
| Voltage Rating | Up to 300V–600V (optional design dependent) |
| Waterproof Level | IP67 |

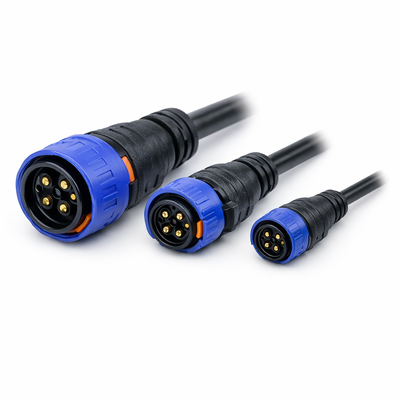

| Pin Options | 2 / 3 / 4 / 5 / 6 / 8 Pin |
| Contact Material | Brass, Gold-Plated |
| Housing Material | PA66 / Engineering Plastic |
| Operating Temperature | -40°C to +105°C |
| Cable Type | Power / Signal Hybrid Cable |
| Mounting Type | Inline / Panel Mount / Flange |
| Locking Type | Push-fit / Screw-lock (optional) |
| Application Fileds | E-bikes, Energy Systems(ESS), Industrial Applications, Environmental Use |
Application Scenoris

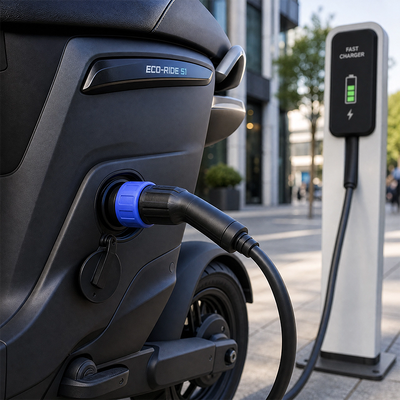

🚲 Electric Mobility
⚡ Energy Systems
🏭 Industrial Applications
🌧 Harsh Environment Use
Frequently Asking Questions(FAQ)
Q1: Is the M25 connector fully waterproof for outdoor EV use?
A1: Yes. It is rated IP67, meaning it is protected against dust ingress and temporary water immersion, making it suitable for outdoor charging environments.
Q2: Can this connector handle continuous 50A current safely?
A2: Yes. It uses low-resistance gold-plated contacts designed for continuous 30A–50A operation with controlled heat dissipation.
Q3: Can I customize pin configuration and cable length?
A3: Yes. The M25 series supports full customization including 2–8 pins, cable length, wire gauge, and housing type.
Q4: What is the main difference between M25 and smaller connectors?
A4: M25 provides higher current capacity (up to 50A), stronger waterproof performance, and better mechanical durability for EV and industrial applications.
Q5: Is it suitable for fast-charging electric scooters?
A5: Yes, it is designed for medium-to-high current EV charging systems including fast charging for light electric vehicles.
