Product Details:
Payment & Shipping Terms:
|
| Color: | Black (standard) | Connector Type: | Male (plug) + Female (socket) |
|---|---|---|---|

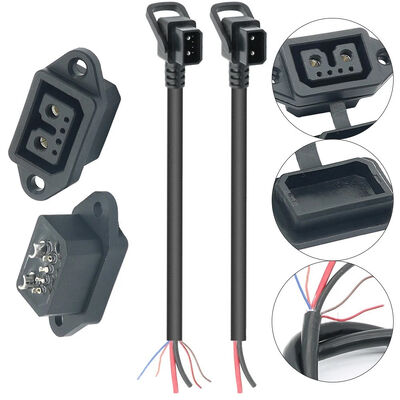

| Mounting: | Panel / Cable Mount | Cable Exit: | Available With Pre-wired Cable Or Without |
| Protection: | Basic Dust And Splash Resistance |
Product Overview

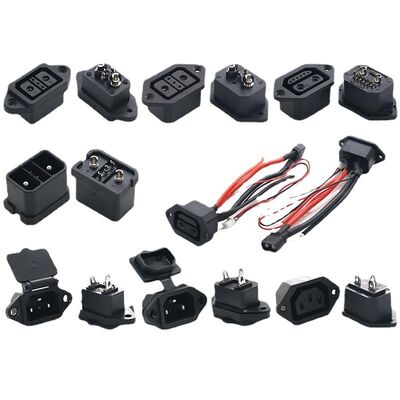

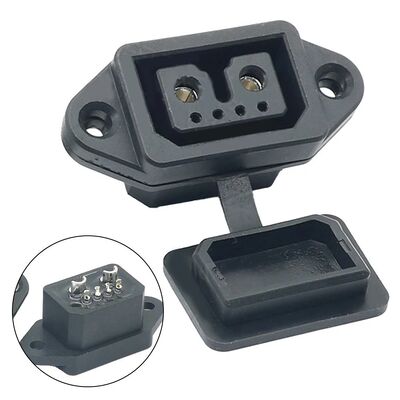

This 40A 500V Waterproof LEV Charging Connector is a high-reliability solution for Light Electric Vehicles (LEVs), e-bikes, and AGVs. It features a 2+4 pin design (2 power + 4 signal) for safe, intelligent battery charging.
Key Features & Benifits
Technical Specifications
| Technical Feature | Specification Details |
| Product Series | PINZi 2+4 Series |
| Connector Type | LEV Charging Male and Female Socket / Receptacle |
| Peak Current (Instantaneous) | 50A |
| Rated Current | 40A |
| Rated Voltage | 500V DC |
| Contact Resistance | ≤ 5mΩ Max |
| Insulation Resistance | ≥ 1000mΩ |
| Operating Temperature | -20℃ ~ +65℃ |
| Mating Cycles (Mechanical Life) | ≥ 5,000 times |
| PIN Configuration | 2 Power Pins + 4 Signal Pins (BMS Integrated) |
| Mounting Hole Pitch | 40 mm (as per drawing dimensions) |
| Panel Cutout Width | 50 mm (total flange length) |
Common Applications
Ideal for e-scooters, e-motorcycles, and intelligent charging stations.
