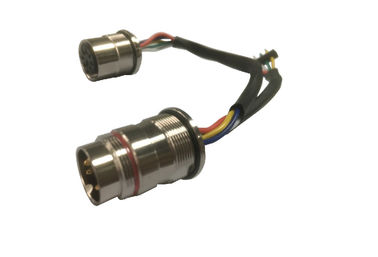

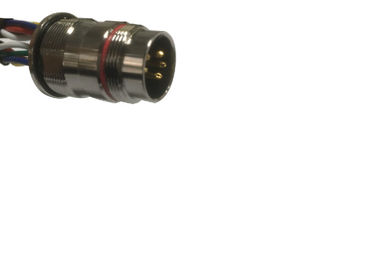

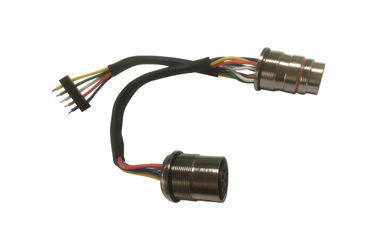

12 Pin M12 socket type IP67 Panel Mount Circular straight waterproof AISG Connector
M12 connectors are mainly used in outdoor light boxes, construction machinery, steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, automatic production equipment, temperature transmitters, hydraulic machine tools, sensors, solenoid valves, instrumentation, pressure change transmitter, etc.
High quality AISG equivalent as Binder eries 423, 581 and Amphenol eries C091A C091D family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
Characteristics of M16 Series
| General Characteristics | |||||||||||||
| Number of contact | 2 | 3DIN | 4 | 5 | 5DIN | 6DIN | 7 | 7DIN | 8DIN | 12 | 14 | 19 | 24 |
| Locking system | screw M16*0.75 | ||||||||||||
| Termination | solder, moulded on cable | ||||||||||||
| Wire guage in mm² | max 0.75 | max 0.25 | 0.14 | ||||||||||
| Wire guage in AWG | max 20 | max 24 | 26 | ||||||||||
| Shell protection | IP67/IP68 | ||||||||||||
| Mechanical operation | >500 mating cycles | ||||||||||||
| Upper temperature | +85℃ | ||||||||||||
| Lower temperature | -25℃ | ||||||||||||
| Electrical Characteristics | |||||||||||||
| Rated voltage | 250V | 60V | 250V | 125V | 60V | ||||||||
| Test voltage | 1750V | 550V | 1750V | 910V | 550V | ||||||||
| Rated current(40℃) | 7A | 6A | 5A | 3A | 1A | ||||||||
| Pollution degree | III | ||||||||||||
| Contact resistance | ≤5mΩ | ≤3mΩ | |||||||||||
| Insulation resistance | ≥10³MΩ | ||||||||||||
| Materials | |||||||||||||
| Pin contact | CuZn | ||||||||||||
| Socket contact | CuSn | ||||||||||||
| contact plating | Au | ||||||||||||
| Upper temperature | PA66(UL 94V-0) | ||||||||||||
| Female insent | PA66(UL 94V-0) | ||||||||||||
| Material of cable jacket | PVC or PUR | ||||||||||||
| Screw | CuZn | ||||||||||||
| Nut | CuZn | ||||||||||||
