Product Details:
Payment & Shipping Terms:
|
| Application: | Electrical Product | Type: | Circular |
|---|---|---|---|
| Housing Material: | Brass | Contact Type: | Solder |
| Contact Material: | Gold Plated | Protection Class: | IP50 |
| High Light: | M8 IP67 Waterproof Connector,M12 IP67 Waterproof Connector,IP67 Waterproof AISG Connector |
||

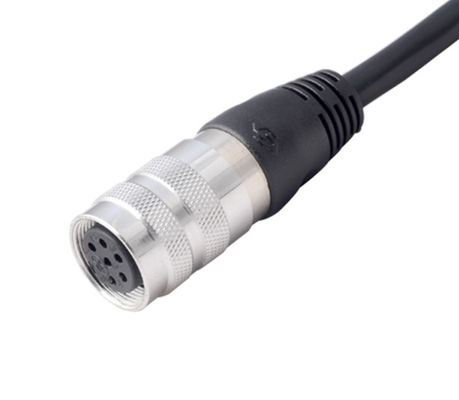

M5 M8 M12 signal connector sensor cable 3 4 5 8 12 pin custom IP67 Waterproof Connector with Cable
M12 connector overmodling cable assembley
360°EMC shielding is available for option.
TPU and PVC cable for option
Cable length: Base on customer requirement
IP Rate: IP67
Operating voltage 250V/60V/30V; Current range: 4A, 2A, 1.5A
Anti-vibration locking screw design
| Number | M12 straight / circular connector |
| Size/Series | M5 M8 M12 Connector |
| Shell Style/Model |
Plug Socket |
| Connector Locking System | Screw |
| Housing Material | Brass shell |
| Configuration | Brass (gold plated) |
| Contact Type | Solder |
| Endurance (Shell) | 100 mating cycles |
| Temp (min) | -25 deg |
| Temp (max) | 80 deg C |
| IP Rating | 67 |
