Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type

Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type
Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type

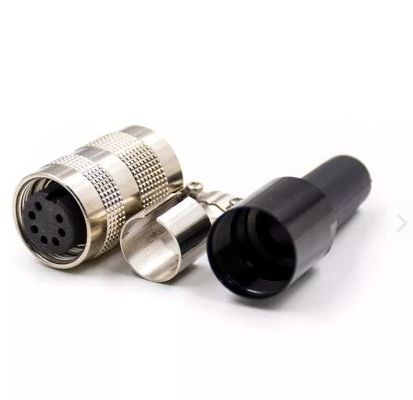

Large Image :  Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB Panel Mount Solder Type

Product Details:
Place of Origin: CHINA
Brand Name: RITIAN
Certification: CE
Model Number: M16 Aviation plug connector
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: neutral package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Model: M16 Cable Gender: Male / Female
Number Of Pin: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin Rated Current: 7A For 2/3 Pin, 6A For 4/5 Pin, 3A For 12/14/19 Pin,
Rated Voltage: 250V For 2/3/4/5 Pin, 60V For 5/6/7/8/12/14/19/24pin Orientation: Straight / Right Angle
Mounting Type: PCB Mount / Panel Mount / Cable Insulation Resistance: ≥100 MΩ
IP Rating: IP67 / IP68 Termination: Screw-joint / Solder Type
High Light:

Din Ret Control Cable DB9 Connector

,

IP68 M16 AISG DB9 Connector

,

PCB Panel Mount AISG Connector

Din Ret Control Cable AISG DB9 Connector IP68 M16 PCB panel mount solder type stright angle connector









Advantages :
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders






Series
M16 Connector
Number of Contacts
2 / 3 / 4 / 5 / 6 / 8 / 12 / 14 / 19 / 24 Pin
Gender
Male / Female
Orientation
Straight / Right Angle
Termination
Screw-joint / Solder Type
Mounting Type
PCB Mount / Panel Mount / Cable
Shield
Shield / Unshielded
Shell Material
Metal / Plastic
Rated Current
3A / 5A / 7A / 10A
Operating Voltage
250V / 125V / 60V
Temperature Range
-25°C ~ + 80°C
IP Rating
IP67

Specifications:




Temperature Range

Solder,screw:-40℃/ +80℃

Screw damp,biatec:-25℃/+80℃

Moulded -25℃/+85℃

Mechnical operation >100 mating cycles

Rated voltage

Impulse voltage

60V(30V)UL

2500V

Pollution degree 3
Rated current 4A
Contact resistance ≤8mΩ
Insulation resistance ≥500MΩ
Protection degree IP67
Standard IEC61076-2-101
Material:
Contact plating Au(Gold)
Material of housing PBT/PA/CuZn(brass)
Cable material PVC/PUR (cable length customized)
Wire gauge

Solder 0.25mm(AWG24)

Screw 0.14mm-0.5mm(AWG26-20)

Biatec 0.14mm-0.38mm(AWG26-22)

LED/Shielding With or without
