M16 Male Female 8 Pin Circular Connector 360 Shielded Metal Aviation M16

Name: M16 Male Female 8 Pin Circular Connector 360 Shielded Metal Aviation M16
Brand: RITIAN
SKU: M16 circular connector
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (113 reviews)

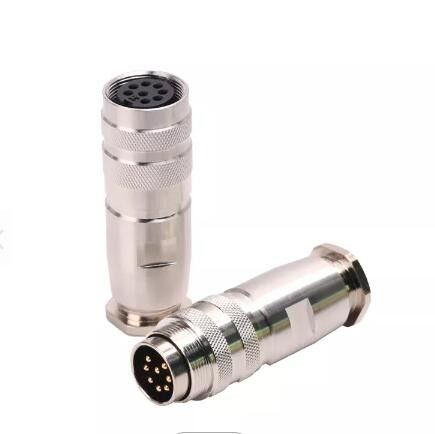

Large Image : M16 Male Female 8 Pin Circular Connector 360 Shielded Metal Aviation M16

Product Details:

Place of Origin:	CHINA
Brand Name:	RITIAN
Certification:	CE
Model Number:	M16 circular connector

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	neutral package
Delivery Time:	5-8 days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Model:	M16 8 Pin	Number Of Pin:	2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin
Rated Current:	7A For 2/3 Pin, 6A For 4/5 Pin, 3A For 12/14/19 Pin,	Rated Voltage:	250V For 2/3/4/5 Pin, 60V For 5/6/7/8/12/14/19/24pin
Orientation:	Straight	Mounting Type:	PCB Mount / Panel Mount / Cable
Insulation Resistance:	≥100 MΩ	IP Rating:	IP67
Termination:	Straight Type Metal, Automation, Sensor Connector	Application:	Aviation
High Light:	M16 Male Female AISG Connector , M16 8 Pin Circular Connector , Aviation M16 8 Pin Circular Connector

AISG Cable Ret 5M Cables Rru of Connecting for Pin Hw Port Signal 7 8 to Port Connection Jumper Control DB9 Male Female

Specifications:

item	value
Place of Origin	China
	Guangdong
Brand Name	Rigoal connector(RG)
Model Number	M16 8PIN
Type	Straight type metal
Application	aviation
Gender	Male and Female
Orientation	Straight
IP rating	IP67
Type	automation, Sensor Connector
Ambient temperatu	-25C ~ + 85°C
Standard	IEC 61076-2-105
Mating endurance	≥500
Connector insert	PA66+30%GF
Insulation resistance	≥100
Contact resistance	≤5
Contact material	copper(gold-plated)

Description
Degree of protection IP67
2 3 4 5 5A 6 7 8 12 14 16 19 24 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance
The cable material have PVC or PUR,length according to customer demand

Electrical Data
Rated voltage:60V
Insulation resistance:100MΩ
Rated current::7A
Contact resistance:≤5mΩ
Ambient temperature:-25°C~+85°C

Connector Specification
Polarity:2pin 3pins, 4pins,5pins,6pins,8pins 12pin 14pin 16pin 19pin 24pin
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated
