| Model: | M16 8 Pin | Gender: | Male / Female |
|---|---|---|---|
| Number Of Pin: | 2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin | Rated Current: | 7A For 2/3 Pin, 6A For 4/5 Pin, 3A For 12/14/19 Pin, |
| Rated Voltage: | 250V For 2/3/4/5 Pin, 60V For 5/6/7/8/12/14/19/24pin | Mounting Type: | PCB Mount / Panel Mount / Cable |
| Insulation Resistance: | ≥100 MΩ | IP Rating: | IP67 |
| Termination: | Straight Type Metal, Automation, Sensor Connector | Application: | Aviation |
| High Light: | AISG M16 Cable Assembly Connector,Cable Assembly Connector,M16 5 Pin AISG Connector |
||

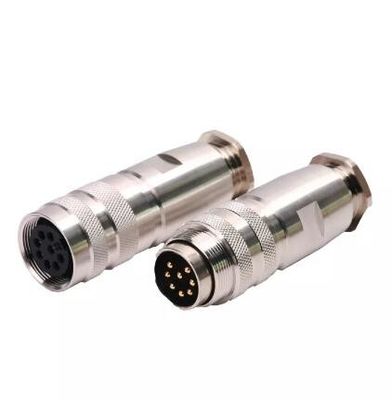

Straight wire aviation plug M16 5 pin 8 pin Male Female shielded metal Aisg Cable assembly connector
High quality AISG equivalent as Binder eries 423, 581 and Amphenol eries C091A C091D family of connectors are rugged, high-performance circular connectors with excellent EMI shielding and IP67. Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Rugged metal shells
Straight or right-angle cable connector
Right-angle cable connectors adjustable in 4 radial positions
Excellent 360° EMI shielding and IP67
Internal strain relief
2 to 24 contacts,gold(Au)- or silver(Ag)-plated
Mechanical Specifications:
Protocol : AISG 1.1 | AISG 2.0
Voltage : maximum 300 V
AISG Connector A : 8-pin DIN Female
AISG Connector A Body Style : Straight
AISG Connector A Standard : IEC 60130-9
Connector B : 9-pin D-sub Male
Data Conductor Type : 0.24 mm² (24 AWG) twisted pair
Power Conductor Type : 0.82 mm² (18 AWG) stranded
Color : Black
Specifications:
