| Model: | M16 Cable Connector | Gender: | Male / Female |
|---|---|---|---|
| Rated Current: | 7A For 2/3 Pin, 6A For 4/5 Pin, 3A For 12/14/19 Pin, | Rated Voltage: | 250V For 2/3/4/5 Pin, 60V For 5/6/7/8/12/14/19/24pin |
| Orientation: | Straight / Right Angle | Mounting Type: | PCB Mount / Panel Mount / Cable |
| Insulation Resistance: | ≥100 MΩ | IP Rating: | IP67 / IP68 |
| Termination: | Screw-joint / Solder Type | Application: | Petroleum / Chemical Industry / Iron And Steel / Electricity |
| High Light: | Flange Socket Metal AISG connector,Female Square AISG connector,M16 Solder Type AISG Connector |
||

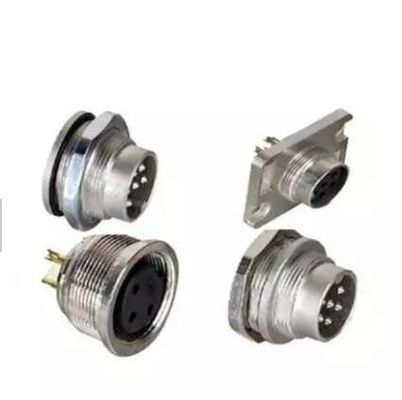

AISG Flange Socket Metal Connector M16 Solder Type 8Pin Female Square Flange AISG connector
Product Fetures
1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;
2.Resistant to welding spark,continually twist ;
3.Resistant to oil,coolant ,lubricant and emulsion;
4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;
5.Shield and un-shield Version Available with metal or plastic housing;
6.Meet IP67/IP68 waterproof requirements;
7.Temperature Range:-25℃ ~ +85℃;
Material and spefications:
| Coupling | Threaded coupling |
| shell material | Zinc alloy with nikelplate |
| insert material | PA66+ GF 20% |
| Conctact material | copper(silver plated/gold) |
| Termination | solder type |
| mating cycle | 500 |
| cable diameter | ≤ φ6.0mm ~ ≤ φ8.5mm |
| temperature | -20℃ ~ +85℃ |
Technology parameter
NO.of contacts:2pin,3pin,4pin,5pin,6pin,7pin,8pin,12pin,14pin,16pin,19pin,24pin
Rated current/voltage:5A/60V-7A/200V
Operation limit voltage(AC.V.rms):125-250
Withstanding voltage(AC.V.rms) l minute:1500
Insulation resistance(MΩ MIN.) at DC 500V:1500
Contact resistance (MΩ MAX.) AT DC 1A:7-12
Solder cup mouth aperture φ(mm):0.6-1
Solder inter diameter φ(mm):0.5-1.5
| Technology parameter | |||||||||||||
| NO.of contacts | 2 | 3 | 4 | 5 | 5A | 6 | 7 | 8 | 12 | 14 | 16 | 19 | 24 |
| Rated Current/Voltage | 7A-200V | 7A-200V | 7A-200V | 6A-200V | 5A-60V | 5A-200V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V | 5A-60V |
| Operation Limit Voltage(AC.V.rms) | 250 | 250 | 250 | 250 | 125 | 250 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| Withstanding Voltage(AC.V.rms) l Minute | 1500 | 1500 | 1500 | 500 | 1500 | 1500 | 800 | 500 | 500 | 500 | 500 | 500 | 500 |
|
Insulation Resistance (MΩ MIN.) at DC 500V |
1500 | 1500 | 1500 | 1500 | 1000 | 1500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
|
Contact Resistance (MΩ MAX.) AT DC 1A |
7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 10 | 10 | 10 | 10 | 12 |
| Solder Cup Mouth Aperture | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.6 |
| Solder Inter Diameter | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1 | 1 | 1 | 1 | 0.5 |
