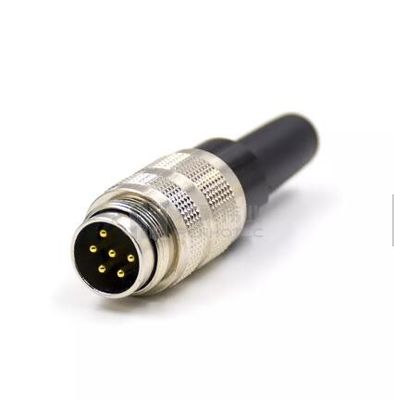

Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking

Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking
Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking

Large Image :  Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking

Product Details:
Place of Origin: CHINA
Brand Name: RITIAN
Certification: CE
Model Number: M16 Aviation plug connector
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: neutral package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Model: M16 Cable Gender: Male / Female
Number Of Pin: 2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin Rated Current: 7A For 2/3 Pin, 6A For 4/5 Pin, 3A For 12/14/19 Pin,
Rated Voltage: 250V For 2/3/4/5 Pin, 60V For 5/6/7/8/12/14/19/24pin Orientation: Straight / Right Angle
Mounting Type: PCB Mount / Panel Mount / Cable Insulation Resistance: ≥100 MΩ
IP Rating: IP67 / IP68 Termination: Screw-joint / Solder Type
High Light:

2 Pin M16 Waterproof Connector

,

MINI DIN M16 Waterproof Connector

,

M16 AISG RET Cable Connector

6Pin M16 Connector Waterproof 2 Pin Electrical Cable Docking Straight Male Plug MINI DIN AISG RET cable connector





Product Fetures

1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

2.Resistant to welding spark,continually twist ;

3.Resistant to oil,coolant ,lubricant and emulsion;

4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

5.Shield and un-shield Version Available with metal or plastic housing;

6.Meet IP67/IP68 waterproof requirements;

7.Temperature Range:-25℃ ~ +85℃;






Series
M16 Connector
Number of Contacts
2 / 3 / 4 / 5 / 6 / 8 / 12 / 14 / 19 / 24 Pin
Gender
Male / Female
Orientation
Straight / Right Angle
Termination
Screw-joint / Solder Type
Mounting Type
PCB Mount / Panel Mount / Cable
Shield
Shield / Unshielded
Shell Material
Metal / Plastic
Rated Current
3A / 5A / 7A / 10A
Operating Voltage
250V / 125V / 60V
Temperature Range
-25°C ~ + 80°C
IP Rating
IP67

Specifications:






Mateial and Specifications
Coupling Threaded coupling Termination Solder
Shell Material Zinc alloys with nikelplate
Zinc alloys with nikelplate Mating 500
PA66+GF20%
Insert Material PA66+GF20% Temperature Range -25℃ ~ +85℃
Contact Material Copper(Silverplated/Gold) Cable Diameter ≤Φ6.0mm ~ ≤Φ8.5mm







Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking 0Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking 1Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking 2Straight Male Plug MINI DIN M16 Waterproof Connector 6 Pin 2 Pin Docking 3
