Product Details:
Payment & Shipping Terms:
|
| Type: | DIN | Gender: | Male |
|---|---|---|---|
| Number Of Pin: | 2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 24 Pin | Rated Current: | 5A |
| Rated Voltage: | 60V | Orientation: | Straight / Right Angle |
| Wire Gauge: | AWG26 | Mating Types: | >100 Times |
| Highlight: | IP67 M16 Waterproof Connector,DIN AISG M16 Waterproof Connector,M16 Waterproof AISG Connector |
||

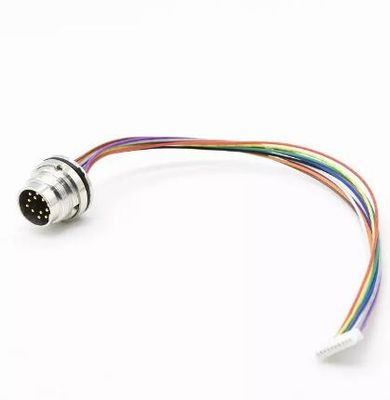

DIN AISG Customized 12 Pin IP67 Male And Female Socket Waterproof M16 Connector
Product Fetures
1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;
2.Resistant to welding spark,continually twist ;
3.Resistant to oil,coolant ,lubricant and emulsion;
4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;
5.Shield and un-shield Version Available with metal or plastic housing;
6.Meet IP67/IP68 waterproof requirements;
7.Temperature Range:-25℃ ~ +85℃;
Specifications:
| Mateial and Specifications | |||
| Coupling | Threaded coupling | Termination | Solder |
| Shell Material | Zinc alloys with nikelplate | ||
| Zinc alloys with nikelplate | Mating | 500 | |
| PA66+GF20% | |||
| Insert Material | PA66+GF20% | Temperature Range | -25℃ ~ +85℃ |
| Contact Material | Copper(Silverplated/Gold) | Cable Diameter | ≤Φ6.0mm ~ ≤Φ8.5mm |
