Product Details:
Payment & Shipping Terms:
|
| Model: | Straight Right Angle M8 Connector | Gender: | Male Female |
|---|---|---|---|
| Number Of Pin: | M8 4 Pin | Rated Current: | 4A |
| Shell Material: | Plastic And Brass Alloy | Terminal: | Screw Terminal |
| Material: | TPU | Mating Types: | >500 Times |
| IP Rating: | IP67 | Application: | Auotomative ,sensor, Actuator, Encoder,servo Motor,camera |
| High Light: | TPU M8 Sensor Connector,IP67 M8 Sensor Connector,Screw Terminal M8 Waterproof Connector |
||

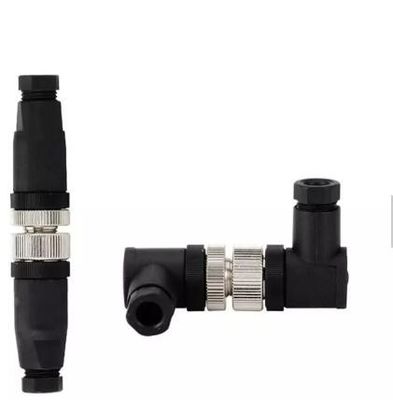

IP67 A type male female straight screw threaded plug coupling M8 sensor waterproof connector
Product Fetures
Model: M12
Number of Pins: 3pole 4pole 5pole 8pole 12pole
Cable Outlet: 4~7mm (PG7)/PG9 available
Connector Type: Male/Female Straight/Right Angle (Optional)
Coupling: Threaded Coupling
Termination: Screw
Wire Size: 0.14-0.5mm (AWG 26-20)
IP Rating: IP67
Rated Voltage: 250V (4 Pin): 60V (5 Pin) 30V (8 Pin)
Withstand Voltage: 2500V (4 Pin) 1500V (5 Pin) 800V (8 Pin)
Rated Current: 4A (4/5 Pin) 2A (8 Pin)
Operating Temperature: -25°C-85°C
Shell Color: Black
Contact Resistance: ≤3 Ohm
Insulation Divison: Ⅲ
Over Voltage Protection Level: Ⅱ
Quantity: 1 Pc
Waterproof screw straight angle M12 connector
| Shell material: | copper/ Zinc |
| Core material: | PA66 |
| overmold material | PVC/ TPU |
| Terminal material | phosphor copper |
| Temperature | -40-80c |
| insulation resistance: | ≥100 MΩ |
| contact resistance: | <=10 MΩ |
| Degree of protection | IP67/ IP68 |
| Mating cycle | >500 mating cycles |
| cable diameter | φ4-φ8 |
| termination | screw |
| shell color | black |
