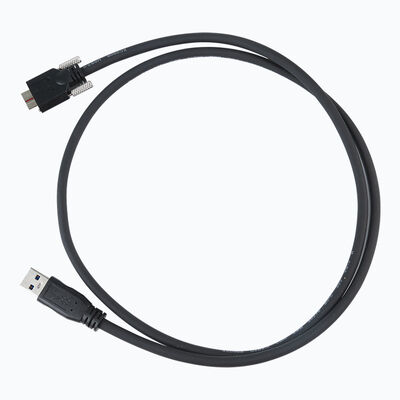

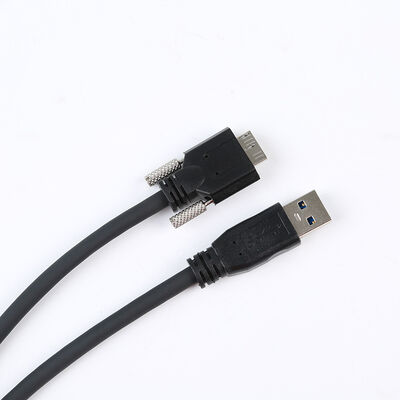

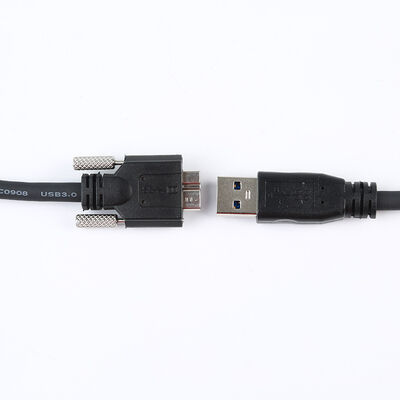

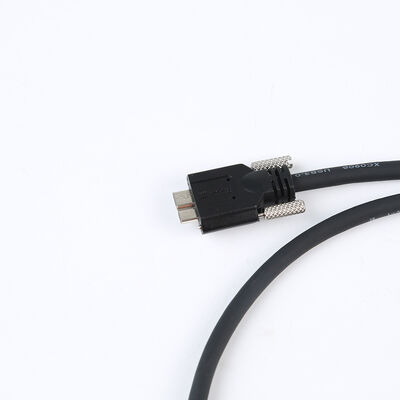

USB 3.0 Industrial Vision High-Flex Drag Chain Cable – Type-A to Micro-B with Screw Lock

USB 3.0 Industrial Vision High-Flex Drag Chain Cable – Type-A to Micro-B with Screw Lock

Product Description

This high-performance USB 3.0 industrial vision cable is engineered for demanding machine vision and automation environments. Featuring USB 3.0 Type-A to Micro-B connectors with Screw Lock (locking screws), it provides a secure, vibration-resistant connection that prevents accidental disconnection in high-motion applications.

Product Attributes

• Connector Type: USB 3.0 Type-A Male to Micro-B Male with Screw Lock
• Cable Type: High-Flex Drag Chain Cable
• Core Configuration: 12-pin 12-core
• Data Rate: Up to 5Gbps (SuperSpeed USB 3.0)
• Application: Industrial camera power, trigger, and data transmission
• Feature: Screw Lock mechanism + high-flex outer jacket for drag chain use
• Cable Category: Industrial vision high-speed cable assembly

Key Points

1. High-Flex Drag Chain Design: Exceptional flexibility and long flex life, specially built for continuous motion in cable carriers – reduces cable fatigue and downtime.
2. Secure Screw Lock Connection: Locking screws ensure rock-solid attachment even under vibration and shock, perfect for industrial environments.
3. Ultra-High Speed: Full 5Gbps USB 3.0 transmission supports high-resolution cameras with zero lag in real-time vision data.
4. Multi-Signal Integration: 12-pin 12-core structure reliably handles power supply, trigger signals, and high-speed data in one cable.
5. Industrial-Grade Reliability: EMI shielding, robust construction, and high-flex materials withstand harsh factory conditions.
6. Plug-and-Play Compatibility: Works seamlessly with standard USB 3.0 Vision industrial cameras and automation systems.

Parameter Specifications

• Specification: USB 3.0 Type-A to Micro-B with Screw Lock
• Transmission Speed: 5Gbps
• Cable Structure: 12-pin 12-core high-flex drag chain cable
• Usage: Industrial camera power supply, trigger signal, and network/data transmission
• Connector Locking: Screw Lock (anti-vibration)
• Cable Application: High-flex drag chain / cable carrier compatible

Technical Parameters

• Data Transfer Rate: 5Gbps (USB 3.0 SuperSpeed)
• Connector: USB 3.0 Type-A Male + Micro-B Male with Screw Lock
• Core Count: 12-pin 12-core
• Flex Performance: High-flex design optimized for repeated drag chain bending
• Shielding: Multi-layer EMI/RFI protection
• Power Delivery: USB bus power supported
• Compliance: USB 3.0 Vision standard compatible

Usage Scenarios

Which widely used for factory automation in automotive, electronics, packaging, food & beverage, and pharmaceutical industries.
